The thermoplastic road marking machine is professional, heavy-duty equipment designed to create bright, highly visible, and long-lasting road lines. By quickly melting solid thermoplastic paint at high temperatures (between 180°C and 210°C), it applies the material evenly to form tough, wear-resistant markings for lanes, crosswalks, curbs, and safety signs. With the ability to mark between 500 and 1500 square meters in a single day, this machine is the premier choice for roads, highways, airports, and parking areas worldwide. If you want to buy a cheap & best line striping machine, YG will be your ideal choice.
Specifications Of YG360 And YG380 Thermoplastic Road Marking Machine

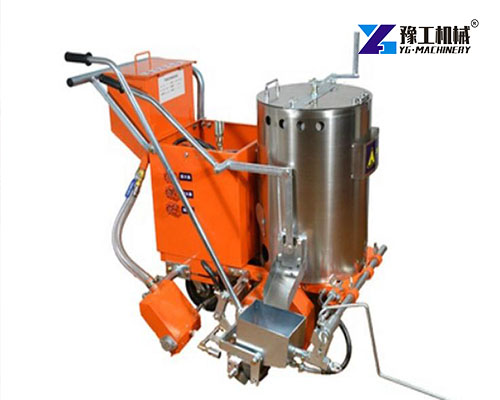

The YG360 and YG380 are manual push-type machines. They are the “key equipment” for road marking projects. They work together with a melting kettle to apply paint smoothly.
| Feature | Specification Details |
| Model Name | YG360 / YG 380 Hand-Push Type |
| Insulation Tank | Double-layer stainless steel, 100kg capacity |
| Marking Width | 50mm to 450mm (adjustable with different hoppers) |
| Standard Hopper | 150mm marking hopper included |
| Glass Bead Dispenser | Synchronous clutch with speed adjustment |
| Machine Dimensions | 1200 x 830 x 1100mm |
| Net Weight | 100kg |
| Locator System | Rear wheel locator for straight lines and easy turns |
Advanced Features Of YG380S Thermoplastic Marking Machine

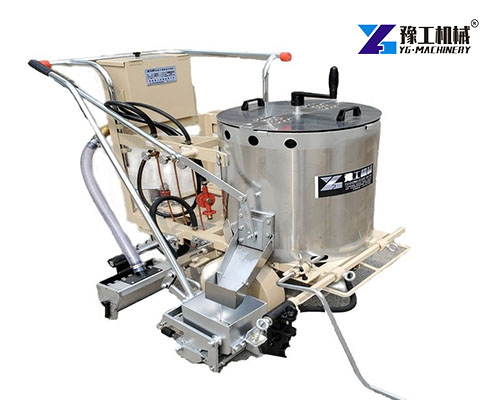

If you want to reduce physical work, the YG380S is an excellent choice. This is a high-grade thermoplastic road marking machine that uses an electric power system. It is designed to be energy-saving and very stable during construction.
·Electric Power System: It uses a 15 AH/48V lithium battery. You only need to charge it for 5 hours to work for two full days.
·Reduced Labor: Because it is electric, the workers do not get as tired as they would with a manual machine.
·Braking System: It features a drum brake that you can adjust for tightness, making the machine safer to stop.
·Large Capacity: Like the manual version, it holds 100kg of paint in a double-layer stainless steel tank.
·Accurate Application: It can mark widths from 50mm to 450mm depending on the project needs.
·Smooth Movement: The design allows for high-efficiency and accurate drawing of beautiful road lines.

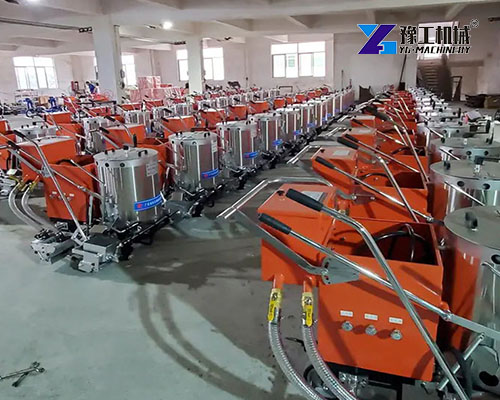

YG Gasoline Vibration Thermoplastic Marking Machine

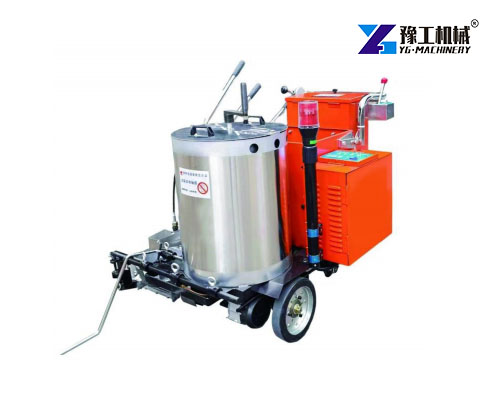

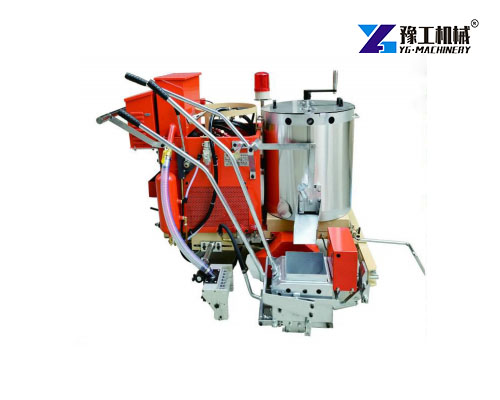

For heavy-duty work in difficult environments, YG gasoline model is the top performer. This thermoplastic road marking machine creates “vibration” or “bumped” lines. These are the lines that make a sound when a car drives over them to alert the driver.
·Powerful Engine: It uses a Honda OHV 4-stroke air-cooled engine (5.5HP).
·Smart Control: It has a German intelligent control panel for precise line shapes.
·Vibration Style: It can make dots or bumps that are 3mm to 5mm high.
·Fuel Type: This machine runs on LPG (Liquefied Petroleum Gas).
·Speed Control: It has a hydraulic stepless speed system for moving forward or backward.
·Durability: The machine is built to resist bending, impact, and wear over long periods.
·High Speed: It can travel forward at a maximum speed of 4000 meters per hour.
Essential Materials And Equipment For Road Projects
To get the best results, you need the right mix of materials. The thermoplastic road marking machine uses three main items: thermoplastic paint, primer (base oil), and glass beads.
·The Right Ratio: For every 1 ton of paint, you should use 1 bucket of primer and 4 bags of glass beads.
·Night Visibility: Glass beads are dropped onto the wet paint at a 45° angle. This creates a reflective surface so drivers can see the lines at night.
·Cleaning Tools: Before you start, you must clean the road. Use a road blower or a sweeper to remove dust, dirt, and water residue.
·Old Line Removal: If there are old lines on the road, remover to clear them away first.

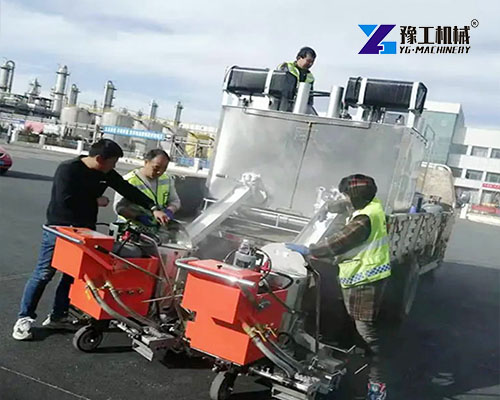

·Zebra Crossings: For special patterns like zebra crossings, you may need a specific zebra line marking machine.
Why Choose A Professional Thermoplastic Paint Machine
Choosing a high-quality thermoplastic road marking machine ensures that your road markings last for years. These machines are designed to handle high heat without breaking down. The double-layer stainless steel tanks keep the paint at the right temperature so it flows easily through the hopper.A good machine also helps you save money on materials. Because the thickness is uniform, you do not waste expensive paint. Whether you choose a manual, electric, or gasoline model, each machine is built to be simple to operate. This means you can train your team quickly and start working on your road projects immediately. If you want to buy a machine from our factory, please contact us immediately for more detailed information
