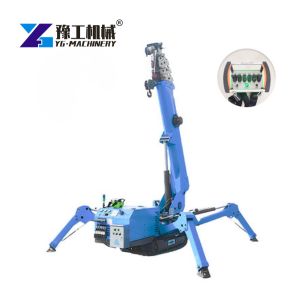

Spider crane, also known as mini crawler crane, is a compact, flexible lifting machine with spider‑style outriggers and rubber crawlers. It features small turning radius, strong passability, stable lifting, and easy transportation, widely used in narrow spaces, high‑rise construction, interior renovation, equipment installation and other working conditions where large cranes cannot enter.
YG spider cranes adopt dual‑power system (diesel + electric), multi‑section telescopic boom, independent control outriggers, and can realize safe and efficient lifting in limited space.
Small Spider Crane Parameters
| Model | YG-3t | YG-5t | YG-8t | |
| Specification | 3t | 5t | 8t | |
| Maximum working radius | 8.83m×0.15t | 14m×0.5t | 16.5m | |
| Maximum above-ground head | 9.9m×0.7t | 16.8m | 18m | |
| Winch device | Hook Speed | 0-8m/min(4 rope) | 12m/min(4 rope) | 12m/min(4 rope) |
| Rope diameter | φ8mm×45m | Φ11mm×80m | Φ11mm×80m | |
| Telescopic system | Boom Type | 5-section boom, pentagonal structure | 5-section boom, pentagonal structure | 5-section boom, pentagonal structure |
| Boom Length/Time | 3.1m-9.2m/20sec | 12.3m/54sec | 12.3m/54sec | |
| Up and down | Boom Angle/Time | 0°~78°/13sec | 0°~78°/13sec | 0°~78°/13sec |
| Slew system | Slew Angle/Speed | 0-360°continuous/60sec | 0-360°continuous/38sec | 0-360°continuous/38sec |
| Traction system | Walking Way | Hydraulic motor drives | Hydraulic motor drives | Hydraulic motor drives |
| Walking Speed | 0~2.5km/h | 0~2.5km/h | 0~2.5km/h | |
| Grade Ability | (25°)36% | (25°)36% | (25°)36% | |
| Operating system | Operation type (Boom/outrigger) | Manual operation, manual walking(remote control option) | Manual operation, manual walking(remote control option) | Manual operation, manual walking(remote control option) |
| Operating characteristics | Manual operation, remote control | Manual operation, remote control | Manual operation, remote control | |
| Transport parameters | L*W*H(mm) | 2950*980*1560 | 5000*1500*1900 | 5000*1600*2180 |
| Total weight(kg) | 2700 | 6200 | 7200 | |
YG Hot-sale 3t/5t/8t Spider Crane Models
3-Ton Spider Crane
- Max. Rated Load: 3 Tons
- Boom Sections & Length: 6 Sections /10.8 Meters
- Engine Model: Changchai EV80 (Twin- cylinder)
- Control Mode: Remote Control + Manual Operation
- Outrigger Type: Folding Outriggers (Ideal for ultra-narrow spaces)
5-Ton Spider Crane
- Max. Rated Load: 5 Tons
- Boom Sections & Length: 5 Sections / 21 Meters
- Engine Model: 490 Yunnei (55kW)
- Outrigger Type: Flat-bed Outriggers (Enhanced stability for heavy lifts)
- Control Mode: Remote Control + Manual Operation
8-Ton Spider Crane
- Max. Rated Load: 8 Tons
- Boom Sections & Length: 5 Sections / 21 Meters
- Engine Model: 490 Yunnei (55kW)
- Outrigger Type: Flat-bed Outriggers (Maximum footprint for safety)
- Control Mode: Remote Control + Manual Operation
Why Choose the YG Spider Crane Lift?
- Hybrid System: Comes standard with dual power sources to meet the needs of quiet, low-emission indoor operations and powerful outdoor work.
- Intelligent Safety Monitoring: Equipped with a torque limiter (displaying height, angle, and load data), as well as anti-tipping and outrigger alarm functions.
Highly Customizable Spider Crane Solutions

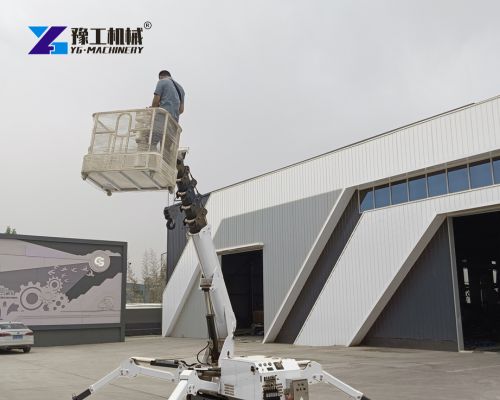

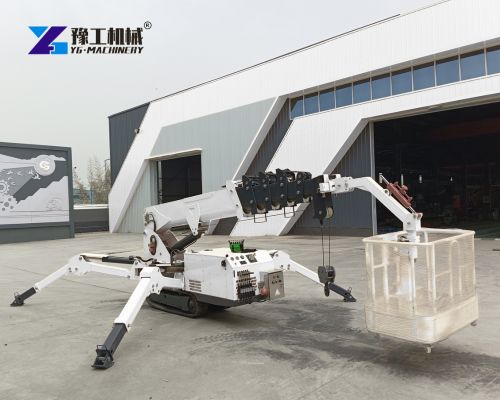

- Highly Customizable: Optional Attachments: Hydraulic jib (to expand lifting angles), work platforms, glass suction cups, forklift forks, and more.
- Localized Support: Engines can be upgraded to meet Euro 5 or EPA standards.
- Customizable Appearance: Machine colors can be customized according to a color chart.
People Frequently Asked Questions About Small Spider Crane
A: Our spider cranes are available in capacities ranging from 1.5 to 16 tons, with the 3-ton, 5-ton, and 8-ton models being our best-selling options.
A: The 3-ton spider crane, when packed in a wooden crate, measures 3480 × 880 × 2150 mm, is shipped in 6 packages, and has a gross weight of 3200 kg.
A: The 3-ton model consumes about 2.5 liters per hour, while the 5-ton and 8-ton models consume 5-8 liters per hour.
A: The all-electric spider crane takes 2-4 hours to fully charge and can operate for 6-8 hours on a full charge.
YG Spider Crane Cooperate Industrial Partner
As a premier exporter of industrial lifting equipment, our spider cranes have been successfully deployed in diverse projects worldwide. We provide more than just machinery; we deliver comprehensive logistics solutions and dedicated technical support to ensure your project’s success.
Our Primary Export Destinations Include:
- North & South America: United States, Canada, Argentina.
- Europe: Bulgaria, Portugal, Poland, Hungary.
- Middle East: Qatar, United Arab Emirates (UAE).
- Other Regions: Russia, Central Asian countries (The ‘Stans’), and more.
