Whether you’re engaged in geological core sampling, water well construction, engineering foundation drilling, or mineral resource exploration, high-performance drilling equipment is essential to ensure project efficiency, safety, and stability. YG Machinery provides a full lineup of reliable drilling rigs tailored for complex strata, harsh environments, and diverse construction requirements. YG core series includes fully hydraulic crawler drilling rig, small water well drilling rig, and core drilling rig to meet different drilling depth, diameter, mobility, and precision needs.

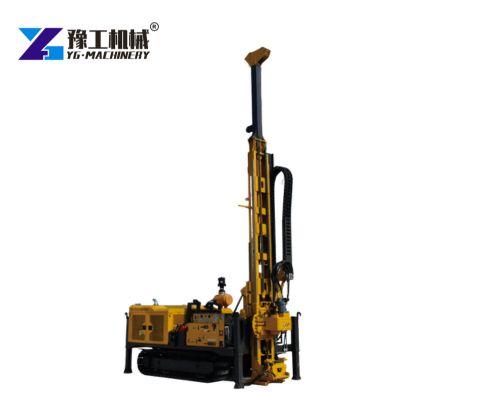

Fully Hydraulic Crawler Drilling Rig

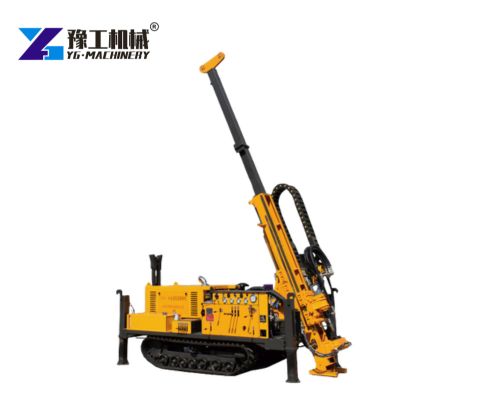

YG Series Full Hydraulic Core Drilling Machine is our newly developed high-efficiency multifunctional full-hydraulic drilling rig. With stable performance and strong environmental adaptability, it works reliably in plains, hilly areas, high-temperature, and severe cold conditions. Widely used in geological exploration, mineral survey and engineering core sampling, it is your premium, reliable choice for drilling projects.
Fully Hydraulic Crawler Drilling Rig Parameters
| Model | YG-400XL | YG-600S/GL | YG-800S/GL | YG-1000GL |
| Drilling depth | 180-400-500m | 200-600-650m | 400-800-1000m | 500-1000-1100m |
| Drilling angle | 0~90° | 45~90° | 45~90° | 45~90° |
| Max. Torque | 500N.m | 1000N.m | 1300N.m | 3500N.m |
| Rated power/speed | 78kW/ 2400r/min | 92kW/ 2400r/min | 92kW/ 2400r/min | 154kW/ 2400r/min |
| Hydraulic Mud pump flow | 30-90（L/min） | 30-90（L/min） | 90-180（L/min） | 90-180（L/min） |
| Hydraulic Mud pump power | 4-7(MPA) | 4-7(MPA) | 4-7(MPA) | 4-7(MPA) |
| Walking speed | 2.5 km/h | 3.5 km/h | 3.5 km/h | 3.5 km/h |
| Climbing angle | Max. 45° | Max. 45° | Max. 45° | Max. 45° |
| Transport Dimension | 4000*1900*1800mm | 4000*2000*1800mm | 5500*2100*2000mm | 6000*2200*2400mm |
| Weight | 4.3T | 4.5/5.5T | 6.5T | 7.5T |
Fully Hydraulic Crawler Drilling Rig Features
- Crawler chassis with strong off‑road capability
- High torque & lifting capacity for deep and large‑diameter holes
- Multi‑angle inclined drilling & long‑stroke mast
- Stable under harsh working conditions
Get Your Custom Fully Hydraulic Crawler Drilling Rig Solution

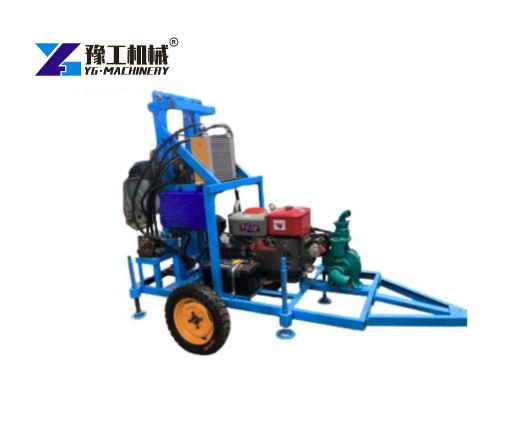

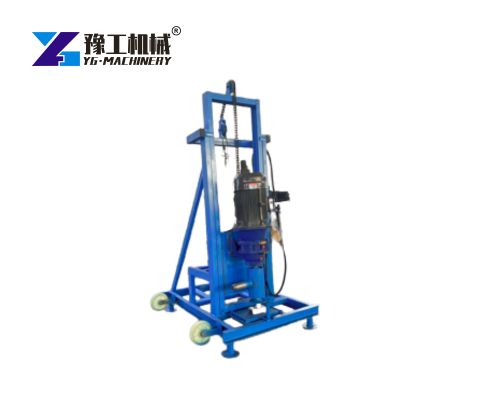

Small Water Well Drilling Rigs
A small water well drilling rig is a compact, flexible solution for civil, agricultural, and small‑scale industrial water supply. Ideal for limited spaces and quick deployment, it balances efficiency and mobility for household, farm, and community well projects.
Small Water Well Drilling Rig Parameters
| Model | HY180 | HY240 | HY350 | ZX280 | HY500 |
| Voltage | 220V | 220V | 380V | gasoline/diesel | 380V |
| Power | 1.5-2kw | 4kw | 3kw | 8HP | 5.5kw |
| Drilling hole | 80-200mm | 80-220mm | 80-350mm | 80-280mm | 80-500mm |
| Drilling depth | 80M | 100M | 100M | 120M | 120M |
| Drilling rod | Φ42mm,1.5m | Φ51mm,1.5m | Φ51mm,1.5m | Φ51mm,1.5m | Φ65mm,2m |
| Pump power | 2.2kw | 2.2kw | 2.2kw | 3.5HP | 5.5kw |
| Dimension | 0.7*0.7*2.5m | 0.7*0.7*2.5m | 0.8*0.8*2.7m | 0.8*0.8*2.7m | 1*1.5*2m |
| Weight | 120KG | 150KG | 250KG | 200KG | 600KG |
Small Water Well Drilling Rig Features
- Lightweight, portable, or compact tracked design
- Easy transportation and fast on‑site setup
- Stable performance in soil, sand, and soft to medium rock
- Suitable for fast, small‑scale well construction
Small Water Well Drilling Rig Applications
Domestic & community water wells
- Domestic & community water wells
- Farm irrigation & livestock water supply
- Emergency water supply projects
- Short‑cycle borehole drilling
Learn More About Our Small Water Well Drilling Rig Series

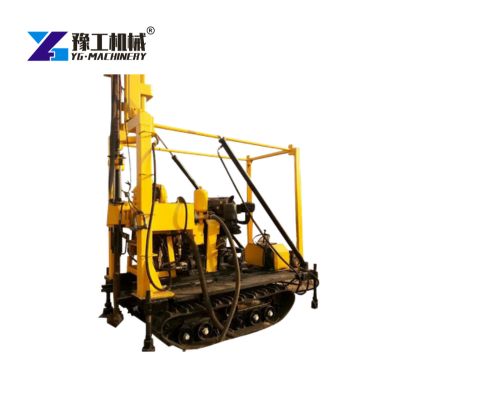

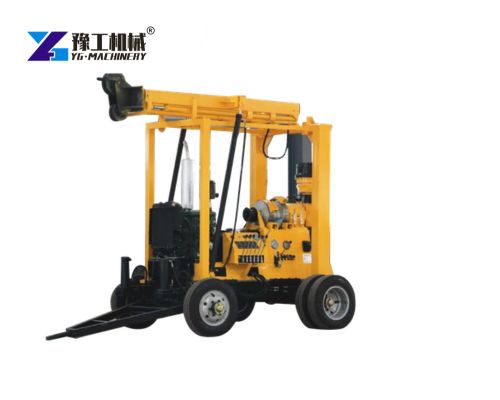

Core Drilling Rig
Core drilling rig is engineered for high-precision geological exploration, mineral resource investigation, and rock core sampling. It uses diamond or alloy bits to obtain intact core samples, supporting vertical and angled drilling for geological analysis and engineering surveys.
Core Drilling Rig Parameters
| Model | YG-130 | YG-180 | YG-200 |
| Drilling depth (m) | 130 | 180 | 200 |
| Hole diameter(mm) | 220 | 220 | 325 |
| Final hole diameter(mm) | 75 | 75 | 75 |
| Drill pipe diameter (mm) | 42-60 | 42-60 | 42-60 |
| Drilling angle (°) | 90-75 | 90-75 | 90-75 |
| Supporting power（kW） | 13.2=24P | 13.2=24P | 14.7 |
| Weight(kg) | 920 | 955 | 1150 |
| Size(mm) | 2400*950*1400 | 2400*950*1400 | 2700*950*1770 |
Core Drilling Rig Features
- High core recovery rate and precise drilling control
- Full hydraulic operation for stable feeding and rotation
- Long-stroke mast to reduce rod changes and improve efficiency
- Adjustable drilling angles for versatile exploration scenarios
- Robust structure for continuous operation in hard rock
Core Drilling Rig Applications
- Geological mapping & core sampling
- Mining exploration & ore testing
- Engineering geological investigation for bridges & high‑rises
- Dam foundation detection & grouting holes
Get A Free Quote Customize Core Drilling Rig Now
Why Choose YG Drilling Rigs?
- Stable & Powerful Power System: Equipped with internationally recognized diesel engines, ensuring consistent output in remote areas and off-grid sites.
- Full Hydraulic Control: Drilling, lifting, rotation, and supporting operations are hydraulically driven for smooth, precise control and low failure rates.
- Strong Terrain Adaptability: Crawler or compact chassis designs deliver excellent passability in mountains, deserts, and urban construction zones.
- High-Efficiency & Durable Structure: High-strength masts, optimized transmission, and reliable components extend service life and reduce downtime.
- Eco‑Friendly & Low Noise: Energy-saving systems with noise and vibration reduction meet global environmental standards.
Get Your Custom Drilling Solution
YG Machinery provides professional drilling rigs with stable performance, high efficiency, and strong adaptability for global customers in exploration, water well, and engineering projects. We offer tailored equipment recommendations based on your geological conditions, depth requirements, and site environment. Contact us now to learn more about specifications, configurations, and project solutions. WhatsApp/WeChat/Phone: +86 159 3715 2330
