Choosing the right equipment determines the quality of your road striping projects. A professional cold paint road marking machine from YG uses high-pressure airless technology to spray traffic paint without heating it. This equipment pumps paint directly from the bucket and forces it through a precise nozzle. Municipal teams and private contractors use these machines because they start fast and do not require long heating times. For heavy-duty projects, these units offer reliable pressure control to keep line width uniform even on rough asphalt or old concrete surfaces.
- Working Pressure: 8 MPa to 25 MPa for general high-pressure airless standard lines.
- Engine Options: Certified 5.5 HP gasoline engines for continuous outdoor operations.
- Paint Compatibility: Works perfectly with water-borne acrylic traffic paints and solvent-based road paints.
- Chassis Design: Heavy-duty steel frames balanced for manual pushing or line-tracking guidance.
Get Direct Factory Quote & Specifications
Cold Plastic Road Marking Machine Parameters
| Model | YG-8S | YG-8D |
| Power | 5.5HP | 5.5HP |
| Plunger Pump | Electronic Commutation | Automatic Reciprocating Reversion |
| Spray Gun Quantity | Single Gun | Two Guns |
| Operation Mode | Hydraulic Drive | Hydraulic Drive |
| Work Pressure | 8-12MPa | 8-12MPa |
| Flow Of Spray | 4.8L/min | 8L/min |
| Width Of Spray | 100-300mm | 100-450mm |
| Thickness Of Spray | 0.2-0.4mm | 0.2-0.4mm |
| Dimension | 1600mm*800mm*1200mm | 1600mm*800mm*1200mm |
| Weight | 120kg | 120kg |
Cold Spray Road Marking Machine Configuration
When working on large areas like airport runways or long highway shoulders, a professional cold spray road marking machine saves labor costs. These machines feature a hydraulic drive system or a sturdy hand-push chassis with a front locking wheel. The locking wheel keeps the machine walking in a straight line automatically. Contractors can also adjust the spray gun height to change the line width from 100 millimeters up to 450 millimeters. Our factory installs anti-clogging filters inside the pump system to prevent downtime during long working hours.
- Dual Gun Setup: Choose models with two spray guns to paint double yellow lines simultaneously.
- Glass Bead Dispenser: Automatic gravity-fed or pressurized bead drop system for night reflection.
- Smart Control Panel: Simple pressure adjustment valves that operators can learn in five minutes.
Contact YG Engineers For Model Selection

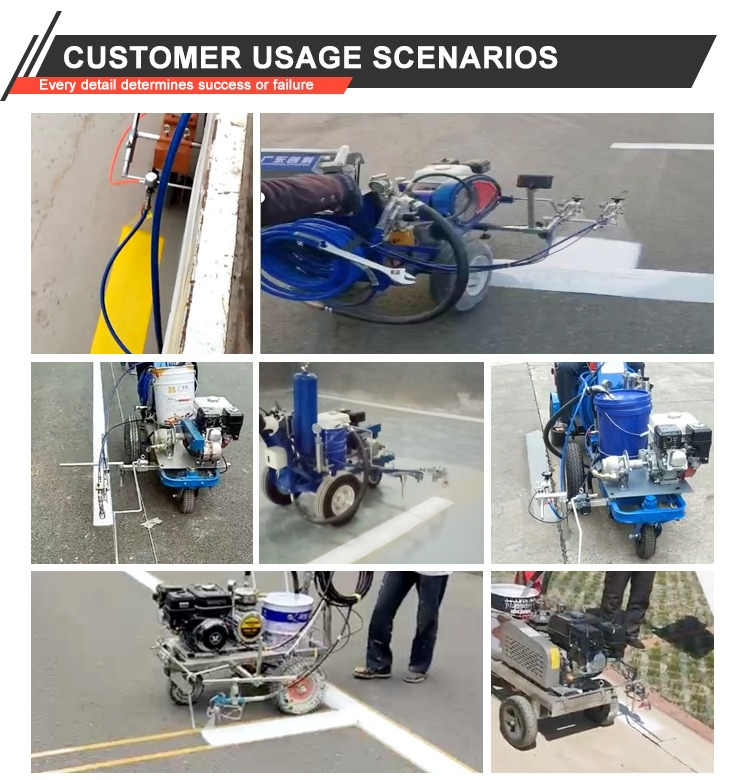

Application Scenarios For A Pavement Striping Machine
Industrial striping projects require specific machine configurations to meet different regional traffic safety standards. International procurement managers choose our heavy-duty pavement striping machine models based on project size, line width specifications, and daily output goals. By utilizing advanced hydraulic drive and professional plunger pump systems, these units deliver stable performance across varying global climates.
Urban Roadways and Crosswalks (Southeast Asia Markets)
Municipal contractors in countries like the Philippines frequently deploy the YG-8S model for city line maintenance. The electronic commutation plunger pump ensures a steady 8-12MPa working pressure, making it highly reliable for spraying 100-300mm single solid or broken lines under humid tropical conditions.
Highway Lane Striping (Middle East Infrastructures):
For highway expansion projects in regions like Saudi Arabia, the YG-8D heavy-duty unit is preferred. Equipped with dual spray guns and an automatic reciprocating reversion pump, it allows contractors to spray double yellow lines or edge lines up to 450mm wide in a single pass, significantly speeding up highway commissioning.
Logistics Parks and Warehouse Floors
Logistics hubs utilize our walk-behind cold spray units for indoor epoxy floors. The precise 0.2-0.4mm spray thickness control ensures crisp safety walkways and forklift paths without paint bleeding.
Commercial Parking Lots and Public Squares
Private contractors use these agile 120kg machines for painting parking bays, arrows, and handicap spaces, benefiting from the easy-to-maneuver 1600mm x 800mm x 1200mm compact dimensions.
Request Project Case Studies & Machine Match
How To Choose Equipment For Cold Paints Line Stripe Projects
Different projects require different machine sizes and power outputs. For small property management companies, a compact walk-behind unit for cold paints line stripe jobs is ideal. These small units fit easily into the back of a pickup truck or a small van. For major city road markings, heavy-duty ride-on machines or truck-mounted striping systems provide the necessary paint capacity. YG provides custom chassis colors, private logo placement, and specific gun configurations to match your local market requirements.
- Model YG-8S Selection: Ideal for urban areas and single-gun line marking; features a 5.5HP engine, 4.8L/min flow rate, and a net weight of 120kg for easy transportation.
- Model YG-8D Selection: Engineered for high-speed roads requiring dual lines; features a 5.5HP engine, an expanded 8L/min flow rate, and a wider 100-450mm spray coverage.
- Custom Orders: Available options for specialized pointers, extended hoses, and extra tips.
Frequently Asked Questions about Cold Paints Line Strip
It mainly comes down to durability: hot-melt markings typically last 1–2 years, while cold-spray markings generally last 3–6 months. If customers have high standards for project quality, we recommend using a hot-melt line marking machine.
Cold-spray line marking has a thickness of 0.3–1.2 mm. By adjusting the height of the spray gun—raising it makes the line wider, and lowering it makes it narrower—the spray width ranges from 5 to 45 centimeters.
1 metric ton of cold-spray paint contains 40 buckets, with each bucket weighing 25 kilograms. One bucket of cold-spray paint covers 70 square meters. The typical mixing ratio for cold-spray paint and thinner is 1:2. (Thinner is available in 7-kilogram or 10-kilogram containers.)
Yes, it’s not difficult to operate. After simply turning on the switch and adjusting the pressure, you can start spraying. It’s very easy for beginners to get started. Andersen can also provide you with an operating manual. Of course, if you have any questions, our 24-hour customer service is always online to answer your inquiries.
