A major municipal construction contractor from Oman recently purchased two units of our high-performance YG180 drum cutter machine. Oman features many mountainous areas and thick rock terrains. Local development teams need specialized excavator attachments to dig through hard ground safely. The customer bought these two sets of advanced cutting machinery to install on their mid-size crawler excavator fleet. This critical equipment deal successfully helps the Oman engineering team speed up their rock fracturing and underground utility deployment. YG completed the factory inspection, fast sea shipment, and delivered both machines directly to the client’s engineering site in Oman.
Detailed Equipment Parameters And Technical Models
To assist your procurement planning, we display our official structural and performance parameters in the table below. This data helps you compare different models and find the exact machine for your job.
| Model | YG140 | YG160 | YG180 | YG240 |
| H (Height) | 650mm | 820mm | 830mm | 1395mm |
| W (Width) | 410mm | 650mm | 780mm | 960mm |
| D (Diameter) | 390mm | 460mm | 480mm | 620mm |
| Excavator weight | 5~10T | 10~15T | 15~21T | 20~24T |
| Max power | 22Kw | 45Kw | 55Kw | 65Kw |
| Speed | 0~120r/min | 0~100r/min | 0~80r/min | 0~90r/min |
| Flow | 40L/min | 100~110L/min | 130~180L/min | 200~250L/min |
| Max Torque | 3200N.m | 5400N.m | 5600N.m | 12800N.m |
Our small model YG140 works excellently with 5 to 10-ton compact excavators. It has a structural height of 650mm, a width of 410mm, and a cutting head diameter of 390mm. It needs a hydraulic oil flow of 40L/min and creates a max torque of 3200N.m.
The Oman client chose the YG180 model, which fits 15 to 21-ton excavators flawlessly. It has a height of 830mm, a width of 780mm, and a drum diameter of 480mm. It utilizes a 130 to 180L/min oil flow, running at a strong speed of 0 to 80r/min to produce a solid 5600N.m torque.
For the heaviest duties, our largest YG240 model operates on 20 to 24-ton excavators. It has an overall height of 1395mm, a width of 960mm, and a diameter of 620mm. It draws a flow of 200 to 250L/min and outputs a massive max torque of 12800N.m. The rotational speed scales from 0 to 120r/min across different versions, allowing operators to fine-tune the cutting impact on various rock faces.
Project Background And Customer Application In Oman
The Oman customer oversees a key urban development project. This project includes a nationwide Central Water Pipeline Network Extension. Workers must dig deep utility channels and pipeline trenches through hard limestone and dense bedrock layers. Traditional hydraulic impact hammers caused too much noise pollution and extreme ground vibrations. These strong vibrations could easily crack the foundations of surrounding residential houses. To solve this, the engineering director needed a low-vibration and precise rock cutting solution.

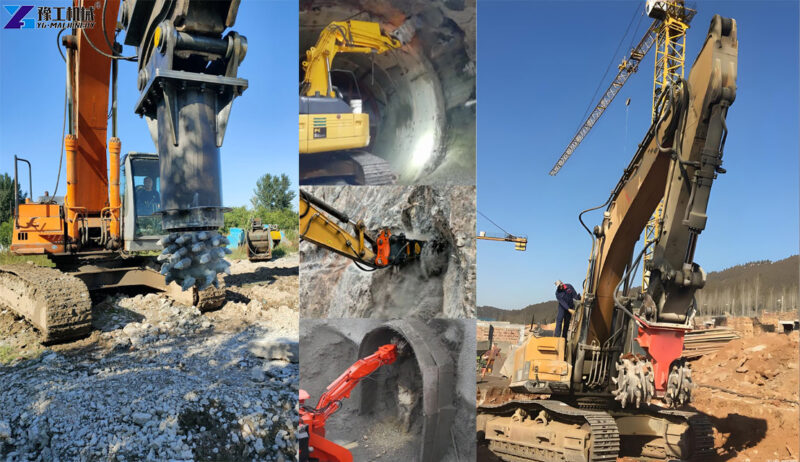

Our powerful hydraulic rock drum cutters solved this project challenge smoothly. The contractor mounted the two units of YG180 cutters onto their two 18-ton excavators. They used the equipment to perform specific construction operations:
- Digging 2.5-meter deep water pipeline trenches with flat, vertical side walls.
- Milling and smoothing out rough concrete surfaces on bridge foundation piles.
- Excavating tough rock beds quietly during late-night shifts in city zones.
After three months of heavy use, the project manager sent us highly positive feedback. The machines work continuously for 10 hours a day under hot desert climates. The heavy-duty cutter teeth wear down very slowly, and the daily trenching output surpassed their old methods.
Why Oman Customers Choose YG Drum Cutters
The heavy equipment market offers different excavation tools, but the Oman customer chose our specialized drum cutters after reviewing several global suppliers. YG stood out because we provide clear technical parameters and complete matching solutions. Here are the specific reasons why the client bought two sets of our YG180 model:
- Perfect Model Fitment: The YG180 technical specifications align perfectly with their 18-ton excavators without needing oversized hydraulic power modifications.
- Superior Performance Data: This specific model provides up to 5600N.m of maximum torque and a strong 55Kw power output, which effortlessly cuts rock with 60MPa hardness.
- Fast Custom Manufacturing: YG customized the connection hitch plates to match the exact dimensions of the customer’s excavator arms within just 5 days.
YG Provides Premium Hydraulic Rock Drum Cutters For Sale
YG Machinery remains a top industrial manufacturer of heavy excavation attachments. We supply a full series of premium hydraulic rock drum cutters for international infrastructure projects. No matter if you handle narrow city cable trenches or giant open-pit mining operations, you can always acquire the best gear here. We design various models from the compact YG140 up to the massive YG240 to fit different carrier machinery weights.
Our factory tests every single unit under high oil pressure before packing. This guarantees that the rotation speed and oil flow controls satisfy global quality rules. If you intend to upgrade your field working efficiency, you can reach out to buy a high-grade drum cutter for sale today. Our team will send you an expert suggestion based on your excavator weight and rock geological reports.
Get A Competitive Drum Cutting Machine Price From YG
If you want to acquire the newest market drum cutting machine price, our sales consultants are ready to send you an itemized proposal. The final investment value depends on your selected model size, custom quick-hitch configurations, and spare wear parts. YG supplies goods straight from our factory floors to lower your import costs. Besides horizontal cutters, we also produce heavy-duty rotary rig machine systems and structural anchoring tools for international contractors. Connect with YG via our web email or WhatsApp today to obtain a free product brochure and an instant.
