A thermoplastic preheater is a practical preheating adevice for thermoplastic materials. It works before main melting or application. It raises material temperature gently to reduce workload of main melting equipment. YG offers mechanical thermoplastic pre heater series and hydraulic thermoplastic heating machine.
High Performance Thermoplastic Preheater For Road Construction

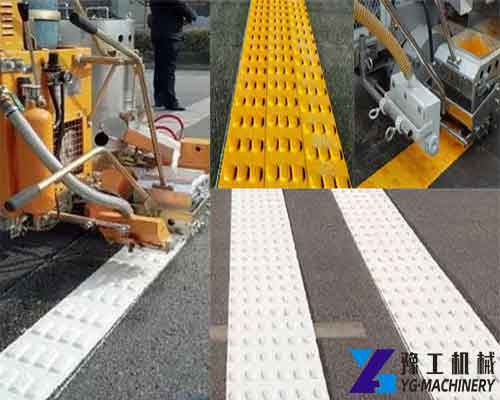

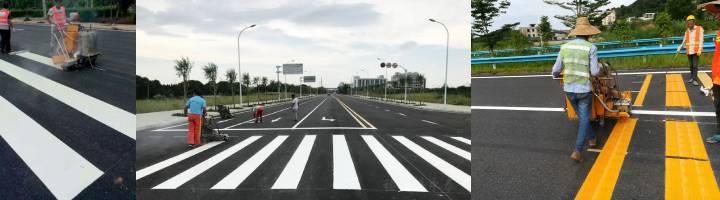

Road marking is a big job that needs the right tools. A thermoplastic preheater is the most important machine for this work. It melts solid paint into a liquid. This liquid is then used to draw lines on roads. Without a good thermoplastic heating machine, you cannot finish your work quickly. Our machines use strong engines and smart designs to save you time and money. They help you get a smooth finish on every highway or parking lot.
Efficient Mechanical Thermoplastic Pre Heater Series

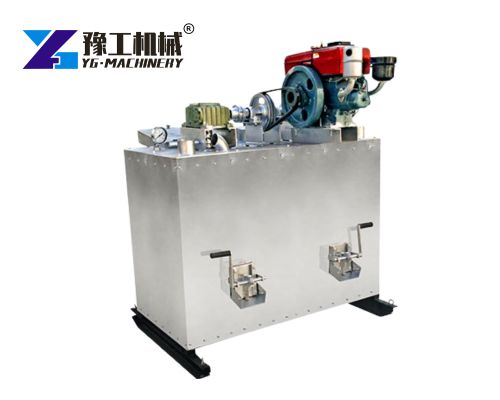

The mechanical series is perfect for medium-sized projects. These machines are strong and easy to fix. We have two main models: the YG300 and the YG600. The YG300 has a single cylinder, and the YG600 has a double cylinder. Both use a thermoplastic melt lettle made of stainless steel. This material lasts a long time and does not rust easily.
·Powerful Engine: It uses an 8.0HP or 6.5HP diesel engine.
·Energy Saving: The machine has special insulation. This can save up to 20% on gas costs.
·Safety First: It has an automatic protection device. If there is an emergency, the engine and the mixer will disconnect.
·Daily Output: These machines can cover 600 to 800 square meters in one day.
·Compact Size: The volume is small. You can even drive it into underground parking lots.

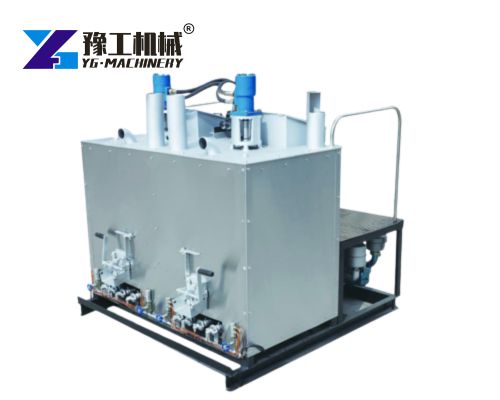

Professional YG 800/1000/1200 Hydraulic Thermoplastic Melt Kettle
For very large jobs, you need more power. The hydraulic series is much faster than the mechanical one. These machines have two cylinders that work together. This means you can melt more paint at the same time. It is a top-tier thermoplastic heating machine for big road marking teams.
Technical Specifications Of YG Hydraulic Series
| Feature | YG800 | YG1000 | YG1200 |
| Engine Power | 15HP Electric Start Diesel | 15HP Electric Start Diesel | 15HP Electric Start Diesel |
| Cylinder Capacity | 360kg x 2 | 500kg x 2 | 600kg x 2 |
| Daily Output (Pro) | 800-1200 ㎡ | 1000-2000 ㎡ | 1200-2000 ㎡ |
| Net Weight | 800kg | 1000kg | 1200kg |
| Hydraulic Oil Tank | 40 Liters | 40 Liters | 40 Liters |
Hydraulic VS Mechanical Thermoplastic Preheater Models
Choosing the right thermoplastic preheater depends on your needs. The YG1000 hydraulic model and the mechanical double cylinder model are both good, but they work differently. The hydraulic machine is more efficient. One YG1000 can do the same work as two mechanical machines.
Mixing System Differences
The hydraulic YG1000 thermoplastic melt kettle uses a 15HP engine and a multi-way valve. It can stir in both directions and change speeds easily. This makes the paint mix very well. The mechanical thermoplastic heating machine model uses an 8HP engine and a belt drive. It only stirs in one direction at a fixed speed.
Heating and Pot Quality
Both thermoplastic pre heater types use high-quality materials. They use Q325 high-carbon steel for the bottom of the pot. This helps the pot handle very high heat without breaking. The walls are made of stainless steel to stop corrosion. Both machines also use silicate aluminum board for insulation. This keeps the heat inside and protects the workers from burns.
How To Operate Your Thermoplastic Preheater Correctly
To make your machine last a long time, you must follow some rules. Working with a Thermoplastic Melt Kettle requires care because the paint is very hot.
1.Check Liquids: Always add diesel, engine oil, and cooling water before starting the engine.
2.Oil Type: Use No. 40 hydraulic oil or 50-1 liquid oil for the gearbox.
3.Temperature Control: Keep the temperature between 180°C and 220°C. If it goes above 220°C, the paint might change color or break down.
4.Mixing Rule: Do not start stirring until the paint is hot enough (above 150°C). If the paint is still solid, you might break the gearbox. .
5.Cleaning: Regularly check the gears and clean the filters to keep the machine running smooth.
Choose YG Machinery For Your Road Marking Success
At YG Machinery, we provide high-quality thermoplastic preheater solutions for road marking projects worldwide. Based in Zhengzhou, China, we specialize in heavy machinery designed for the demanding needs of professional contractors. Whether you require the compact mechanical thermoplastic melt kettle for parking lots or the high-capacity hydraulic series for highways, our equipment ensures maximum efficiency and 20% fuel savings through advanced insulation.
We take pride in our global reach, currently supporting infrastructure development across North America, including Canada and Mexico, as well as the Czech Republic and Saudi Arabia. Our machines, such as the CK1000, are engineered for durability with high-carbon steel bottoms and stainless steel walls to withstand extreme heat and corrosion.
Contact YG Machinery today to get a professional quote on a thermoplastic heating machine. Let our expertise help you complete your next project on time and under budget.
