Modern construction projects require fast, clean, and safe tools. The old way of using hand-held jackhammers to remove extra concrete is too slow. It also causes too many accidents and hurts the ears of workers. Today, using a professional hydraulic pile cutter is the best choice for any foundation job. This advanced equipment changes how engineering teams handle pile trimming on-site.
YG Pile Breaker Specifications
| Module Number | PCS | 4 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 |
| Combination of the total weight | KG | 1600 | 2640 | 2970 | 3300 | 3630 | 3960 | 4290 | 4620 | 4950 | 5280 | 5610 | 5940 |
| Pile diameter range | mm | 400-600 | 600-800 | 800-1000 | 1000-1150 | 1150-1300 | 1300-1500 | 1500-1650 | 1650-1800 | 1800-1970 | 1970-2200 | 2200-2360 | 2360-2500 |
| Hydraulic excavator | T | 20T-30T | 30T-40T | Hydraulic system/pump station | |||||||||
| Max.Thrust | 300KN | Max.Cylinder required | 20L/min | Machinery Tonnage | ≥20T | Location pinΦ35 | |||||||

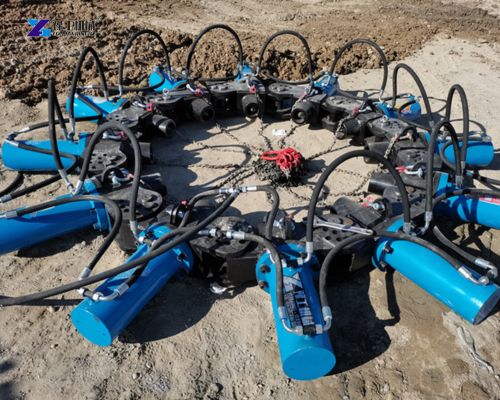

Modular Flexibility Of The Concrete Pile Cutting Machine
A great advantage of the modern concrete pile cutting machine is its modular design. Instead of buying many different machines for different jobs, users can adjust this single tool easily.
- The equipment consists of several identical link modules connected together.
- Users can add or remove modules in a short time to fit different pile sizes.
- It works excellently on both round piles and square piles found in deep foundations.
- The structure is simple to assemble, disassemble, and transport between locations.
This smart design means that a single machine can handle various pile sizes on the same worksite, making the work process highly efficient.
Structural Protection Benefits Of A Hydraulic Pile Breaker
When cutting concrete, protecting the inner steel bars and the lower pile structure is vital. Traditional heavy hammering often creates small micro-cracks inside the foundation, which can weaken the entire building later. A high-quality hydraulic pile breaker solves this serious engineering problem completely.
- It uses pure hydraulic pressure to crush the concrete from multiple directions at the same time.
- The force is highly concentrated and even, so it does not send shockwaves down into the ground pile.
- It breaks the outer concrete cleanly while leaving the inner rebar totally undamaged and ready for the next building step.
How A Pile Head Breaking Machine Enhances Worksite Safety
Safety is always the number one priority on any construction site. Manual labor with hand tools puts workers close to falling concrete pieces and heavy dust. Moving to a mechanical pile head breaking machine creates a much safer working environment for everyone involved.
- The entire operation is controlled remotely by the operator sitting safely inside the cabin of an excavator or a crane.
- Workers do not need to stand near the pile while the crushing process is happening.
- The machine produces very low noise and minimal vibration compared to traditional blasting or hammering methods.
- Flying debris is greatly reduced because the cutting teeth crush the concrete inward rather than snapping it outward.
Seamless Integration Of The Versatile Pile Breaker Tool
A professional pile breaker is not a standalone tool that requires unique energy sources. Instead, it is highly adaptable and connects quickly to the machinery you already own on your worksite.
- It can be attached directly to standard construction excavators, hydraulic power packs, or lifting cranes.
- The setup uses the existing hydraulic oil system of the host machine to provide immense crushing force.
- It requires very little daily maintenance because it has fewer moving parts and uses highly durable alloy materials.
Choosing The Right Hydraulic Pile Cutter For Complex Soil Conditions
Different construction sites have different ground realities. Some piles are surrounded by soft mud, while others sit in hard, dry earth. A professional hydraulic pile cutter performs consistently well across all these varying environments.
- The sealed hydraulic cylinders are fully protected against wet mud, dirt, and water entry.
- It can operate efficiently even in deep trench works or underwater foundation projects.
- The alloy teeth are designed to bite through high-strength concrete mixes without wearing down quickly.
Using this advanced machinery ensures that your project stays on schedule, no matter how tough the ground conditions appear to be.
