Every construction zone faces one shared challenge: steady, flexible power without grid access. A quality construction site generator keeps cranes, air compressors, power drills and lighting running through long work shifts. Many project managers waste cash on oversized machines that burn excess fuel and create loud noise pollution. YG lineups of 30-400kW diesel generator for construction site and trailer-mounted generators solves these pain points with load-matched designs, low emission tech and easy transport for multi-location builds.
Get Custom Generator Load Calculation
YG Construction Site Generator Specifications
| Power | 30kW | 100kW | 150kW | 200kW | 300kW | 400kW |
| Cylinders | 4 | 6 | 6 | 6 | 6 | 6 |
| Voltage | 400/230V | 400/230V | 400/230V | 400/230V | 400/230V | 400/230V |
| Frequency | 50Hz | 50Hz | 50Hz | 50Hz | 50Hz | 50Hz |
| Speed | 1500rpm | 1500rpm | 1500rpm | 1500rpm | 1500rpm | 1500rpm |
| Bore × Stroke (mm) | 100×115 | 105×125 | 105×130 | 126×130 | 126×155 | 135×160 |
| Rated Current | 54A | 180A | 270A | 360A | 540A | 720A |
| Phase / Wiring | 3-Phase 4-Wire | 3-Phase 4-Wire | 3-Phase 4-Wire | 3-Phase 4-Wire | 3-Phase 4-Wire | 3-Phase 4-Wire |
Key Pain Points Of Mismatched Construction Site Generator Sizing
Most rental or generic generator packages come sized too large for real site demand. This poor matching creates three avoidable issues for construction teams:
- Higher fuel costs: Units running below 30% rated load burn far more diesel per kilowatt of power.
- Extra noise pollution: Overcapacity engines run constantly with no natural load balance, raising decibel levels near residential zones.
- Faster component wear: Light-load operation leaves unburned fuel inside engines, clogging filters and shortening service cycles.
Tower cranes make sizing extra tricky. Crane motors draw huge surge current when lifting heavy materials, forcing basic generators to sit idle most hours just to handle short peak spikes. A standard 320 kVA construction site generator for a tower crane spends only 10–50% of its working time under active load, wasting thousands of liters of fuel each month. Modern upgrades like flywheel or battery hybrid systems let teams downsize to 200 kVA diesel generator for construction site while fully covering startup power surges.

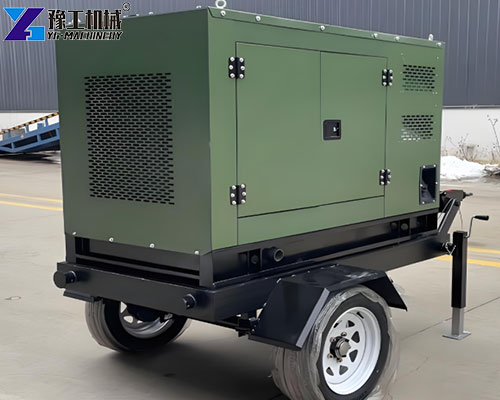

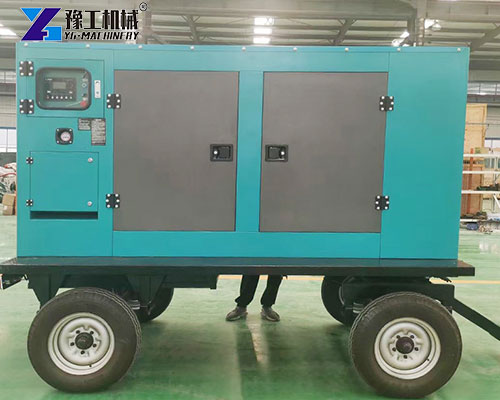

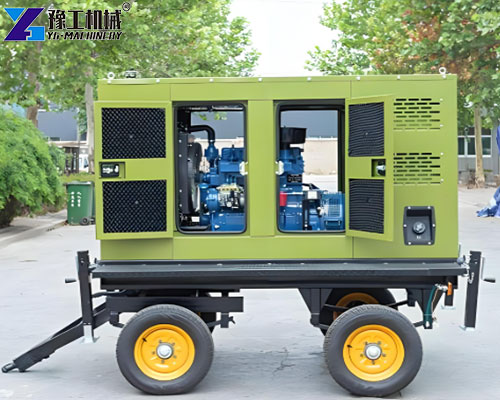

Trailer Mounted Generators: Mobile Power For Large Spanning Worksites
Trailer mounted generators stand out for medium and large construction projects that shift boundaries weekly. Built on heavy-duty steel wheeled frames, these units attach directly to pickup trucks or site haulers with no extra rigging required. Each trailer base includes stabilizing jacks to lock the generator steady during vibration-heavy crane or concrete mixer operation.
YG trailer-mounted generators standard features :
- Lockable weatherproof enclosures to block rain, dust and UV sun damage
- Large integrated fuel tanks for 8+ hours of nonstop operation
- Built-in grounding points to meet construction electrical safety rules
- Remote monitoring telemetry to track load, fuel level and engine health from site offices
For highway-access projects, multiple trailer mounted generators link together via load-on-demand control. Instead of one single 1500 kVA construction site generator running all day, three 500 kVA trailer units activate or shut down automatically based on real-time power draw. When site load drops under 500 kVA, two machines power off completely, slashing daily fuel use and cutting carbon emissions.
Browse Trailer Mounted Generator Models

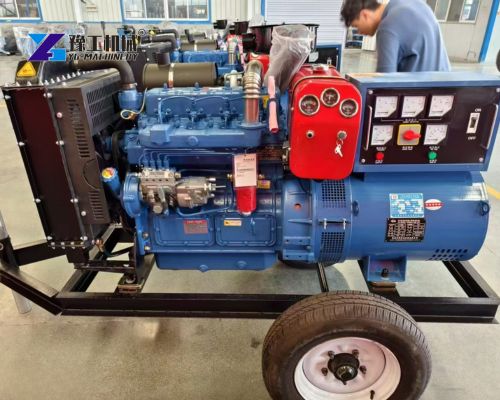

Diesel Generator For Construction Site: Why Diesel Outperforms Other Fuels On Worksites
Gasoline, natural gas and dual-fuel generators exist for light use, but diesel generator for construction site remains the industry standard for heavy daily operation. Construction environments demand long runtimes, resistance to rough handling and stable power under sudden load spikes—three areas diesel technology dominates.
Core benefits of diesel generator for construction site:
- Longer runtime per tank: Diesel fuel holds more energy density, extending shift time between refuels for remote off-grid sites.
- Strong surge power tolerance: Diesel engines handle motor startup surges from cranes and pumps without voltage drops.
- Lower fire risk: Diesel fuel ignites at much higher temperatures than gasoline, improving safety around welding and hot cutting tools.
- Minimal downtime: Robust industrial engines run 10,000+ operating hours before major service overhauls.
Our diesel generator for construction site range covers all power tiers: small portable wheeled units, mid-size silent stationary models and heavy trailer mounted high-kVA packs. Every diesel machine supports two efficiency upgrades to eliminate low-load waste: flywheel power balancing and smart battery hybrid integration.
Load-On-Demand Multi Generator Setups For Large Construction Zones
Mass infrastructure projects like highway builds, stadium construction and high-rise towers need flexible power that scales up and down all day. Load-on-demand technology connects multiple trailer mounted generators into one synchronized power network, replacing a single oversized construction site generator.
How load-on-demand operation works on site:
- Site control software reads total real-time power draw every second.
- Individual portable generator for construction site and larger trailer units activate automatically when demand rises above single-unit capacity.
- When power needs fall, excess generators shut down fully instead of running at inefficient low load rates.
- The system maintains a steady 75–85% optimal load rate on all active machines, the sweet spot for lowest fuel consumption and longest engine lifespan.
This setup also adds backup safety. If one diesel generator for construction site requires maintenance, the remaining linked units automatically split the full load without cutting power to cranes or production tools. No full-site power shutdowns happen during routine filter and oil changes.
Request Multi-Generator Layout Plan
Remote Telemetry For Optimized Construction Site Generator Performance
All YG construction site generator models, such as trailer-mounted generators, come with built-in remote telemetry hardware. This digital monitoring tool removes guesswork from generator sizing and daily operation.
Telemetry delivers these critical site insights:
- Live load percentage to confirm machines stay within the efficient 70–85% range
- Real-time fuel consumption tracking to spot waste from low-load operation
- Pre-fault engine alerts for early maintenance before unexpected downtime
- Historical power draw data to adjust generator sizing for future project phases
Construction site project managers access telemetry data via phone or desktop dashboards. Teams can review weekly load patterns to decide whether to downsize a diesel generator for construction site or add hybrid flywheel/battery kits to cut long-term running costs. The data also supports compliance with local construction emissions reporting rules.
Weatherproof Build Standards For Harsh Construction Site Conditions
Construction zones expose power equipment to rain, sand, mud, extreme heat and freezing cold. Every construction site generator uses reinforced industrial casings built to withstand unprotected outdoor placement for full project durations.
Standard weather protection features across all units:
- Sealed control panels to block dust and rainwater entry
- Anti-corrosion coated frames for coastal or wet excavation sites
- Cold-start engine heating elements for winter construction in low-temperature regions
- Overheat protection sensors that auto-limit power output to avoid breakdowns under midday sun
Portable generator for construction site models add compact dust filter covers that workers can swap out quickly during dusty excavation work. Larger trailer mounted generators include full-length rain hoods over exhaust and fuel fill points to prevent water contamination of diesel supplies.
Final Sizing Checklist To Pick The Right Construction Site Generator
Before selecting any diesel generator for construction site, portable generator for construction site or trailer mounted generators, complete this simple load checklist to avoid overbuying or underpowering your worksite:
- List all powered tools, cranes, pumps and lighting with their kVA startup and running power ratings.
- Mark equipment that creates large surge loads, such as tower cranes and air compressors.
- Note daily load fluctuations: low overnight idle vs peak morning/afternoon operation.
- Confirm site environment factors: altitude, average temperature and local noise/emission rules.
- Choose an efficiency upgrade: flywheel for steady peak surges, battery hybrid for long low-load idle times.
- Decide transport needs: compact portable units for small indoor builds or trailer mounted generators for large spread-out sites.
Matching your exact load profile to a properly sized construction site generator eliminates unnecessary fuel waste, cuts noise pollution and removes the risk of costly power drops halting construction progress. Hybrid and flywheel upgrades further shrink required generator capacity while holding full power performance for all heavy site machinery.
