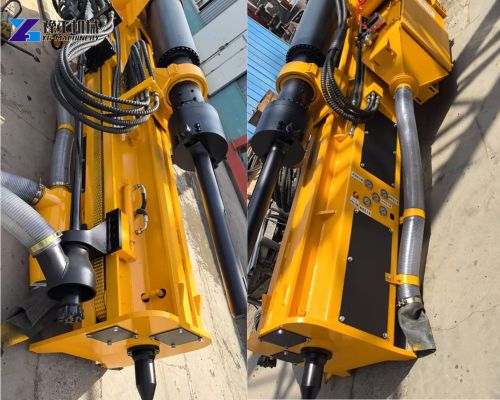

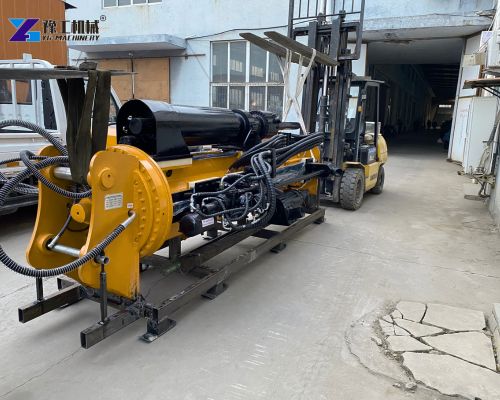

YG integrated rock drill and splitter is an all-in-one hydraulic machine that combines drilling and rock splitting functions into a single unit. It mounts directly on excavators over 25 tons, replacing separate drilling and splitting tools to save time and labor. Unlike traditional methods that use two devices, this excavator rock drill and splitter finishes drilling and splitting in one setup, making it a core tool for hard rock projects.

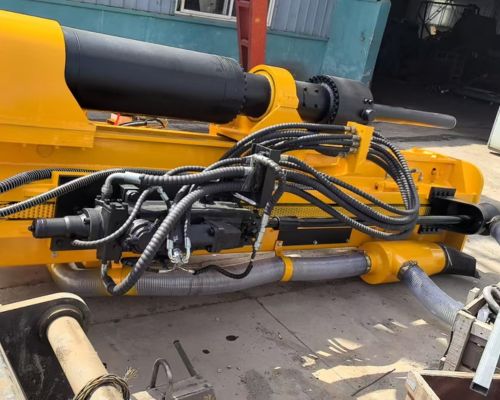

YG core design merges a hydraulic rock drill and splitter system with a stable feed beam，air compressor, and control unit. Every part works together to drill precise holes and split rocks with strong force. This integration removes the need to switch tools, cuts work delays, and boosts overall efficiency for any rock-breaking job.
If you are looking for a solution that reduces labor, improves efficiency, and eliminates blasting risks, this All-in-one rock splitter is your ideal choice.
Specifications of Integrated Rock Drill and Splitter
| Drilling and splitting all-in-one machine | |
| Matching excavator model | 25T |
| Length | 3900mm |
| Width | 1300mm |
| Height | 1000mm |
| Total weight (including air compressor) | 3.2T |
| Hole diameter | 43-115mm |
| Hole depth | 1700mm |
| Average drilling speed | 1m/min |
| Impact energy | 300J |
| Impact pressure | 17.5mpa |
| Impact flow | 80-100L/min |
| Impact energy | 18kw |
| The maximum total flow of the system | 300L |
| Rated pressure (MPA) of the excavator system | 40Mpa |
| Splitting machine | 380 |
| Rated tension | 5000T |
| Splitting time | 3minutes |
| Crack width | 44929mm |
| Displacement of air compressor | 8m³/5bar |
| Dust removal system | can be increased |
| Operation method | remote control or driving |
Operation Process Of Excavator Rock Drill And Splitter
Using an excavator rock drill and splitter is straightforward. The whole process follows clear steps for safe and fast work.
- Position the machine: The excavator moves the integrated rock drill and splitter to the target area. The operator adjusts the angle to match the rock surface.
- Start drilling: The drill lowers and begins to drill a Φ43-115 mm hole. The dust collector runs at the same time to reduce dust.
- Switch to splitting: After reaching the required depth, the drill stops. The splitter inserts into the hole.
- Split the rock: The splitter applies pressure until the rock cracks. It can split rocks up to 8 meters long, depending on density.
- Move to next spot: After splitting, the machine repositions for the next hole.
One full cycle takes only 3–5 minutes. The operation requires minimal training, and the remote control keeps workers away from danger.
Core Advantages Of Hydraulic Rock Drill And Splitter
A hydraulic rock drill and splitter stands out from traditional rock-breaking tools with clear benefits for efficiency, safety, and cost.
High Work Efficiency
The integrated design lets one machine do two jobs. For standard projects, it drills and splits rocks in 3-4 minutes per cycle. It can process 100 to 200 tons of rock per hour, much faster than separate drilling and splitting tools.
Low Site Risk
No need for manual rock breaking or heavy tool handling. The remote control system lets operators work from a safe distance. It avoids dangerous vibrations and flying rock pieces.
Wide Material Compatibility
It works on all hard rocks, including granite, basalt, and limestone. It can split rocks up to 8 meters long (depending on rock density) and handle both small and large rock blocks.
Easy Operation & Maintenance
The machine has simple controls and a one-click start system. The single oil injector simplifies daily upkeep. Wear parts are easy to replace, and the modular design cuts repair time.
Eco-Friendly Performance
The built-in dust collector reduces dust pollution, meeting environmental rules. It uses hydraulic power with low noise, making it suitable for urban construction and residential areas.
5 Main Applications Of Integrated Rock Drill And Splitter
Integrated hydraulic rock drills and splitters are widely used in open-pit mines, quarries, building foundations, tunnel excavation, road construction, water conservancy projects, etc.

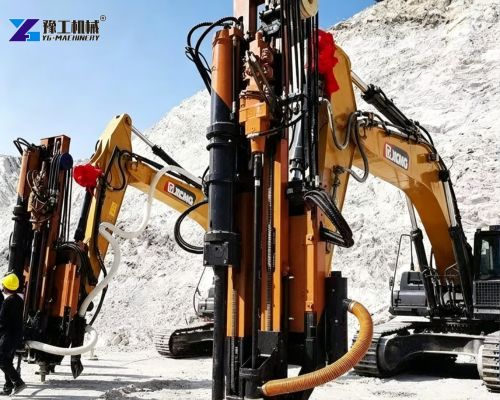

Open-Pit Mines & Quarries
It drills and splits hard rock ores and stone blocks. It replaces blasting in many mines, making work safer and reducing material waste. It is ideal for granite, marble, and limestone quarries.
Building Foundation Work
For high-rise buildings and bridges, it breaks hard rock foundations without blasting. It keeps the site stable and avoids damage to nearby structures.
Tunnel & Underground Projects
It drills pilot holes and splits rock layers in tunnel excavation. Its compact size works well in narrow spaces, and low vibration protects tunnel walls.

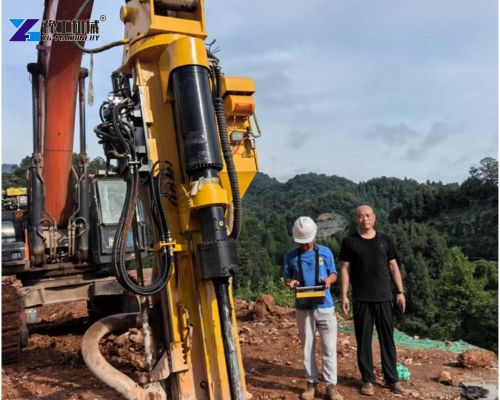

Road & Bridge Construction
It breaks rock slopes, digs road beds, and builds bridge foundations. It adapts to mountainous and rocky areas where traditional tools fail.
Water Conservancy Projects
It handles rock excavation for dams, canals, and reservoirs. It works in wet and muddy conditions, ensuring steady progress for water projects.

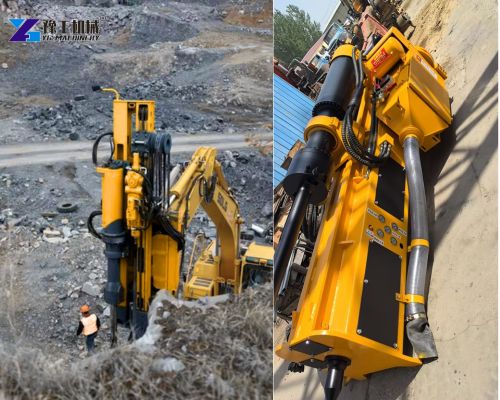

Why Choose An Excavator Rock Drill And Splitter for Your Engineering Projects?
An excavator rock drill and splitter is a smart investment for any rock-breaking project. It combines versatility, power, and reliability to meet modern construction needs.
First, it saves money on equipment. Instead of buying a drill and a splitter separately, you get one machine that does both. It also cuts labor costs, as fewer workers are needed to operate the equipment.
Second, it improves project quality. The precise drilling (Φ115mm holes) and powerful splitting (8000T force) create clean rock breaks. This reduces secondary work and ensures the project meets quality standards.
Third, it adapts to changing project needs. From small foundation jobs to large mine projects, the integrated rock drill and splitter adjusts easily. It works in hot, cold, wet, or dry conditions, making it a reliable tool year-round.
For contractors and mine operators, this machine balances performance and practicality. It eliminates the inefficiencies of traditional rock-breaking methods and delivers consistent results on every job site.
