Finding a reliable, portable, and efficient drilling solution is critical for successful groundwater extraction. Our comprehensive range of small water well drilling rigs is designed to provide high performance in restricted spaces, making them the ideal choice for home water supply, farm irrigation, and small-scale engineering projects.
Whether you need a compact wheeled unit or a heavy-duty crawler-mounted rig, YG “Little Blue” series offers the versatility to handle diverse geological conditions, including soil and rock layers.
Related Post： Small Water Well Drilling Rigs for Sale in Bulgaria
Small Water Well Drilling Rigs Specifications
| Model | YG180 | YG240 | YG350 | YG280 | YG500 |
| Voltage | 220V | 220V | 380V | gasoline/diesel | 380V |
| Power | 1.5-2kw | 4kw | 3kw | 8HP | 5.5kw |
| Drilling hole | 80-200mm | 80-220mm | 80-350mm | 80-280mm | 80-500mm |
| Drilling depth | 80M | 100M | 100M | 120M | 120M |
| Drilling rod | Φ42mm,1.5m | Φ51mm,1.5m | Φ51mm,1.5m | Φ51mm,1.5m | Φ65mm,2m |
| Pump power | 2.2kw | 2.2kw | 2.2kw | 3.5HP | 5.5kw |
| Dimension | 0.7*0.7*2.5m | 0.7*0.7*2.5m | 0.8*0.8*2.7m | 0.8*0.8*2.7m | 1*1.5*2m |
| Weight | 120KG | 150KG | 250KG | 200KG | 600KG |
YG Small Portable Water Well Drilling Rigs Types

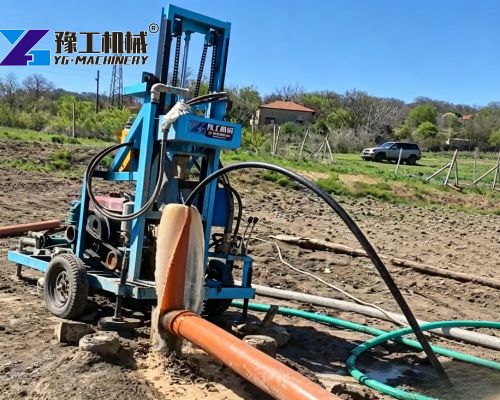

Wheeled Diesel Drilling Rig
The perfect balance of mobility and power. This single-cylinder wheeled unit is designed for rapid deployment and easy transport between sites.
- Max Depth: 150 meters.
- Borehole Diameter: 75–300mm.
- Engine: Reliable Changchai 22HP diesel engine.
Crawler Small Well Drilling Rig
For challenging terrain where stability is paramount, our crawler models provide superior traction and integrated hydraulic support legs.
- Max drilling depth: 150m
- Hole diameter: 75-300mm
- Engine: Reliable Changchai 22HP diesel engine.
Electric Water Well Drill Machine
An eco-friendly and quiet solution for areas with accessible power grids. Available in multiple voltage configurations.
- Max drilling depth: 100m
- Hole diameter: 75–200mm
- Power options: Multiple motor configurations

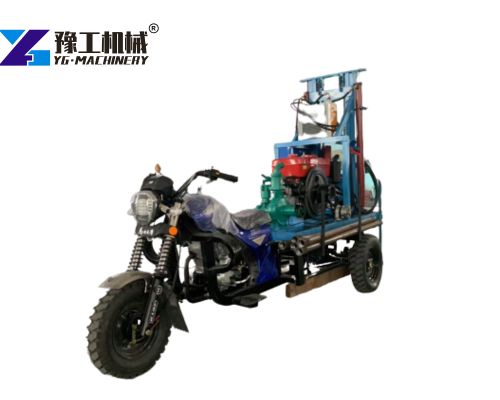

Motorcycle-Mounted Drilling Rig
For maximum mobility over long distances, we offer specialized vehicle integrations.
- Max drilling depth: 150m
- Hole diameter: 75–300mm
- Power options：dual-cylinder 35HP engine for high-speed relocation.

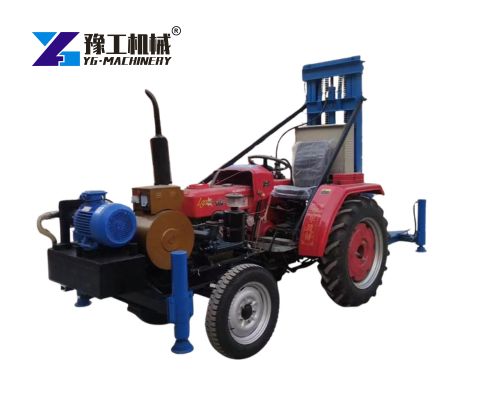

Trailer Mounted Water Well Drilling
For versatile on-site operations, we provide integrated power solutions.
- Max drilling depth: 130–150m
- Max hole diameter: 400mm
- Power options: Integrated generator set

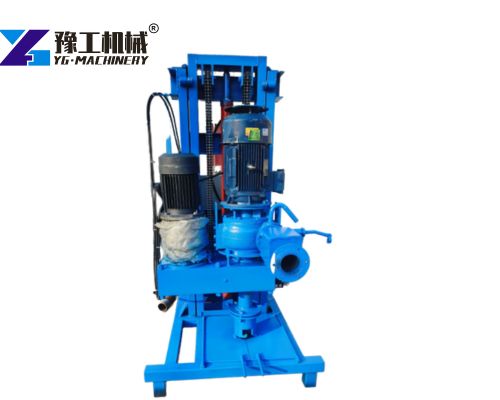

Reverse Circulation Drilling Rig
For efficient deep-earth exploration, we feature multi-motor drive systemns.
- Max drilling depth: 80m
- Hole diameter: 270–600mm
- Power options:Multi-motor drive system
Key Features of Small Water Well Drilling Rigs
- Compact & Highly Portable： Designed with a small footprint and lightweight structure, YG small water well drilling rigs can easily access narrow yards, mountainous areas, and confined job sites where large drilling equipment cannot reach. Most models are wheeled, crawler-mounted, or trailer-mounted for fast relocation between sites.
- Flexible Power Options： YG offers multiple power configurations to match on-site conditions: 220V/380V electric motors for grid-connected areas, and gasoline/diesel engines for remote sites without power supply, balancing eco-friendly quiet operation and high-torque field adaptability.
- Strong Geological Adaptability：Equipped with interchangeable PDC bits, our rigs efficiently drill through soil, clay, sand, gravel, and rock formations. Drilling diameters range from 80mm to 500mm and depths up to 120–150m to meet diverse well construction requirements.
- Easy to Operate & Maintain： User-friendly controls, fully assembled delivery, and simple drill pipe/bit connection allow operators to start work with minimal training. Diesel models feature electric start and integrated mud pumps for stable performance and low maintenance costs.
- High Efficiency & Cost-Effective： YG portable water well drilling rigs shorten project cycles significantly. Lower investment, fuel consumption, and operational costs make them economical for personal, farm, and small engineering use.
- Stable & Durable Structure：High-strength steel frames, hydraulic support legs (on crawler models), and reliable components ensure stability and long service life even in tough working conditions.
Main Applications of Small Water Well Drilling Rigs
- Residential Domestic Water Supply： Ideal for drilling private drinking water wells in rural, suburban, or remote areas not covered by municipal water systems, providing families with safe and stable groundwater.
- Agricultural Irrigation & Breeding： Widely used for farmland, orchards, and pasture irrigation wells, as well as water supply for livestock and aquaculture, helping farmers achieve independent water management and improve productivity.
- Small-Scale Engineering & Construction： Suitable for on-site water wells, dewatering wells, foundation pit drainage, geothermal air conditioning wells, and small pile driving in construction projects.
- Field Geological Exploration & Sampling： Used for shallow geological surveys, soil sampling, and mineral resource preliminary exploration, especially in mountainous or inaccessible terrain.
- Emergency & Disaster Relief Water Supply： Capable of rapid well drilling in disaster-hit areas, field camps, or temporary water shortages to secure emergency drinking and production water.
- Landscaping & Water Conservancy Projects： Applied to garden irrigation, landscape water replenishment, small reservoir recharge wells, and rural water conservancy supporting facilities.
Why Choose YG Portable Drilling Rigs?
Our equipment is engineered to solve the pain points of modern drilling operations:
- Compact & Portable: Designed with a small footprint and lightweight frame, these machines easily access narrow areas where large equipment cannot enter.
- Easy Operation: Featuring a user-friendly interface and simple assembly, operators can begin drilling with minimal training.
- Versatile Power Options: Choose from high-torque diesel engines (single or double cylinder) or eco-friendly electric motors based on your site requirements.
Frequently Asked Questions (FAQ)
A: Yes. By equipped our specialized PDC (Polycrystalline Diamond Compact) bits, the rigs can efficiently penetrate rock formations.
A: Yes, our diesel units come equipped with a built-in mud pump to facilitate the drilling process and debris removal.
A: No. The machines are shipped fully assembled. You simply need to connect the drill pipes and bits to begin your project immediately.
A: All our diesel rigs feature a convenient electric start system for ease of use.
