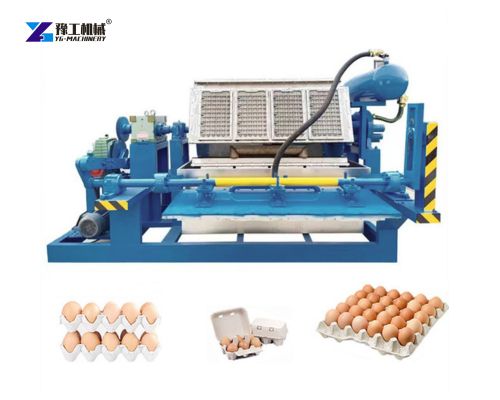

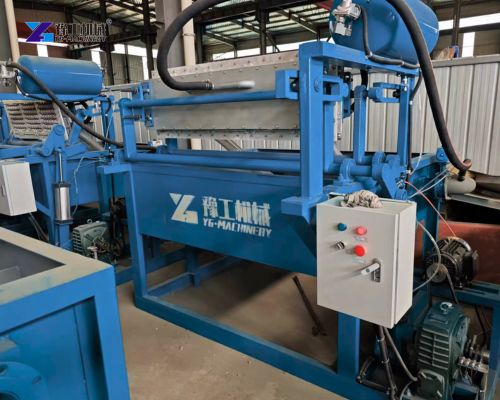

Egg Carton Machine

An egg carton machine is a paper pulp molding equipment that turns waste paper into egg trays, cup holders, fruit trays and other pulp products. Over 80% of its output is egg cartons, so it is widely known as an egg carton machine. It is eco-friendly, low-cost and easy to use. It is very popular in Africa, Latin America and Muslim countries, where poultry farming and green packaging are growing fast. If you are looking for a reliable solution to start or expand your egg packaging production, contact YG team today to get your custom egg carton machine recommendation.

Get Your Egg Carton Machine Quote Now

YG Egg Tray Making Machine Specification

Model	YG-1000-3X1	YG-1500-4X1	YG-2500-3X4	YG-3000-4X4	YG-4000-4X8	YG-5000-5X8	YG-7000-6X8
Capacity/hour	1000pcs/h	1500pcs/h	2500pcs/h	3000pcs/h	4000pcs/h	5000pcs/h	7000pcs/h
Power/hour	38kw	38kw	55kw	60kw	95kw	95kw	120kw
Voltage	380V50Hz	380V50Hz	380V50Hz	380V50Hz	380V50Hz	380V50Hz	380V50Hz
Weight	2500kg	3000kg	4000kg	4800kg	7000kg	8000kg	10000kg
Dimensions (main machine)	2600*2200*1900mm	2800*2200*1900mm	2900*1800*1800mm	3250*1800*1800mm	3250*2300*2500mm	3700*2300*2500mm	3200*2300*2500mm
Paper consumption/hour	80kg	120kg	200kg	240kg	320kg	400kg	480kg
Water consumption/hour	160kg	240kg	400kg	480kg	640kg	800kg	960kg
Drying	Dry naturally	Dry naturally	Multi-layer drying	Multi-layer drying	Multi-layer drying	Multi-layer drying	Multi-layer drying

Request Free Consultation Egg Tray Making Machine Models & Price

YG Egg Carton Making Machine Types

An egg carton making machine comes in three common types, based on output and structure.

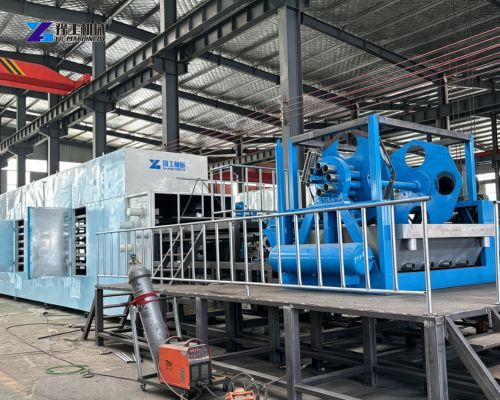

YG Working Process of the Egg Tray Manufacturing Machine

An egg tray manufacturing machine works in three main steps: pulping, molding and drying. The whole process is simple and stable.

Pulping Section

• Mix waste paper and water at a ratio of 1:10 in a pulper
• Add color or waterproof glue in the mixing tank
• Adjust pulp concentration to 3%–5% before molding

Molding Section

• Vacuum pump creates negative pressure to stick pulp on molds
• Extra water flows out and goes back to the water tank
• Air compressor uses positive pressure to blow wet trays to transfer molds

Drying Section

• Wet trays go into dryer at 180–220°C for 15–20 minutes
• Dry trays are stacked and packed automatically

Get Your Egg Carton Machine Quote Now

Key Features Of YG Egg Carton Machine

YG designs and manufactures reliable egg carton machine for global markets. Our machines are built for long‑term use, easy operation and low running cost.

• Durable Construction: Heavy‑duty steel frame and high‑quality parts reduce breakdowns. The machine works stably for many years.
• Wide Output Range: From small flip plate models (1,000 pcs/h) to large drum models (10,000 pcs/h). We match every production scale.
• Low Energy Consumption: Optimized motor and drying system save electricity and fuel. Daily operation cost is low for small and large factories.
• Simple Operation & Maintenance: Easy control panel, clear buttons and modular design. Workers learn quickly. Spare parts are easy to find and replace.
• Eco‑Friendly & Safe: Uses only waste paper as raw material. No harmful chemicals or emissions. Safety design protects operators.
• Flexible Mold Options: One machine can make egg trays, cup holders, fruit trays and industrial liners by changing molds.

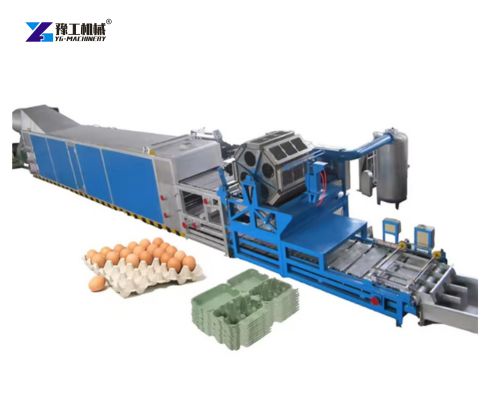

Free Design & Quote for Egg Tray Production Line

Applications Of YG Egg Carton Making Machine

YG’s egg carton making machine serves many industries and markets. It is widely used in Africa, Latin America and Muslim countries.

• Poultry Industry: Produce standard egg trays for farms, markets and egg distributors.
• Food & Beverage: Make coffee cup holders, fruit trays and bottle carriers for safe transport.
• AgricultureManufacture seedling trays and small produce packaging.
• Industrial Packaging: Custom pulp liners for electronics, ceramics and fragile goods.
• Export & Local Trade: Lightweight, stackable and eco‑friendly trays for domestic and export markets.
• Small & Medium Enterprises: Perfect for startups that need low‑cost, multi‑purpose packaging production.

Talk to Us About Your Packaging Needs

How To Choose The Right YG Egg Tray Manufacturing Machine

Choosing the right egg tray manufacturing machine helps you save money and match your business goals. Focus on these key points.

• Production Capacity

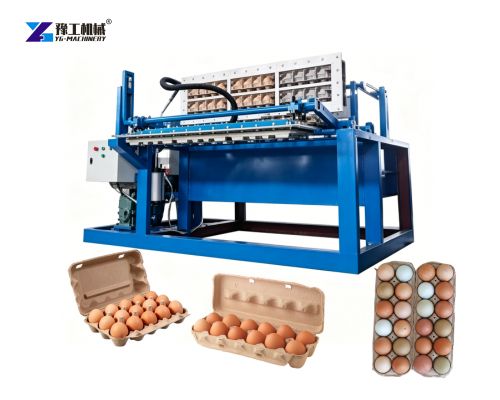

  • Small business: flip plate machine (1,000–1,500 pcs/h)
  • Medium business: reciprocating machine (1,000–2,000 pcs/h)

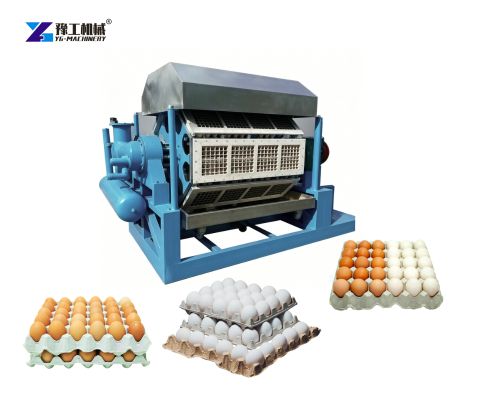

  • Large factory: drum machine (2,500–10,000 pcs/h)
• Available Space
  • Limited space: drying oven or multi‑layer metal dryer
  • Large open area: natural drying or concrete tunnel drying
• Budget
  • Low budget: flip plate machine + natural drying
  • Medium budget: reciprocating machine + drying oven
  • High budget: drum machine + multi‑layer dryer
• Product Types
  • Only egg trays: standard drum or flip plate machine
  • Multiple products: reciprocating machine for flexible molds
• Local Climate
  • Sunny and dry: natural drying saves energy
  • Humid or rainy: choose mechanical drying for stable output

Get Your Egg Carton Machine Free Quote & Solution

Why Choose YG’s Egg Carton Machine For Your Business

YG’s egg carton machine is built for reliability, high efficiency and easy maintenance. It meets the real needs of emerging markets.

• High output up to 10,000 pieces per hour
• Eco‑friendly, uses waste paper and reduces plastic waste
• Simple operation, low training cost
• Low maintenance, long service life
• Suitable for Africa, Latin America and Muslim countries

These benefits make YG’s egg carton machine the smart choice for growing businesses in Africa, Latin America, and Muslim countries. Contact us today to learn how we can help you boost production and reduce costs.
