A road line marking machine is specially used to draw clear and long-lasting traffic lines and functional markings on roads, parking lots, sports fields, factory floors, airports, and other ground surfaces. With the rapid development of urban transportation, facility management, and infrastructure construction, road markings need to be regularly laid and updated to ensure traffic safety and orderly management. A road line painting machine is an essential tool for this task. Of course, when you need to remove old or invalid markings, we also provide road marking removal machines for you to clean the surface before remarking. You can choose from cold paint marking machines, thermoplastic striping equipment, and two-component road marking machines. In addition, there are thermoplastic melt kettles, thermoplastic preheaters, and other supporting equipment to improve your construction efficiency. If you need it, please feel free to contact us!
Road Marking Machine parameter

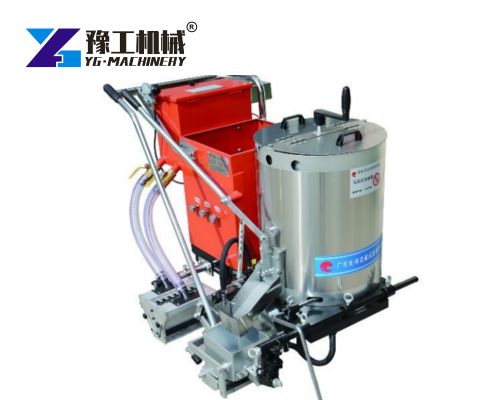

| Model | YG-CK360S | YG-CK380S |
| Thermoplastic Tank | synchronous clutch spreading, equipped with a speed-adjustable gear shifting device, single/double spreading can be selected according to needs, 50-200mm | synchronous clutch spreading, equipped with a speed-adjustable gear shifting device, single/double spreading can be selected according to needs, 50-200mm |
| Glass Bead Container | 10kg/box | 10kg/box |
| Adjustable glass bead spreader | Ensure the machine is moving in a straight line or turning freely on the curved road | Ensure the machine is moving in a straight line or turning freely on a curved road |
| Rear Wheel Directional Device | 100kg, double stainless steel heating insulation barrels, plug-in manual mixer devices, and removable devices | Ensure the machine moving in a straight line or turning freely on a curved road |
| Brake | Using a drum brake, you can adjust the brake tension | Using a drum brake, you can adjust the brake tension |
| Marking width | Standard 150mm marking bucket 100mm、150mm、200mm、250mm、300mm、400mm、450mm (at customers’ option) | Standard 150mm marking bucket 100mm、150mm、200mm、250mm、300mm、400mm、450mm (at customers’ option) |
| Battery Capacity | 15AH | 15AH |
| Battery Voltage | 48V lithium battery | 48V lithium battery |
| Driver Speed | 1-8km/hour | 1-8km/hour |
| Working Duration | The machine can mark road lines24 hours after charging the battery, 5 hours | Ensure the machine is moving in a straight line or turning freely on a curved road |
| Dimensions | 1210X970X1070mm | 1200X970X1100mm |
| Net weight | 130kg | 100kg, double stainless steel heating insulation barrels, plug-in manual mixer devices, and removable devices |
Road Paint Machines – Types & Differences
Road line painting machines are classified into the following main types to meet different construction needs:
• Hand Push Type: Lightweight, flexible, and easy to operate; suitable for small area markings such as small parking lots, factory floors, and narrow lanes.
• Self-propelled Type: Powered by engine or electric drive, with high construction efficiency; suitable for medium and large area road and site marking.
• Thermoplastic Marking Machine: Specialized for hot melt coating construction, with strong wear resistance and long service life; widely used in highway and municipal road markings.
• Cold Spray Road line Marking Machine: Uses room temperature coating for direct spraying, fast construction speed; suitable for temporary markings and various conventional ground lines.
High Pressure Airless Cold Paint Spray Road Marking Machine：Adopts high-pressure airless spraying for cold coating atomization, uniform line spraying; suitable for large area road construction, urban rapid transit lines and logistics park overall markings.
• Truck mounted cold paint road marking machine：Mounted on vehicles for high-speed mobile marking, large-scale operation capacity; suitable for highway whole-line marking, intercity expressway reconstruction and national trunk road maintenance.

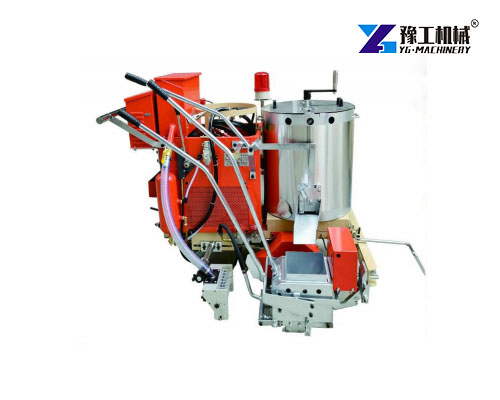

• Hot Melt Vibration Road Marking Machine:Melts coating by heating for raised vibration lines, strong skid resistance; suitable for deceleration zones, highways and warning road markings.
Road Striping Machine Core Functions and Advantages
• High Efficiency: Large-capacity paint tanks and automatic feeding systems enable extended continuous operation and rapid coverage.
• Multi-Material Compatibility: Supports water-based paints, acrylics, thermoplastic materials, and reflective granules, adapting to daytime and nighttime applications as well as various substrates (asphalt, concrete, turf).
• Adjustable Width and Thickness: Adjustable nozzles and scrapers meet various width and thickness standards (e.g., lane lines, guide lines, court boundaries).
• Eco-Friendly and Energy-Efficient: Electric or low-emission engines, combined with low-VOC coatings, minimize environmental pollution.

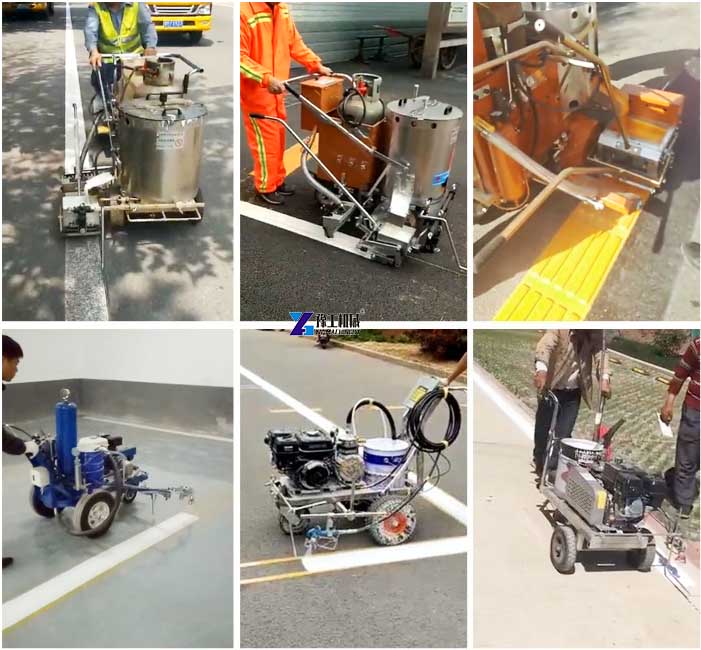

Road Marking Paint Machine Typical Application Scenarios
• Urban Roads and Parking Lots: Lane dividers, parking spaces, no-parking zones, speed bump markings, etc.
• Logistics and Factory Workshops: Forklift aisles, hazard zones, partition lines, and safety warning lines.
• Sports Fields and Schools: Track and field lanes, soccer/basketball court sidelines, volleyball boundaries, etc., requiring fine, durable lines.
• Airports and Ports: Taxiway markings, aircraft parking bay lines, cargo yard partition lines.
• Temporary Events and Competitions: Rapid setup of competition venues and guidance routes.
How to Choose the Right Road Striping Equipment
• Identify the application scenario and area: Hand-pushed electric road line marking machine models are suitable for small parking lots; self-propelled or tucked-mounted high-capacity models are required for large-area roads or airports.
• Paint compatibility: Select a model with a spray system and high-temperature-resistant components that match the planned paint type (thermoplastic, acrylic, or water-based).
• Power Source and Run Time: Electric models are suitable for environmentally sensitive areas, while gasoline/diesel models are ideal for remote job sites and extended continuous operation.
• Ease of Maintenance and Spare Parts Availability: Choose a supplier with universal parts and a comprehensive after-sales network to ensure low long-term operating costs.
• Scalability: Determine whether the system supports upgrades for reflective bead application, hot-melt guns, wide-width extensions, or automatic navigation.
A One-Stop Marking Road Striping Machine Manufacturer — YG Machinery
YG Machinery-your reliable one-stop road line marking machine partner. For years, we’ve engineered a full range of push-type, self-propelled, trailer-mounted & hot-melt machines, fully customizable to your site, coating & precision needs. Equipped with premium components, our two-component road marking machine deliver ±1–3mm accuracy for roads, airports, and lots. Our modular design cuts costs and enables easy upgrades, backed by a 1-year warranty, fast after-sales, and OEM options. With proven successful cases, we offer stable performance & high value. Contact us today for your free on-site assessment & competitive quote!
Frequently Asked Questions (FAQ)
A: Thermoplastic markings offer superior abrasion resistance and are suitable for high-traffic roads; water-based paint is environmentally friendly and easy to apply, though its durability is slightly inferior to thermoplastic.
Standard thermoplastic coating: 1 ton consists of 40 bags, each weighing 25 kg. Each bag covers 5.5 square meters, so 1 ton covers a total of 220 square meters. Additionally, 1 ton of thermoplastic coating requires 4 bags of glass beads and 1 bucket of primer; Standard vibro-applied coating: 1 ton covers 120 square meters; Cold-spray coating: 1 ton consists of 40 buckets, each weighing 25 kg, with each bucket covering 70 square meters. When applying cold-spray coating, it is typically mixed with thinner in a 1:2 ratio; thinner is available in 7-kg or 10-kg containers.
A: After spraying, apply reflective glass beads or micro-reflective particles to ensure even distribution and full integration with the coating.
A: Typically suitable for small to medium-sized areas (hundreds to thousands of square meters); for larger areas, we recommend self-propelled or trailer-mounted models.
