Hydraulic Pile Breaker

A hydraulic pile breaker is an excavator-mounted construction tool used to break and cut concrete pile heads quickly and safely. It is widely used in building foundations, bridge projects, and infrastructure construction. It features high efficiency, stable performance, and no damage to inner steel bars. If you need reliable pile breaking equipment, contact YG for more professional product details.

Request Custom Hydraulic Pile Breaker Solution

Hydraulic Pile Breaker Parameter

Module Number	PCS	4	8	9	10	11	12	13	14	15	16	17	18
Combination of the total weight	KG	1600	2640	2970	3300	3630	3960	4290	4620	4950	5280	5610	5940
Pile diameter range	mm	400-600	600-800	800-1000	1000-1150	1150-1300	1300-1500	1500-1650	1650-1800	1800-1970	1970-2200	2200-2360	2360-2500
Hydraulic excavator	T	20T-30T			30T-40T				Hydraulic system/pump station
Max.Thrust		300KN		Max.Cylinder required		20L/min		Machinery Tonnage		≥20T		Location pinΦ35
Max.Cylinder Trip		300mm		Chisel diameter		110mm		Singlemodule weight		335KG
Max.Cylinder Pressure		300MPa		Max.Hoist Capacity		≤500mm		Singlemodulesize		1015*865*340mm

Pile Breaking Machine Working Principle

Pile breaking machine uses synchronous radial pressure from oil cylinders. The hydraulic system pushes oil cylinders to clamp and squeeze pile heads. The concrete cracks and breaks quickly. The power can come from excavators or separate hydraulic pump stations. Workers only need to control the machine, no heavy manual labor.

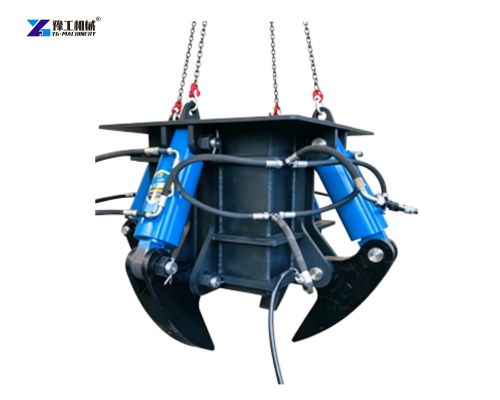

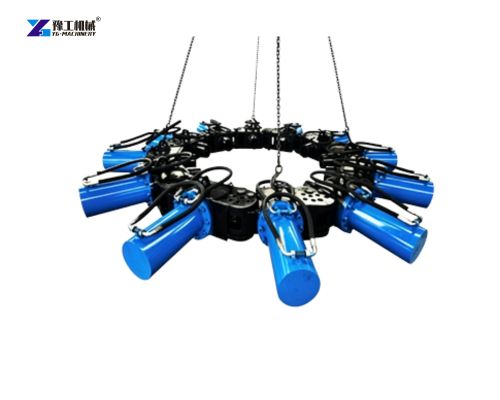

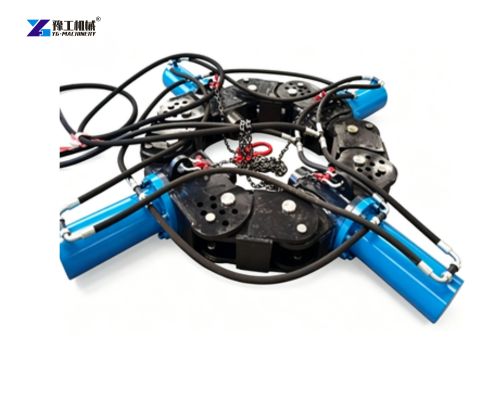

Concrete Pile Crusher Types

Advantages Of Using Hydraulic Pile Breaker

• Driven by high-pressure hydraulic oil, stable and strong output for heavy-duty pile breaking.
• Breaks pile heads in minutes, much faster than manual work with jackhammers or chisels.
• Modular design, easy to assemble, disassemble and transport between job sites.
• Works for round piles, square piles and special-shaped piles, covering most foundation projects.
• No damage to steel bars inside the concrete pile, keeping rebar intact for further construction.
• Low noise and vibration, safe and environmentally friendly for urban and residential areas.
• High adaptability: compatible with most 20–40 ton excavators, also supports independent hydraulic pump stations.
• Durable alloy steel body and wear-resistant cutting teeth, long service life under harsh working conditions.
• Simple control system, one-person operation, reducing labor risk and improving site safety.

Check Compatibility With Your Excavator

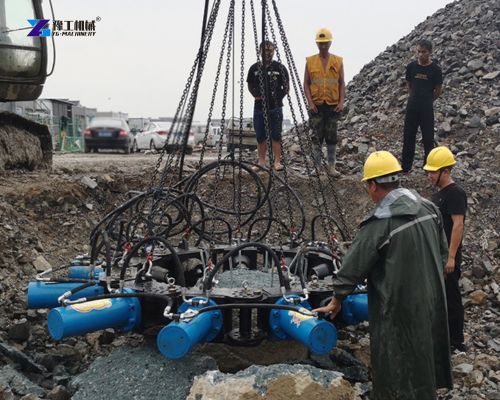

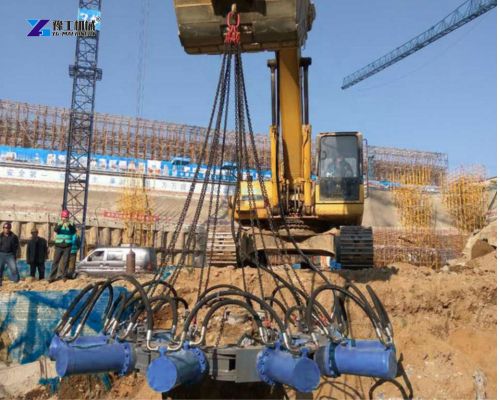

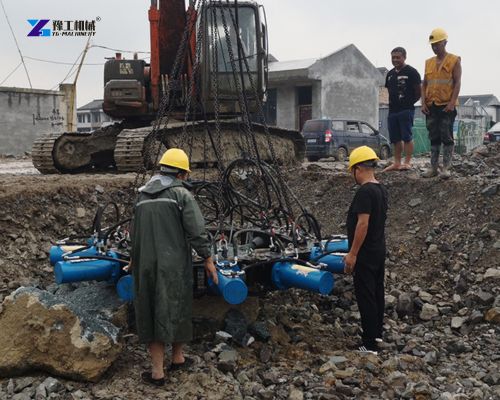

Concrete Pile Breaker: Application Scenarios

Concrete pile breaker is widely used in many construction fields. It is a must-have tool for modern foundation projects.

• Building foundation pile treatment
• Bridge pile head breaking
• Road and railway foundation works
• High-speed rail and subway foundation projects
• Residential and commercial building construction

Check Compatibility With Your Excavator

How To Choose The Right Hydraulic Pile Breaker

Choosing the right model ensures good working effect.

• Confirm pile type: round, square or special-shaped
• Check pile diameter, concrete strength and quantity
• Choose modules based on pile size (160 or 180)
• Select power way: excavator or pump station
• Provide working site photos for best matching

Why Choose YG Hydraulic Pile Breaker

YG is a professional manufacturer with independent R&D and production capacity. We provide strict quality control, stable performance, factory direct price and full after-sales support. Our products are exported to Europe, America, Southeast Asia and the Middle East, trusted by global customers.

Check Compatibility With Your Excavator

Contact YG For Professional Pile Breaking Solutions

YG is a reliable factory focusing on excavator attachments and hydraulic pile breakers. We offer customized models, fast delivery and competitive wholesale prices. If you need high-quality pile breaking equipment, contact us now for the best solution and official quotation.
