A diamond core drilling rig is a powerful tool used to get high-quality rock samples from deep underground uses hydraulic power. It uses a diamond bit to cut through hard rock and bring up a solid cylinder of stone called a core. This is very important for mining companies and engineers who need to know what is hidden under the earth. Want to know more details? Contact us now!
Get a Free Custom Quote for Your Diamond Core Drilling Rig Needs
Technical Specifications Of YG Series Core Drilling Machine For Mining
The following table shows the different models available from YG Machinery. These machines are designed to meet different depth and power requirements.
| Model | YG-130 | YG-180 | YG-200 |
| Drilling depth (m) | 130 | 180 | 200 |
| Hole diameter(mm) | 220 | 220 | 325 |
| Final hole diameter(mm) | 75 | 75 | 75 |
| Drill pipe diameter (mm) | 42-60 | 42-60 | 42-60 |
| Drilling angle (°) | 90-75 | 90-75 | 90-75 |
| Supporting power（kW） | 13.2=24P | 13.2=24P | 14.7 |
| Weight(kg) | 920 | 955 | 1150 |
| Size(mm) | 2400*950*1400 | 2400*950*1400 | 2700*950*1770 |
Get a Free Custom Quote for Your Diamond Core Drilling Rig Needs
Key Components Of Professional Diamond Drilling Equipment
The quality of diamond drilling equipment depends on its parts. Every YG core drilling rig comes with a high-performance diesel engine. These engines are turbocharged and provide enough torque for deep-hole drilling.
The hydraulic system is the “heart” of the rig. It includes an air-cooling system to prevent the machine from getting too hot during long working hours. By choosing our diamond drilling equipment, you get a machine that is built to last in harsh environments like high mountains or hot deserts.
Diamond Core Drilling Rig Applications
These machines are built to work in many different areas:
· Searching for metal and non-metal minerals.
· Engineering surveys for big construction projects.
· Hydrological investigations to find water sources.
· Oil and gas exploration in deep layers.
Get a Free Custom Quote for Your Diamond Core Drilling Rig Needs
How To Operate A Diamond Core Drilling Rig Correctly
Operating a diamond core drilling rig involves six main steps to ensure the best results and safety on site.
1.Preparation: Level the ground and set up the mud pits and pipes.
2. Setting the Casing: Place the base casing to prevent the hole from collapsing..
3. Formal Drilling: Connect the 1.5m drill rods and start cutting.
4. Core Retrieval: Use the wireline system to pull the core out of the hole.
5. Logging: Arrange the cores in order and keep detailed records..
6. Finishing: Pull out the tools, seal the hole with cement, and clean the site.

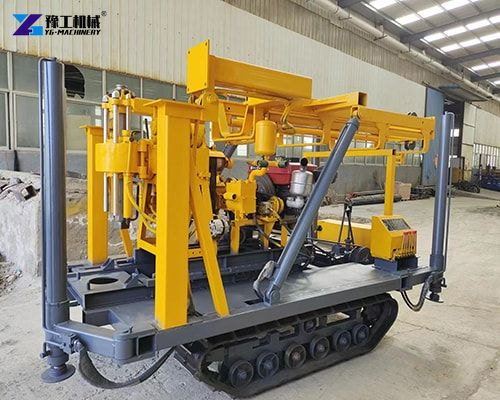

Why Choose YG Diamond Core Drilling Machine For Mining Operations
A core drilling machine for mining must be strong and easy to use. Our YG series uses a full hydraulic transmission system. This means the machine moves smoothly and is very stable while drilling deep holes.
One of the best things about this core drilling machine for mining is the “touch-the-ground” tower design. This design makes the machine very firm on the ground, so it does not shake even at high speeds.
Here are some other benefits:
· Dual Operation: You can use manual controls or a remote control. This keeps the operator safe.
· Flexible Layout: The machine is light and easy to maintain.
· High Torque: It has strong power to break through very hard rock layers.
· Wireline Core Technology: This allows for fast core retrieval without pulling out all the drill pipes.
How to Make Diamond Drilling Equipment For Better Efficiency
Good diamond drilling equipment saves time and money. Our machines use a telescopic mast that does not need a separate derrick. This makes the equipment very easy to move between different job sites.
The diamond drilling equipment also features a stepless speed control. This allows the operator to change the rotation speed based on the type of rock they are cutting.
Common sizes used with this equipment include:
· NQ: Bit size 75.7mm, Core size 47.6mm.
· HQ: Bit size 96mm, Core size 63.6mm.
· NTW: Bit size 75mm, Core size 56mm.
Get a Free Custom Quote for Your Diamond Core Drilling Rig Needs
Selecting The Right Model For Your Projects
Choosing the right diamond core drilling rig depends on your goals. If you are working on a small project or a building site, a smaller model like the YG-130 is perfect. It is lighter and easier to transport. For big mining exploration, you might need the YG-200. These can reach very deep layers where the most valuable minerals are hidden.
You should also think about the ground. If you are drilling in soft soil, you might use the SPT (Standard Penetration Test) tools. For hard rock, the diamond wireline system is a must. Our team can help you pick the best configuration based on your budget and the depth you need to reach. This makes sure you don’t spend too much money on a machine that is bigger than you need.
