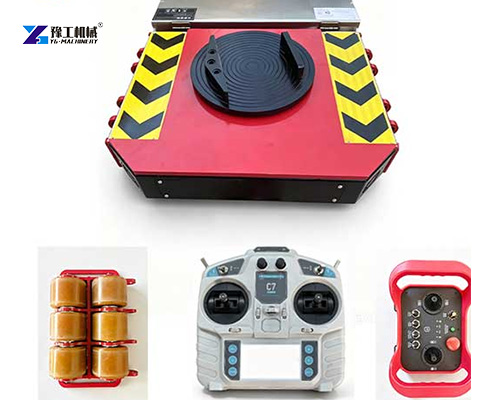

An electric transfer cart is a battery-powered handling machine used to move heavy materials, machinery, steel structures, and equipment inside factories and warehouses. It is commonly used when forklifts or manual handling are not practical. With high load capacity, low-speed control, and wireless operation, it offers a safer and more flexible way to transport heavy loads. YG manufactures electric transfer carts from 10 to 60 tons and can customize the cart according to your load, route, floor, and working conditions.
Get a Free Electric Transfer Cart Quote
YG Electric Transfer Cart Specifications
The following table provides a quick reference for common YG configurations.
| Model | YG-10 | YG-20 | YG-30 | YG-40 | YG-50 | YG-60 |
| Dimension（mm） | 500*550*145 | 670*620*165 | 740*640*185 | 810*800*182 | 810*800*182 | 1110*880*185 |
| Motor(2 sets with brake) | 500w | 750w | 1000w | 1 500w | 2000w | 3 000w |
| Controller | Dual driver D2T80A | Dual driver D2T80A | Dual driver D2T100A | Dual driver D2T200A | Dual driver D2T200A | Dual driver D2T200A |
| Battery | 48V 30AH (ternary lithium ) | 48V 60AH (ternary lithium or lithium iron phosphate) | 48V 60AH (ternary lithium or lithium iron phosphate) | 48V 120AH (ternary lithium or lithium iron phosphate) | 48V 120AH (ternary lithium or lithium iron phosphate) | 48V 100AH (ternary lithium ) |
| working current | 25A | 60A | 60A | 150A | 150A | 150A |
| Maximum towing weight | 10t | 20t | 30t | 40t | 50t | 60t |
| Plate | 10 mm Q355 steel | 10 mm Q355 steel | 12 mm Q355 steel | 16 mm Q355 steel | 16 mm Q355 steel | 16 mm Q355 steel |
| Drive wheel | 4 | 4 | 4 | 4 | 4 | 8 |
These figures are reference values. Actual performance depends on the load, floor, route, travel distance, and working cycle.
If your requirements do not match a standard model, YG can recommend a customized configuration.
Get a Free Electric Transfer Cart Quote
How Does an Electric Transfer Cart Work?

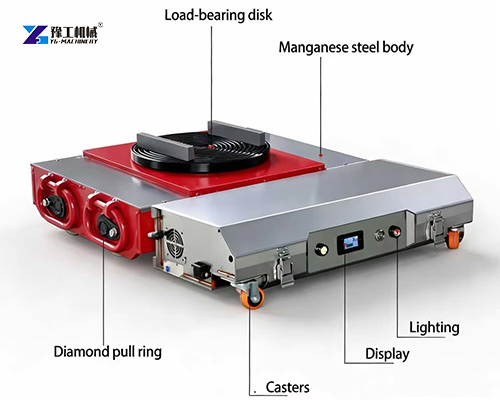

An Electric Transfer Cart uses a battery, electric motor, controller, wheels, frame, and braking system to move heavy loads.

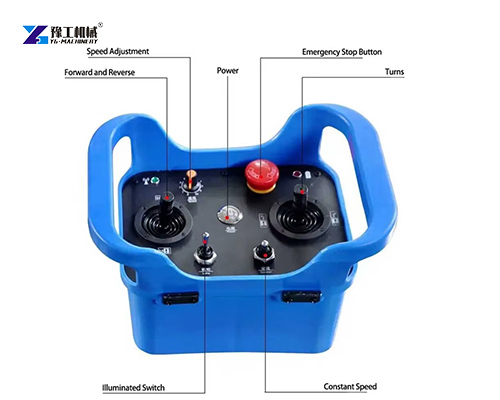

The battery supplies power to the drive motor. The controller manages starting, stopping, speed, and direction. A wireless remote control allows the operator to control the cart from a suitable position.
YG models can use 48V battery systems and offer adjustable speeds of about 2–10 m/min. This relatively low speed is useful when large equipment must be positioned accurately.
For heavy-duty applications, smooth movement is often more important than high speed.
Why Choose a Battery Powered Machine Skate?
A Battery Powered Machine Skate is a practical solution when heavy equipment needs to move without a fixed power cable.
Compared with manual skates, the powered design reduces physical labor. Compared with cable-powered systems, a battery-powered cart gives operators greater freedom during movement.
Key advantages include:
- No trailing power cable
- Wireless remote operation
- Reduced manual handling
- Flexible movement inside workshops
- Suitable for repeated heavy-load transport
- Easy integration into different production areas
For example, a factory may need to move a 20-ton machine several times a week. A battery-powered solution can make this task faster and more consistent.
However, battery capacity should be selected according to the load, travel distance, working hours, and operating frequency.
Get a Free Electric Transfer Cart Quote
How to Choose Battery Powered Transfer Carts?
Choosing battery powered transfer carts should start with the actual working conditions.
1. Load Capacity
Choose a cart based on the maximum load, not only the average load. It is better to have reasonable capacity margin for future production needs.
YG provides models from approximately 10 to 60 tons.
2. Platform Size
The platform must provide stable support for the load. Check the equipment length, width, weight distribution, and center of gravity before ordering.
3. Travel Distance
Short-distance movement requires different battery capacity from continuous long-distance transport.
Tell the manufacturer the approximate distance per trip and the number of trips per day.
4. Floor and Route
Floor condition is especially important for heavy carts.
Check whether the cart will run on concrete, steel plates, uneven floors, slopes, or other surfaces. Also consider turning space if the cart needs to change direction.
5. Control Method
Wireless remote control is useful when the operator needs a clear view of the load during movement.
For complex applications, steering and positioning requirements should be discussed with the manufacturer before production.
A useful RFQ should include:
Load + platform size + travel distance + floor condition + working hours + route + control requirements
Get a Free Electric Transfer Cart Quote
Steerable Transfer Trolley for Flexible Movement
A steerable transfer trolley can be useful when a factory needs more route flexibility.
Traditional rail systems work well on fixed routes. But some workshops need to move equipment between different areas or work around existing production lines.
In these cases, a steerable or trackless design may be more suitable.
Before selecting this type of cart, check:
- Available turning space
- Floor strength and flatness
- Maximum load
- Required travel distance
- Positioning accuracy
- Workshop layout
The key point is simple: capacity alone does not determine whether a cart is suitable.
Where Are Electric Transfer Carts Used?
Electric transfer carts are widely used for internal heavy-load handling.
Typical applications include:
- Manufacturing plants
- Steel processing workshops
- Machinery factories
- Shipbuilding facilities
- Warehouses
- Equipment installation projects
- Production line material transfer
For example, a machinery factory may use a 40-ton cart to move large equipment between assembly and testing areas.
The cart can operate at controlled speed and stop at designated positions. This is useful when the final task involves equipment installation or alignment.
What Can YG Customize?
Different factories have different handling requirements. A standard cart may not always be the best solution.
YG can discuss customization of:
- Load capacity
- Platform dimensions
- Battery capacity
- Motor power
- Wheel configuration
- Steering system
- Remote control
- Platform structure
- Special working conditions
For overseas buyers, sending photos, drawings, equipment dimensions, or floor information can make technical communication much easier.
Instead of sending only “I need a 30-ton transfer cart,” provide the actual working conditions. This allows YG to recommend a more suitable design and prepare a more accurate quotation.
Electric Transfer Cart FAQ
What is an Electric Transfer Cart used for?
It is mainly used to transport heavy machinery, steel structures, molds, equipment, and other large loads inside industrial facilities.
What capacity can an Electric Transfer Cart handle?
YG provides models covering approximately 10–60 tons. Higher or special capacities can be discussed based on project requirements.
How long can a battery powered transfer cart operate?
Runtime depends on battery capacity, load, travel distance, floor conditions, and working frequency. Typical YG configurations can provide about 2–6 hours of continuous operation.
Can a transfer cart operate without rails?
Yes. Trackless and steerable designs can provide greater flexibility where fixed rails are unsuitable. The correct design depends on the floor and route conditions.
Can YG customize the transfer cart?
Yes. YG can customize the capacity, platform size, battery, motor, steering, control system, and other components according to the application.
Work With YG for Your Transfer Cart Project
The right electric transfer cart should match your actual working conditions. Load capacity is only one part of the decision.
Travel distance, platform size, floor condition, battery requirements, speed, route, and control method all affect the final design.
YG is a professional transfer cart manufacturing factory. We provide technical support, model selection, customization, and production for overseas industrial buyers.
If you are planning a heavy-load handling project, send YG your requirements and let our team recommend a suitable solution.
