Have you ever wondered how your electric car gets its power? EV charging stations are like smart gas stations for the future. Instead of liquid fuel, they use electricity to fill up your car’s battery. These stations take power from the local electrical grid and change it so your car can use it safely.
Most EV Charging Stations follow a simple process:
They connect to your car through a heavy-duty cable and a special plug.
The station “talks” to your car to see how much power the battery needs.
It starts the flow of electricity only when a safe connection is made.
It stops automatically when the battery is full or if you unplug it.
YG EV Charging Stations Parameter
| Product number | YG-60KW | YG-80KW | YG-120KW | |
| Detailed specification | rated power | 60KW | 80KW | 120KW |
| Charging equipment | User Interface | 7-inch LCD color display touchscreen | ||
| installation | Floor-standing/Down in down out | |||
| Routing mode device size | 635*423*1600(mm) | |||
| Input voltage | AC380V±20% | |||
| Input frequency | 45~65Hz | |||
| The output voltage | 200-750VDC | |||
| Single gun output current range | 200V-500V | 200V-500V | 200V-500V | |
| The output voltage | 0-90A | 0-120A | 0-160A | |
| Single gun output current range | 200V-750V | 200V-750V | 200V-750V | |
| The output voltage | 0-60A | 0-80A | 0-107A | |
| Charging equipment | Single gun output current range | 0-112A | 0-150A | / |
| Cable length | 5m | |||
| Electrical index | Measurement accuracy | Level 0.5 | ||
| Current limit protection value | ≥110% | |||
| Voltage regulation accuracy | ≤±0.5% | |||
| Steady flow accuracy | ≤±1% | |||
| Ripple coefficient | ≤±0.5% | |||
| effectiveness | ≥94.5% | |||
| Power factor | ≥0.99 (50% load or more) | |||
| Harmonic content THD | ≤5% (50% load or more) | |||
| Feature design | HMI | 7-inch LCD color display touch screen, LED indicator | ||
| Charging mode | Auto full / fixed power / fixed amount / fixed time | |||
| payment method | Credit card payment / APP payment /scan code payment | |||
| Communication Interface | Ethernet 2/3/4G (optional) | |||
| Safety design | Executive standard | GB\T 20234, GB/T 18487, GB/T 27930, NB\T 33008 | ||
| security function | Charge gun temperature detection, overvoltage protection, undervoltage protection, overload protection, short circuit protection, grounding protection, over-temperature protection, low-temperature protection, insulation monitoring protection, polarity reverse connection protection, lightning protection, emergency stop protection, leakage protection | |||
| Environmental indicators | Operating temperature | -25°C~+50°C | ||
| Working humidity | 5%~95% non-condensing cream | |||
| Working elevation | <3000m | |||
| Protection level | IP54 | |||
| cooling method | Forced air cooling | |||
| Noise control | ≤60dB | |||
| MTBF | 100,000 hours | |||
Different Types Of An EV Car charging station
Not every ev car charging station is the same. There are two main ways they work: AC (Alternating Current) and DC (Direct Current). AC stations are usually slower and better for home or office use where you stay for a long time. DC stations are much faster and are found along highways for quick stops.
A high-quality ev car charging station offers different power levels to fit your needs:

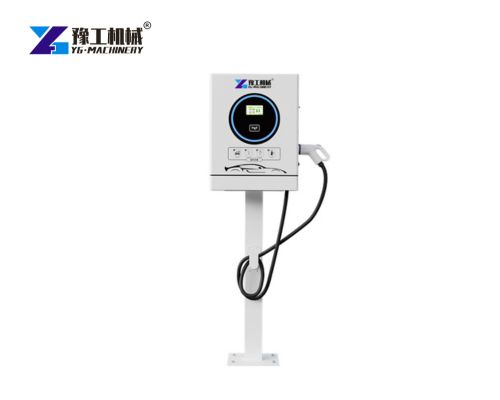

- Portable AC Chargers: These are small and light, so you can carry them in your car. They usually provide 3.5kW or 7kW of power.

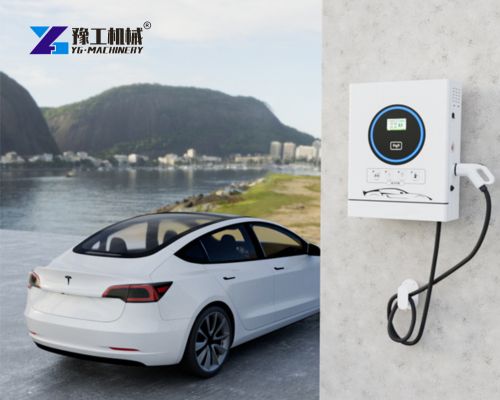

- Wall-box AC Chargers: These are fixed to a wall, often at home or in apartment garages. They are easy to use and very safe.

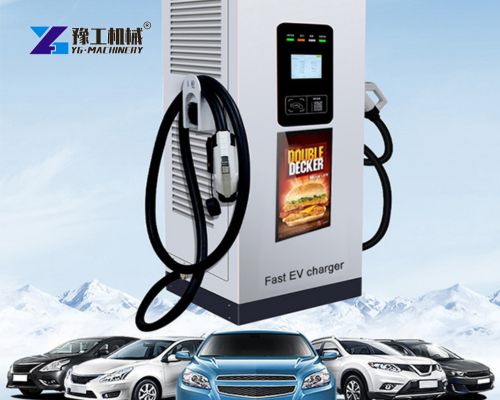

- DC Fast Chargers: These are large machines that can give a car a lot of power very quickly, ranging from 20kW up to 160kW or more.
Vehicle Charging Station Smart Features
A modern vehicle charging station is not just a plug; it is a smart computer. These machines use advanced technology to make charging easy and helpful for the owner. You can often control them with your phone or a special card.
Here are some smart functions you might find in a vehicle charging station:

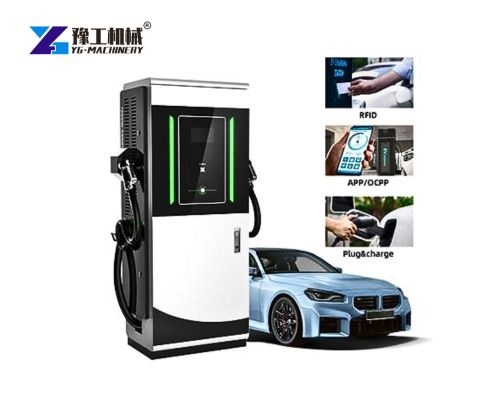

- Multiple Ways to Pay: Many stations allow you to pay using an IC card, a mobile app like WeChat or Alipay, or even a QR code.
- Remote Monitoring: Owners can check the station’s status and see how much electricity is being used through the cloud.
- Scheduled Charging: You can set the station to start charging late at night when electricity is cheaper.

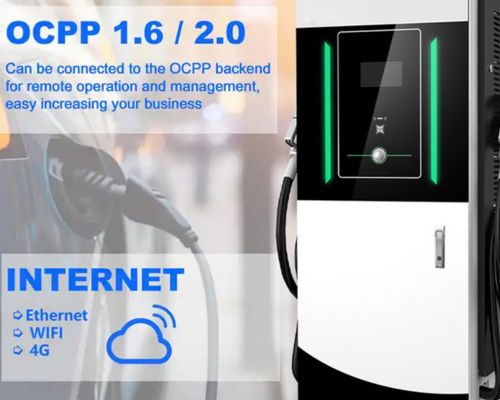

- Internet Connection: Most stations use 4G or Ethernet to stay connected to a central management system.

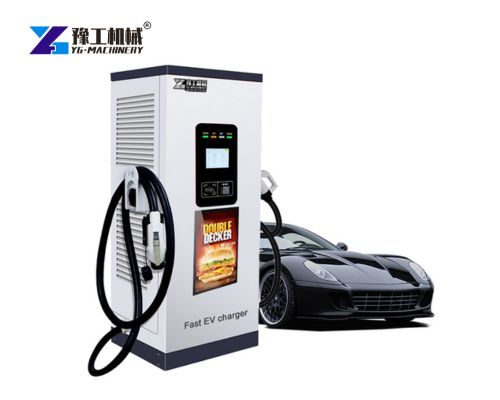

Safety Systems In An electric vehicle station
Safety is the most important part of any electric vehicle station. Because electricity can be dangerous, these machines are built with many layers of protection. They are designed to work in rain, snow, and extreme heat without any problems.
A professional electric vehicle station includes these safety shields:
- Water and Dust Protection: Many stations have an IP54 or IP65 rating, which means they are sealed against rain and dirt.
- Electrical Guards: They have built-in protection against short circuits, over-voltage, and over-current to keep your car’s battery safe.
- Temperature Control: If the station gets too hot, it will slow down or stop to prevent damage.
- Emergency Stop: Every station has a big red button to cut off all power instantly if something goes wrong.
Where To Find EV Recharge Stations?
You can find ev recharge stations in many different places today. As more people buy electric cars, these stations are appearing everywhere to make life more convenient. They are built to be tough so they can sit outside for many years.
Common locations for EV recharge stations include:
- Public Buildings: Shopping malls, office buildings, and hotels often have slow chargers for guests.
- Transport Hubs: Bus stations and large parking lots use powerful DC stations to keep commercial fleets moving.
- Home and Residential: Many people install a small station in their own garage or at their apartment complex.
Why Choose YG as Your EV Charging Station Supplier
As a professional factory manufacturer dedicated to EV charging solutions, YG Equipment supplies the full range of charging stations mentioned above, including portable AC chargers, wall-mounted home chargers, and commercial DC fast charging stations. All our products adopt premium materials and strict quality standards, supporting intelligent control, multiple safety protections, and versatile application for residential, commercial, and public charging scenarios. We offer one-stop customized design, wholesale supply, and reliable after-sales service, making us your ideal long-term partner for EV charging station procurement. Contact us today for more details and best offers!
