In many rural areas, groundwater is an important water source for homes, farms, livestock, and irrigation. When there is no reliable municipal water supply, a well can provide access to underground water.
But how does rural well drilling work? It involves more than simply drilling a hole into the ground. The process includes finding a suitable groundwater source, drilling through underground formations, installing the well structure, and using a pump to bring water to the surface.
Request Small Water Well Drilling Rig Price
1. Find a Suitable Groundwater Source
The first step is to understand the local geological conditions.
Rainwater can gradually move through soil, sand, gravel, and cracks in rocks. Some of this water is stored underground in water-bearing formations called aquifers.

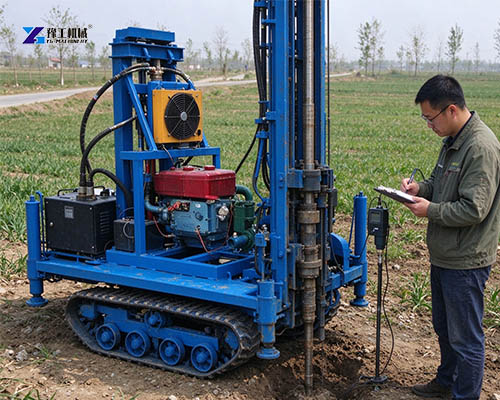

Before drilling, contractors may study local geology, existing wells, and groundwater information. This helps determine the possible water depth, underground formations, and suitable drilling method.
Finding the right location can reduce unnecessary drilling and improve the chance of getting a reliable water supply.
Request Small Water Well Drilling Rig Price
2. Drill Through the Underground Formation
After selecting the drilling location, a water well drilling machine is used to create a borehole.
Different drilling methods can be used depending on the ground conditions. Rotary drilling uses a rotating drill bit to break and remove soil or rock, while percussion drilling uses repeated impact to penetrate hard formations.
During drilling, operators need to monitor the soil and rock conditions. Different formations may require different drilling tools and methods.
The main goal is to reach a suitable aquifer while keeping the borehole stable.
Request Small Water Well Drilling Rig Price
3. Install Well Casing and Screen
After drilling, the well needs to be properly constructed.

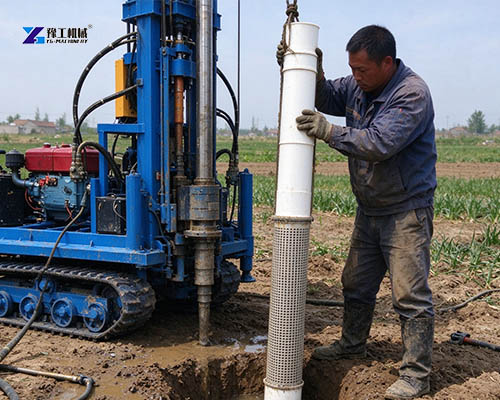

Well casing supports the borehole and helps prevent the surrounding soil or rock from collapsing into the well. A well screen is normally installed in the water-bearing section.
The screen allows groundwater to enter the well while helping reduce the amount of sand and sediment entering the pumping system.
The space around the casing may also be sealed to reduce the risk of surface water and contaminants entering the well.
Request Small Water Well Drilling Rig Price
4. Test the Well and Water
Finding groundwater does not mean the well is ready for use.

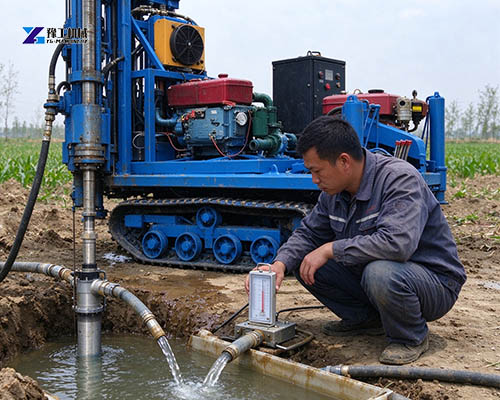

The well should be tested to determine its water yield, water level, and recovery performance. A pumping test can show how the water level changes when groundwater is being pumped.
Water quality should also be checked, especially when the well is used for drinking water.
Testing helps determine whether the well can provide enough water for the intended application and whether additional treatment is necessary.
Request Small Water Well Drilling Rig Price
5. Install the Pump
A pump is usually required to bring groundwater from the well to the surface.

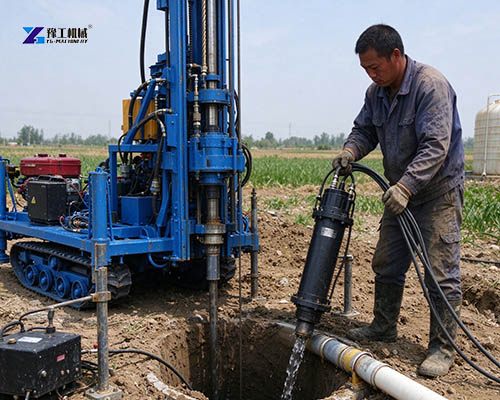

A submersible pump is commonly placed inside the well and connected to a water delivery pipe. The pumped water can then be supplied to a house, storage tank, livestock system, or irrigation equipment.
The wellhead should also be properly protected from surface water, dirt, and physical damage.
A suitable pump should match the well depth, water yield, and actual water demand.
Request Small Water Well Drilling Rig Price
6. Maintain the Water Well
A rural water well requires regular maintenance after construction.

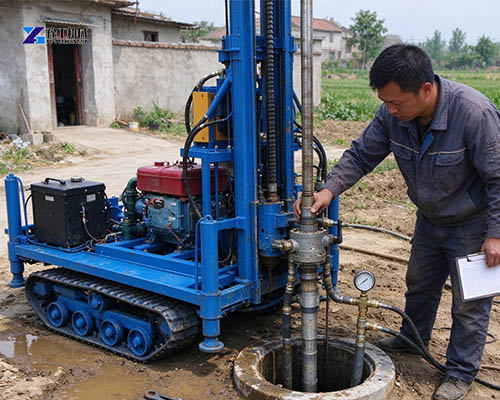

Well owners should monitor water levels, water output, pump performance, and water quality. The pump, pipes, casing, and wellhead should be inspected when necessary.
Over time, sediment, equipment wear, groundwater-level changes, or water-quality problems can reduce well performance.
Regular inspection and water testing can help identify problems early and extend the service life of the well.
Request Small Water Well Drilling Rig Price
