Metal recycling yards handle large amounts of bulky metal waste every day. Old car shells, steel drums, and metal sheets take up too much space. A professional scrap steel shredder is the core equipment to solve this problem. This machine cuts, tears, and compresses big metal waste into smaller pieces.
Smaller metal pieces are easier to transport and melt. By using steel shredder, you can save a lot of money on truck transport. It also prepares clean, high-density raw materials for steel mills. YG designs heavy-duty shredders to help you get more value from metal waste.
- Reduces Volume Instantly: Shrinks bulky metal waste by up to 70% in size.
- High Density Output: Creates uniform metal scraps that melt faster in furnaces.
- Saves Transport Cost: Lowers the number of truck trips needed to move your scrap.
Get a Free Scrap Steel Shredder Quote Now
Technical Features Of Industrial Steel Shredder
An industrial steel shredder must work under heavy loads without breaking down. YG uses high-strength steel plates to build the machine body. The internal cutting system is the heart of the machine. It uses double shafts with heavy-duty blades to pull and cut the metal waste into small fractions.
| Model | YG-600 | YG-800 | YG-1000 | YG-1200 | YG-1400 | YG-1600 | YG-1900 | YG-2200 | YG-2600 |
| Power | 4-15*2 kw | 4-22*2kw | 4-30*2kw | 4-37*2kw | 4-45*2kw | 4-75*2KW | 4-90*2kw | 4-132*2kw | 4-160*2kw |
| Spindle Model | 18-20r/min | 18-35r/min | 18-35r/min | 18-35r/min | 14-35r/min | 14-25r/min | 14-25r/min | 16-25r/min | 16-25r/min |
| Capacity | 2-3t/h | 3-5t/h | 5-8t/h | 6-10t/h | 8-12t/h | 12-18t/h | 16-22t/h | 20-26t/h | 25-60t/h |
| Broken Size | 3-10cm | 3-10cm | 3-10cm | 3-10cm | 3-10cm | 3-10cm | 3-10cm | 3-10cm | 3-10cm |
| Hopper Size | 820*900mm | 900*1000mm | 1200*1000mm | 1400*1000mm | 2000*2000mm | 2300*2000mm | 2300*2000mm | 2500*1800mm | 2425*1400mm |
| Dimensions | 2600*2000*1900mm | 2800*2000*1900mm | 3000*2000*1900mm | 3200*2000*1900mm | 4000*1700*2400mm | 5000*3000*2400mm | 6000*3500*2400mm | 7000*4000*4500mm | 8200*4000*4300mm |
The blades are made from special alloy steel. They go through professional heat treatment to last longer when cutting hard steel plates. The machine also includes a smart PLC control system. If a big piece of metal jams the machine, the system stops and turns backward automatically. This prevents motor damage.
- Heavy-Duty Blades: Made of Cr12MoV or H13 alloy steel for long-term metal cutting.
- Smart PLC Control: Auto-reverse function prevents motor overload during jams.
- Strong Gearbox: High-torque reduction gearbox ensures stable power output.
Selecting The Right Steel Shredder Machine For Your Material
Not all metal waste is the same. To find the right steel shredder machine, you must check your raw material type and thickness. For example, thin material like color steel tiles requires different blade shapes than thick metal drums.
Choosing the right model saves energy and protects your machine parts. YG provides different blade layouts and sizes to match your specific production goals.
1. Thin Metal Sheets and Bicycle Frames
For light metal waste, a medium-sized machine works best. The blades focus on fast cutting speeds to process more tons per hour. It is perfect for small and medium recycling centers.
2. Thick Steel Drums and Heavy Car Shells
This material requires maximum crushing force. The machine uses wider, thicker blades with fewer teeth to grab and tear the heavy metal. It uses a low-speed, high-torque design.
3. Mixed Aluminum and Steel Waste
When your waste contains different metals, the machine works with a sorting line. A magnetic separator can be added at the output conveyor to separate steel from aluminum automatically.
- Thickness Limit: Standard models handle metal thickness under 6mm.
- Custom Hook Options: 1-hook to 5-hook blade shapes available for different materials.
- Output Size: Finished metal piece size ranges from 40mm to 100mm.
Contact YG For A Custom Machine Selection Guide

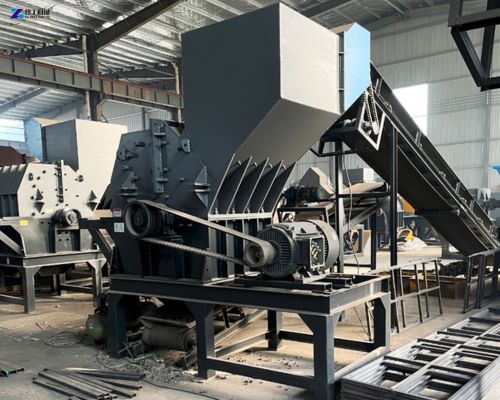

Understanding The Shredder Steel Price And Factory Cost
When buying a metal recycling machine, the shredder steel price is a key factor for your investment. The total cost depends on the machine size, motor power, and optional parts like conveyors or dust collectors. Buying directly from a manufacturer like YG helps you get clear technical support and original parts.
The price includes more than just the machine frame. High-quality alloy blades and international brand electric parts cost more upfront but save money on maintenance later. YG helps you balance your initial budget and long-term running costs by offering custom design options.
- Blade Material Choice: Standard alloy steel vs. premium wear-resistant steel.
- Power System Options: Electric motor drives or hydraulic motor drives for heavy waste.
- Accessory Setup: Optional input feeding belts and output discharge conveyors.
Request the Latest Shredder Steel Price List
Installation And Daily Operation Guidance For Buyers
Setting up a heavy scrap steel shredder requires a flat, solid concrete foundation. This prevents vibration during operation and keeps the machine aligned. YG sends clear foundation drawings and installation manuals before the machine arrives at your workshop.
Daily maintenance keeps the machine running smoothly for years. Operators must check the blade bolts every day and add grease to the main bearings regularly. Training your workers to spot worn blades early will prevent unexpected stops in production.
- Foundation Work: Requires 30cm to 50cm thick concrete base depending on machine weight.
- Lubrication Schedule: Inject heavy-duty bearing grease every 8 hours of continuous work.
- Blade Inspection: Check for cracks or loose bolts before starting the machine shift.
