The semi auto brick making machine is a special piece of equipment that uses materials like slag, fly ash, stone powder, sand, and cement to create high-quality bricks. It is often called a “burn-free” brick machine because the products do not need to be fired in a kiln. Instead, you just let the bricks dry in the sun for a short time before they are ready for use. This makes the process very eco-friendly and cost-effective for small to medium businesses.
To get the best results, you need a good material mix. A common reference is 8-15% cement, 40-55% crushed stones and stone powder, and 40-45% sand. Water should make up about 10% of the total weight. However, since raw materials vary by location, you should test and adjust the ratio during the setup phase to find the perfect balance for your project.
Specifications Of YG Semi Automatic Block Making Machine Models
Choosing the right model depends on your production goals and available power. Below is a comparison of our popular YG series models.
| Model Features | YG4-35A | YG4-35A (Hopper) | YG4-35B | YG4-35B (Hopper) | YG4-40A | YG4-40A (Hopper) |
| Molding Cycle | 35s | 35s | 35s | 35s | 35s | 35s |
| Power (kw) | 4.8 | 4.8 | 6.3 | 6.3 | 7.5 | 7.5 |
| Standard Bricks/Shift | 15,000 | 20,000 | 15,000 | 20,000 | 20,000 | 24,000 |
| Hollow Blocks/Shift | 2,400 | 3,200 | 2,400 | 3,200 | 3,200 | 3,600 |
| Machine Weight | 750kg | 780kg | 800kg | 830kg | 1100kg | 1150kg |
| Operators Needed | 2-3 | 2-3 | 2-3 | 2-3 | 2-3 | 2-3 |
How The Semi Automatic Fly Ash Brick Making Machine Works
The working principle of this machine is based on mechanical movement and high pressure. The main motor uses a belt and pulley to drive the reducer. This power moves through a coupling to a small gear shaft, which then turns a large gear. This gear rotation is the main movement of the machine.
A crank and link mechanism changes the circular motion into a vertical straight motion for the crossbeam. As the crossbeam moves up and down, it drives the material car forward and backward. This action completes two tasks at once: it fills the mold with raw material and pushes the finished bricks out. When the beam rises, a cam on the main shaft pushes the bottom pressure head to lift the molded brick out of the mold cavity. The system works in a continuous cycle of feeding, pressing, lifting, and pushing.
Key Benefits Of Using A Semi Automatic Clay Brick Making Machine
While our machines primarily use cement and fly ash, they can also be adapted for clay materials in certain configurations. Here are the main advantages of our equipment:
·Multi-Purpose Design: One machine can produce many types of bricks by simply changing the mold. You can make standard bricks, hollow blocks, color pavers, and grass-planting bricks.
·Simple Operation: These machines are designed for ease of use. You only need 2 to 3 workers to run the whole production line.
·High Durability: We use high-quality steel and advanced welding. Our machines have been sold globally for over 20 years.
·Flexible Power Options: Most models can run on 220V or 380V voltage, making them suitable for different local power grids.
Different Categories Of Block Machines
The semi auto brick making machine market offers several types of technology depending on your specific needs. Understanding these helps you choose the right investment.
·Molding Technology: Machines are divided into vibration molding, hydraulic molding, or a combination of both (vibration + hydraulic). Models like the QT3-15 or QT4-15 usually use these combined methods for higher density.
·Level of Automation: You can choose between fully automatic lines or semi-automatic machines. Semi-auto models are great because they cost less but still provide high output.
·Raw Material Focus: Depending on your local resources, you can find vacuum extrusion machines, clay brick machines, or cement brick machines.

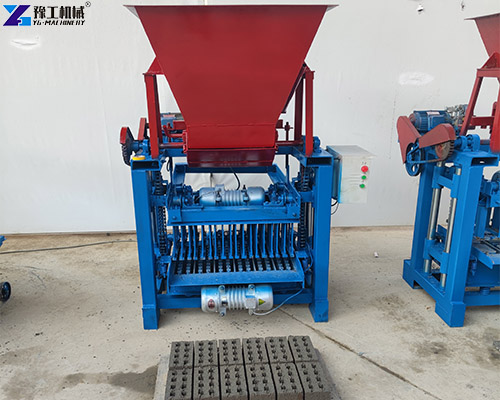

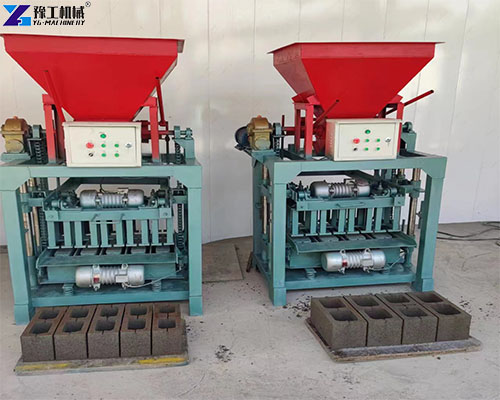

If you use a semi auto brick making machine with a hopper and conveyor belt, you can create a small production line. This setup increases your output significantly while saving on manual labor costs.
Start Your Brick Business With YG Today
Choosing the right semi auto brick making machine is the first step toward a successful and profitable construction business. With over 20 years of experience, YG Machinery provides equipment that is not only easy to operate but also built to last in tough working conditions. Whether you are producing standard bricks, hollow blocks, or colorful pavers, our machines offer the perfect balance of low investment and high output.
Don’t let high labor costs or complex technology hold you back. Our semi-automatic models are designed to give you professional-grade results with just 2 to 3 workers. From the efficient YG4-35 series to the high-capacity YG4-40A, we have the right solution for your local market needs.Ready to get a free quote? Contact us
