Spain’s landscaping, agricultural, and municipal sectors generate massive volumes of tree branches, pruning waste, and green debris each year. Disposing of this organic waste through landfill dumping incurs high transportation costs and environmental penalties. Open burning creates air quality issues and violates European Union emission regulations. Property managers and local governments need efficient, cost-effective solutions for processing branch waste on-site.

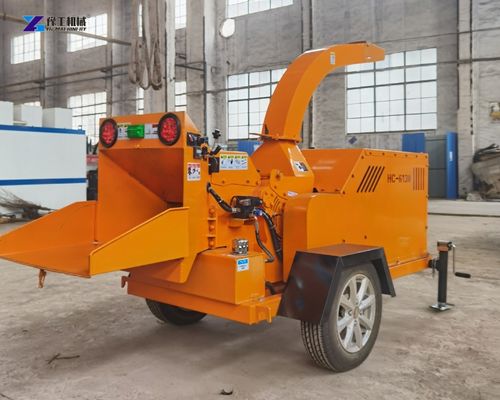

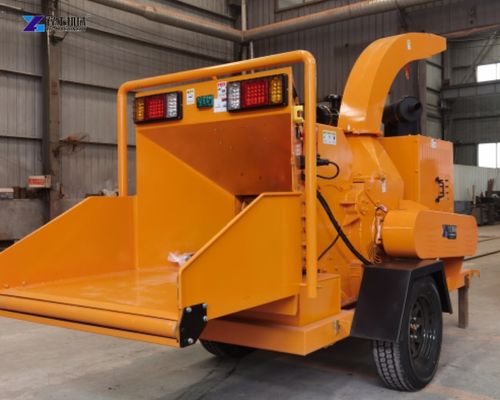

YG Machinery offered a comprehensive solution: tree branch chipper series. These robust machines convert branch waste into valuable wood chips for mulch, compost, or biomass fuel. The YG6130 to YG6175-P models offer processing capacities from 2 to 8 tons per hour, with diesel or electric power options. Horizontal hydraulic feeding systems handle branches up to 300mm in diameter, while 360° discharge directs chips precisely where needed.
This article presents two case studies – one from Spain and one from New Zealand – demonstrating how YG’s tree branch chipper solved critical green waste challenges efficiently and cost-effectively.
Product Core Parameters-OEM Support
| Model | YG6130 | YG6140 | YG6145 | YG6145-P | YG6175-P |
| Power type | Diesel or electric engine | ||||
| Capacity | 2t/h | 3t/h | 5t/h | 5t/h | 8t/h |
| Diesel engine power | 23.6kw/32hp | 40kw/54hp | 75kw/100hp | 75kw/100hp | 145kw/197hp |
| Speed (r/min) | 2600 | 2900 | 2500 | 2500 | 2500 |
| No. of Blade | 4pcs moving knives , 1pcs fixed knives | 8pcs moving knives , 1pcs fixed knives | |||
| Blade length | 155mm | 155mm | 230mm | 230mm | 260mm |
| Dia of feeding roller | 280mm | 280mm | 500mm | 500mm | 600mm |
| Feeding size | 300*180mm | 300*280mm | 450*380mm | 450*380mm | 550*430mm |
| Feeding method | Horizontal hydraulic feeding | ||||
| Feeding chain plate size | / | / | / | 1700*450mm | 3000*550mm |
| Start Method | Electric start | ||||
| 600w | 600w | 800w | 800w | 800w | |
| Battery | 12V 105aH | 24V 85aH | 24V 105aH | 24V 105aH | 24V 105aH |
| Crushing diameter | ≤130mm | ≤140mm | ≤250mm | ≤250mm | ≤300mm |
| Fuel tank capacity | 20L | 20L | 25L | 25L | 50L |
| Gear position | Intelligent control | ||||
| Tire size (Aluminum alloy hub) | 165/70R13 | 165/70R13 | 215/75R15 | 215/75R15 | 215/75R15 |
| Discharge direction | 360° | ||||
| Other accessories | Tail lights, feed lights, folding jacks | ||||
Case Study One: Spain – Municipal Green Waste Management
Client Background
A municipal waste management department in Spain oversees green waste collection and processing for a region with extensive parks, street trees, and public gardens. The department processes approximately 800 tons of branch waste annually from routine pruning and storm damage clearance.
Client Challenge
The department used an outdated branch shredder machine with limited capacity and frequent breakdowns. Processing 800 tons of waste required over 40 working days each year. The machine’s fixed discharge direction created logistical problems, requiring additional labor to move chip piles. Rising landfill disposal costs and new EU waste reduction targets forced the department to find a more efficient processing solution.
YG Solution
YG recommended the YG6145 tree branch chipper for this municipal application. This model processes 5 tons per hour with a 75kw/100hp diesel engine, handling branches up to 250mm in diameter. The 360° discharge direction allows operators to direct chips directly into collection trucks or storage piles without repositioning the machine. The horizontal hydraulic feeding system pulls branches smoothly, reducing operator fatigue. The 8 moving knives with 230mm blade length deliver consistent chip size for composting applications.
The small chipper shredder features intelligent gear control and electric start with a 24V 105AH battery. The 25L fuel tank supports full-day operation. Tail lights and feed lights enable safe operation in low-light conditions. YG provided on-site training for the department’s operators.
Client Feedback and Results
The department supervisor reported the tree branch chipper reduced processing time from 40 days to 16 days annually. The 360° discharge eliminated manual chip handling, saving two labor positions. Chip quality improved significantly, producing consistent 20–30mm particles ideal for municipal composting. The machine operated without breakdowns during the first six months. The department has since recommended this branch chipper for sale to neighboring municipalities.
Case Study Two: New Zealand – Orchard Pruning Waste Processing
Client Background
A large orchard operation in New Zealand produces apples and kiwifruit across 120 hectares. Annual winter pruning generates approximately 150 tons of branch waste. The orchard previously burned prunings on-site, but new environmental regulations restricted open burning.
Client Challenge
The orchard needed an efficient method to process pruning waste into usable wood chips for mulch and soil amendment. The operation required a portable machine that could move between orchard blocks and handle green, freshly cut branches up to 150mm in diameter. The equipment needed to operate reliably in damp conditions with minimal maintenance requirements.
YG Solution
YG supplied the YG6130 tree branch chipper for this orchard application. This model processes 2 tons per hour with a 23.6kw/32hp diesel engine, handling branches up to 130mm diameter – suitable for the orchard’s pruning waste. The compact design with 165/70R13 tires allows easy towing between orchard blocks. The 4 moving knives and 1 fixed knife with 155mm blade length produce consistent chips for mulch application.
The tree branch chipper features electric start with a 12V 105AH battery and a 20L fuel tank. The horizontal hydraulic feeding system handles green, flexible branches without clogging. The 360° discharge directs chips directly onto orchard rows as mulch. YG supplied spare blades and a maintenance kit with the machine.
Client Feedback and Results
The orchard manager confirmed the tree branch chipper transformed their waste management. The machine processes pruning waste in 2–3 days each season, compared to 10 days of burning operations previously. The wood chips provide excellent mulch, improving soil moisture retention and reducing weed growth in orchard rows. Fuel consumption averages 15–18 liters per day, significantly lower than the cost of burning permits and labor. The orchard has recommended the branch shredder machine to other growers in the region.
Diesel vs. Electric Tree Branch Chipper Comparison
| Feature | Diesel Engine Model | Electric Engine Model |
| Power source | Diesel fuel | Electrical grid connection |
| Mobility | High – suitable for remote sites | Limited – requires power access |
| Operating cost | Higher fuel cost, lower electricity | Lower electricity cost |
| Maintenance | Regular fuel and filter changes | Minimal electrical maintenance |
| Noise level | Moderate (engine noise) | Quieter operation |
| Emissions | Exhaust emissions | Zero emissions |
| Best application | Remote orchards, forests, road maintenance | Urban parks, fixed processing yards |
Application Areas of Small Chipper Shredder
Beyond municipal waste and orchard pruning, YG’s tree branch chipper is widely applicable across multiple sectors:
Landscaping and Tree Care – Process branches from tree removal, storm damage clearance, and routine landscape maintenance. The small chipper shredder reduces waste volume by up to 75%.
Forestry Operations – Chip thinning waste and logging residues for biomass fuel production. The tree branch chipper handles various wood species and moisture conditions.
Golf Course and Park Maintenance – Maintain wooded areas, process fallen branches, and produce mulch for ornamental beds. The machine improves site aesthetics and reduces disposal costs.
Tree Branch Chipper for Sale – YG Machinery
YG Machinery offers reliable tree branch chipper for sale designed for diverse project conditions in Spain, New Zealand, and worldwide. Our branch shredder machine series provides solutions for municipal waste management, orchard operations, landscaping, and forestry applications.
If you are seeking a tree branch chipper for your next project, contact YG Machinery today.
To help us recommend the right model, please provide:
- Average branch diameter and wood type
- Daily processing volume required
- Site power availability (diesel or electric)
- Desired chip size for end use
Our team provides:
- Transparent pricing with detailed quotations
- Technical support and model selection assistance
- Spare blade supply and maintenance guidance
- Global shipping with secure packaging
Contact YG Machinery to discuss your wood processing requirements and receive a tailored equipment recommendation.
