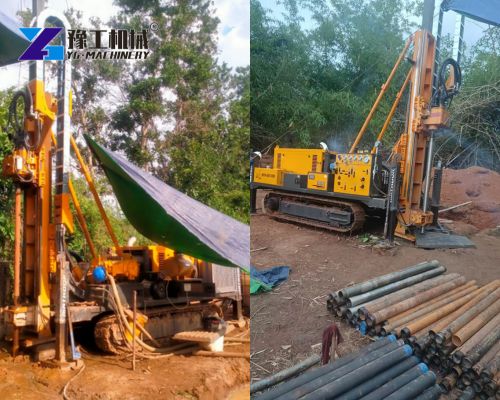

YG successfully exported a professional 800m crawler drilling rig to the Philippines. The client needed a strong crawler drill to collect perfect rock and soil samples from deep ground. They selected our powerful YG-800 models. This core exploration machine helps them get high-quality cylinder rock samples from very deep underground levels. The complete package included the hydraulic drilling machine and necessary drilling tools. It arrived safely in the Philippines and started working immediately.
Get Crawler Drilling Rig Specs & Direct Factory Quote Now
YG Crawler Drilling Rig Specifications
YG names our products based on NTW’s maximum drilling depth standards and offer a full range of solutions from 200 meters to 1000 meters.
| Parameters | YG-400 | YG-600 | YG-800 | YG-1000 |
| Drilling Depth (m) | 180 – 400 – 500 | 200 – 600 – 650 | 400 – 800 – 1000 | 500 – 1000 – 1100 |
| Rated Pressure (MPa) | 21 | 21 | 25 | 28 |
| Rated Flow (L/min) | 168 | 192 | 260 | 300 |
| Heat Dissipation Mode | Air + Water Cooling | Air + Water Cooling | Air + Water Cooling | Air + Water Cooling |
| Engine Brand | Yuchai | Yuchai | Yuchai | Cummins |
| Rated Power/Speed | 78kW / 2400r/min | 92kW / 2400r/min | 92kW / 2400r/min | 154kW / 2400r/min |
| Drilling Angle (°) | 0 – 90 | 45 – 90 | 45 – 90 | 45 – 90 |
| Lifting Force (T) | 12 | 16 | 24 | 30 |
| Feed Force (T) | 6 | 8 | 12 | 15 |
| Hydraulic Mud Pump Flow | 30 – 90 L/min | 30 – 90 L/min | 90 – 180 L/min | 90 – 180 L/min |
| Hydraulic Mud Pump Power | 4 – 7 MPa | 4 – 7 MPa | 4 – 7 MPa | 4 – 7 MPa |
| Dimensions (mm) | 4000*1900*1800 | 4000*2000*1800 | 5500*2100*2000 | 6000*2200*2400 |
| Net Weight (T) | 4.3 | 4.5 / 5.5 | 6.5 | 7.5 |
Get YG Crawler Drilling Rig Spec Sheets & Model Pricing
Philippine Client Mining Exploration Project Background And Deep Drilling Needs
The client runs a large engineering and mining exploration project in the Philippines. Their work site has complex soil layers, thick mud, and hard bedrock. To plan deep construction and analyze deep mineral resources, they must get solid rock cores from hundreds of meters down.
Previously, they used old mechanical machines, but the working speed was too slow for deep holes. They faced serious problems like borehole collapse, low core recovery, and insufficient lifting power. They needed a reliable crawler drilling rig that could handle difficult soil conditions and deep drilling. Our hydraulic machine solved these problems by providing stable rotation, strong pulling force, and excellent soil testing compatibility.
Get Your Mining Exploration Project Deep Drilling Solutions
Why Philippines Client Chooses YG Drilling Equipment
There are many drilling machine suppliers, but the Philippines client chose YG for several clear reasons.
- Advanced Hydraulic System: The full hydraulic transmission offers step-less speed regulation. It keeps the drilling process very stable with low vibration, which protects the core samples from breaking.

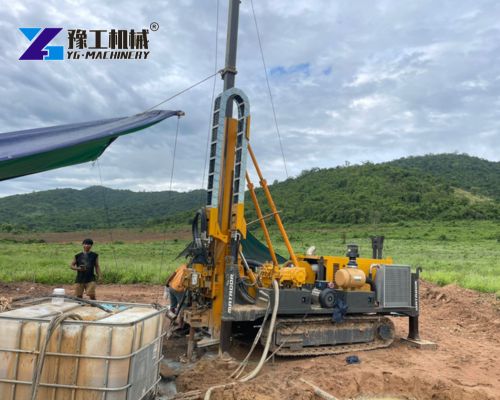

- Heavy Steel Crawler Chassis: The YG-800 model comes with a standard steel crawler chassis. It provides excellent stability on muddy mining sites and rough hills in the Philippines.

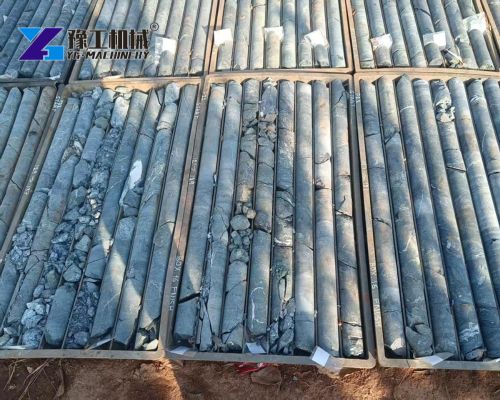

- High Efficiency Wireline Process: YG thin-wall diamond wireline coring tools reduce cutting resistance. This allows the machine to drill faster and achieve a very high core recovery rate in deep holes.
- Easy Mast Operation: The telescopic mast structure eliminates the need for an extra drilling tower. This design makes transportation and site setup incredibly fast and simple.
Ask YG Engineers to Solve Your Drilling Problems Today
Crawler Drilling Rig Manufacturer-YG Manufacturer
YG always focuses on building the most durable crawler drilling rig for global mining and construction fields. Our factory uses top-grade steel and famous hydraulic parts to ensure a long machine lifespan.
Every single crawler drilling rig must pass strict quality tests before leaving our factory. We simulate real working conditions to check the mud pump, pressure gauge, and hydraulic power head. This strict control guarantees that when the machine arrives in the Philippines or any other country, it can start working immediately without any mechanical faults.
Excellent Care And Support For Global Engineering Projects
Great products must come with great services. YG provides full lifecycle support for every crawler drilling rig we sell.
- Professional Consulting: We help clients choose the right model based on their target depth and soil types. For example, we recommend NQ/HQ tools for rock or automatic SPT configurations for soft soil layers.
- Fast Delivery Arrangement: We work with international shipping lines to send the crawler drilling rig safely to major ports in the Philippines, ensuring all tools are packed properly.
- Clear Technical Guidance: We provide detailed operation videos, manuals, and online engineering support. Customers can easily learn how to level the machine, dig the mud pit, and connect the mud pump.
- Long Term Parts Supply: We maintain a large stock of drill rods, casing pipes, diamond bits, and inner tubes so customers can get replacements quickly.
Download YG Crawler Drilling Rig Catalog
Contact YG to Upgrade Your Project Today
Ready to boost your deep exploration efficiency? YG provides the most reliable crawler drilling rig to handle tough ground conditions. We deliver complete engineering success with premium tools and lifelong technical support. Contact the YG team now for a free consultation, catalog, and factory price quote. Get your perfect crawler drilling rig solution today!
