When you start a new drilling project, choosing the right equipment is the most important step. Many professionals face the same question: crawler vs. truck-mounted water well drilling rigs, which one should I buy? Both types have fans, but they work best in different places. As a professional manufacturer, we want to help you understand the real value of a crawler borehole drilling machine compared to truck-mounted versions.
Small Water Well Drilling Rigs Specifications
| Model | YG180 | YG240 | YG350 | YG280 | YG500 |
| Voltage | 220V | 220V | 380V | gasoline/diesel | 380V |
| Power | 1.5-2kw | 4kw | 3kw | 8HP | 5.5kw |
| Drilling hole | 80-200mm | 80-220mm | 80-350mm | 80-280mm | 80-500mm |
| Drilling depth | 80M | 100M | 100M | 120M | 120M |
| Drilling rod | Φ42mm,1.5m | Φ51mm,1.5m | Φ51mm,1.5m | Φ51mm,1.5m | Φ65mm,2m |
| Pump power | 2.2kw | 2.2kw | 2.2kw | 3.5HP | 5.5kw |
| Dimension | 0.7*0.7*2.5m | 0.7*0.7*2.5m | 0.8*0.8*2.7m | 0.8*0.8*2.7m | 1*1.5*2m |
| Weight | 120KG | 150KG | 250KG | 200KG | 600KG |
Key Differences in Mobility and Terrain
The biggest difference in the crawler and truck-mounted water well drilling rigs debate is how they move. Truck-mounted rigs are great for long distances on smooth highways. However, once you leave the road, things change.

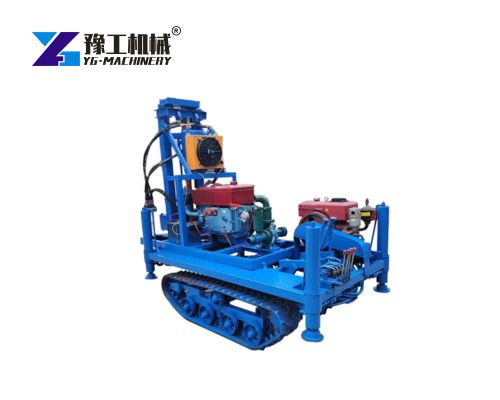

Our crawler rigs use a remote-control crawler chassis. This means you can move the machine into tight spaces or onto soft, muddy ground where a truck would get stuck. It provides a stable “foundation” for the drill, similar to how a building needs a solid base.
Performance and Stability of Crawler Borehole Drilling Machine
A high-quality crawler borehole drilling machine is built for stability and precision. Our rigs feature a full hydraulic transmission system. This layout is very flexible and light, making it easier to maintain than mechanical truck rigs.
· Stable Drilling: The hydraulic system allows for stepless speed control. This means you get a very smooth drilling process with very low vibration.
· Safety Features: Operators can monitor the pressure in real-time to understand what is happening inside the hole. This includes pressure protection to keep the team safe.
· Mast Design: We use a telescopic mast structure. You don’t need a separate drilling tower, which makes moving and assembly much faster.
Is the Water Well Drilling Rig Right for Deep-hole Exploration
If you are looking for a water well drilling rig for sale, you must look at the technical specs. For deep-hole exploration and complex ground, the hydraulic crawler rig is the top choice. It is designed to replace old mechanical rigs that are heavy and hard to use.
Our hot-selling models like the 400, 600, and 800 are built for different depths:
· YG-400: Can reach up to 400 meters with NTW tools.
· YG-600: Great for mid-range projects with a 1.9m stroke.
· YG-800: Comes standard with a steel crawler for maximum durability and a 2.4m stroke.
Efficiency of Truck Mounted Water Well Drilling Rig vs. Crawler
While a truck mounted water well drilling rig is fast on the road, the crawler rig is faster at the job site. Because our crawler rigs use a “touch-the-ground” multi-angle mast, you can set up and start drilling quickly.
We use thin-wall diamond wireline coring technology. This tech uses a “full, rigid, and straight” drill string system. It gives you:
· Fast Cutting: Thin-wall bits have low torque resistance, so they cut much faster.
· High Quality: You get high-quality, clean rock samples (cores).
· Low Risk: High core recovery rates mean fewer accidents and better safety for your crew.
Technical Parameters and Tooling Options
When comparing crawler vs. truck-mounted water well drilling Rigs, look at the versatility of the tools. Our crawler borehole drilling machine supports various wireline coring tools like NQ, HQ, and HTW.
| Specification | Bit OD (mm) | Core Dia (mm) | Reamer OD (mm) | Rod OD (mm) |
| NTW | 75 | 56 | 75.8 | 75.3 |
| HTW | 95 | 71 | 96 | 91.5 |
| HQ | 96 | 63.6 | 96 | 88.9 |
We also offer a Standard Penetration Test (SPT) configuration for soil layers. This adds more value to your machine, allowing you to test soil engineering properties while you drill.
Operational Flow for Maximum Productivity
To get the best results from your crawler borehole drilling machine, follow a professional workflow. First, level the ground to make sure the equipment is stable. Use a professional level to check the machine’s posture.
Next, install the casing. This is like the foundation of a house. Because surface soil is often soft, the casing prevents the hole from collapsing. Once the casing is in the bedrock, you can start formal drilling. Our system uses 1.5-meter drill rods that connect easily to the power head, making the cycle very efficient.
Get Premium Crawler & Truck-Mounted Drilling Rigs from YG Machinery
Choosing the right drilling rig is the key to project success. At YG Machinery, we combine advanced technology, years of manufacturing experience, and strict quality control to provide you with top-tier crawler and truck-mounted water well drilling rigs. We are ready to be your trusted partner for all your drilling needs. Reach out to our sales team today and let us help you boost efficiency and maximize profits!
