The standard DTH machine price typically ranges from tens of thousands to hundreds of thousands of yuan (around $20,000 to $90,000 USD), depending on your project needs. If you run a small construction site or a local water project, a basic model is often your best choice. These entry-level machines provide great stability without a massive upfront investment. Choosing the right design can save you thousands of dollars in transport costs alone.
YG Hot-sale DTH Borewell Machine Parameter
| Model | YGS100A | YGS153 | YGS180 | YGS300 | YGS350 |
| Total weight | 5.95T | 3.8T | 6.3T | 6.8T | 8T |
| Walking speed | 2.5km/h | 2.5km/h | 2.5km/h | 2.2/3.8km/h | 4km/h 2km/h |
| Diesel tank capacity | 85L | 70L | 85L | 85L | 225L |
| Shipping size | 6500*2100*2400mm | 4640*1980*2260mm | 6600*2110*2500mm | 6600*2220*2600mm | 7600*2350*2800mm |
| Drilling hole diameter | 90-146mm | 83-130mm | 90-146mm | 90-152mm | 90-165mm |
| Power configuration | YCD4R22T-80 | YC2108 33kw/2400rpm | YCD4R22T-80 55kw | YC4DK80-T302 | YC4DK100-T304 73.5kw/2200rpm |
| Highest horizontal hole height | 3.2m | 2.8m | 3.6m | 3.25m | 3.5m |
What Mobility Designs Are Available For Your Construction Site?
When you choose a basic down the hole drilling rig, you get an essential tool that handles straightforward soil and soft rock formations perfectly. You do not need to pay for extra heavy features if your daily job only requires simple bedrock drilling. Our factory offers two main structural designs to match different movement needs on your construction site.

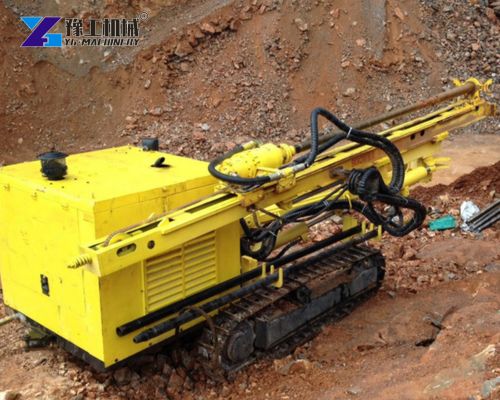

- Crawler Type: This option uses strong steel or rubber tracks to move across muddy, steep, and uneven ground easily. It climbs slopes without extra towing equipment.
- Wheel Type: This design allows you to tow the equipment quickly between different job sites using a standard truck. It is ideal for workers who change locations every few days.
Get a Free Quote & Product Catalog Now
What Design Factors Impact the DTH Machine Price For Deep Drilling?
Drilling hole capacity is a main factor that changes the DTH machine price. A machine that drills wider holes requires stronger steel structures, larger hydraulic pumps, and higher power configurations, which increases the manufacturing cost. As a factory, YG builds different levels of a DTH drilling machine to match various hole diameter requirements so you only pay for what your project actually needs.
If you choose a lightweight model with lower power for a wide-diameter hole, the machine will struggle and experience frequent wear. Conversely, buying a giant rig for tiny blast holes wastes your budget. We categorize our main equipment line into clear hole-diameter levels to help you make the right choice.
- 83mm – 130mm Hole Diameter Models: Excellent for small water wells and blast holes. These models, like our lightweight 3.8T rig, run efficiently on smaller 33kw engines to save energy.
- 90mm – 146mm Hole Diameter Models: The most popular choice for general farm irrigation and foundation piling. They use strong 55kw engines to provide the best balance between weight, power, and operational speed.
- 90mm – 165mm Hole Diameter Models: Built with heavy-duty YC4DK100 engines (73.5kw) and massive 8T frames to support wider drilling tools safely. They handle high-pressure demands easily without shaking.
Connect with YG Drilling Experts Today
Why Does Power Type Choice Change Your Total Cost?
The type of motor inside your equipment directly affects both the initial purchase cost and your daily running expenses. We offer two distinct power systems for every DTH borewell machine to fit your local energy availability and fuel budget. The power source determines how fast your drill rotates and how much weight the hydraulic pumps can lift.
Choosing the wrong power source can double your daily operating costs if fuel is expensive in your area. We provide flexible options so you can choose the engine that matches your local infrastructure.
- Diesel Engine Power: This system is perfect for remote mountains, forests, or open fields where electricity is unavailable. It offers high mobility and great torque but requires regular diesel fuel deliveries.
- Electric Motor Power: This system works beautifully if your site has a stable power grid connection. It lowers your daily energy costs significantly, requires less engine oil, and produces zero exhaust emissions.
- Dual Power System: This premium setup combines a diesel engine and an electric motor on the same chassis. You can use electric power to save money near cities and switch to diesel when you travel to remote areas.
Request Detailed Machine Specifications
How Does Air Compressor Matching Affect The Setup Price?
You cannot run a high-quality down the hole drilling rig without a proper air compressor. The air compressor pushes high-pressure air down the drill pipes to drive the impactor tool and blow the crushed rock dust out of the hole. The size, air flow volume, and pressure rating of this matching air compressor will change your final package price.
Many buyers forget that the drilling machine and the air compressor work as a team. If you buy a weak compressor, your drilling speed will drop dramatically even if you have a powerful rig.
- High-Pressure Compressors: These units crush hard granite rocks and deep quartz formations incredibly fast. They increase your daily speed but require a larger initial investment and more fuel.
- Low-Pressure Compressors: These units work great for soft soil, shale, and shallow water wells. They save you a lot of money on your initial purchase and keep your overall package price low.
What Are The Maintenance Benefits Of A Factory-Direct Machine?
When you buy directly from YG factory, you save money on long-term operations and replacement parts. Our engineering team designs each DTH drilling machine with simple mechanical layouts instead of overly complex computer systems. This smart design means you do not need expensive specialized technicians or high-tech tools to keep the equipment running smoothly.
A low purchase price means nothing if the machine breaks down every week. We focus on building reliable machines that run for years with basic routine care.
- Low Energy Use: The optimized hydraulic valve system reduces power waste and keeps the hydraulic oil cool during long working hours in hot weather.
- Fewer Wearing Parts: We use induction-hardened steel for all high-friction joints and mast guides to prevent frequent breakdowns and structural wear.
- Easy Part Replacement: You can find our standard hydraulic seals, hoses, and fuel filters in almost any local hardware store, which eliminates long waiting times for shipping.
