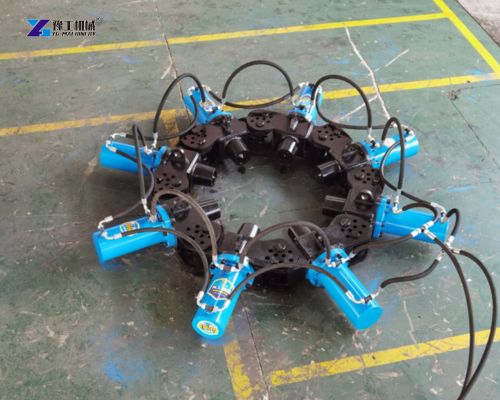

A hydraulic pile breaker is a highly efficient machine used in modern construction. It crushes foundation piles quickly without damaging the underground steel rebar. YG designs these machines with modular links. You can connect or remove these links to match the exact size of your concrete piles.

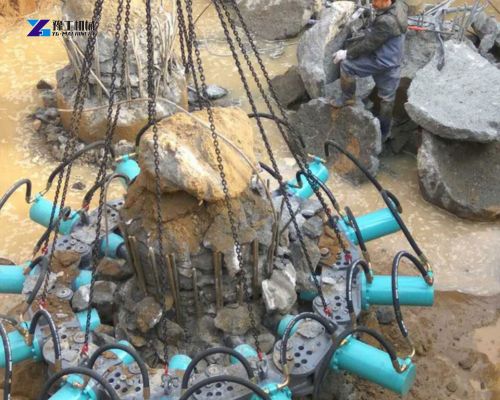

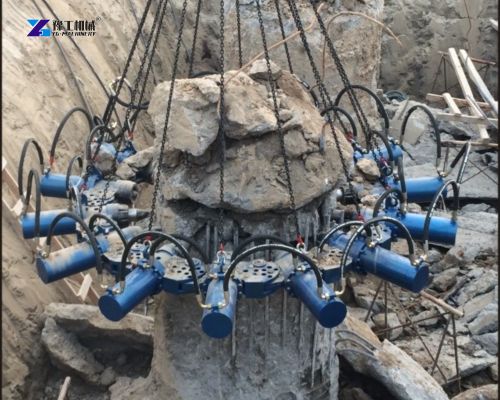

The working process is very simple. You connect the tool to an excavator or a hydraulic pump station. When the hydraulic system sends oil to the cylinders, the concrete pile cutting machine squeezes the pile from all sides. The immense pressure breaks the concrete into small pieces within minutes.
Which Hydraulic Pile Breaker Models Fit Your Excavator Best?
We offer different configurations to match your specific carrier fleet. You can adjust the number of modules from 4 pieces up to 18 pieces. Please check our official YG production data and modular configuration matrix below to find the right fit for your project needs:
| Module Number | PCS | 4 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 |
| Combination of the total weight | KG | 1600 | 2640 | 2970 | 3300 | 3630 | 3960 | 4290 | 4620 | 4950 | 5280 | 5610 | 5940 |
| Pile diameter range | mm | 400-600 | 600-800 | 800-1000 | 1000-1150 | 1150-1300 | 1300-1500 | 1500-1650 | 1650-1800 | 1800-1970 | 1970-2200 | 2200-2360 | 2360-2500 |
| Hydraulic excavator | T | 20T-30T | 30T-40T | Hydraulic system/pump station | |||||||||
| Max.Thrust | 300KN | Max.Cylinder required | 20L/min | Machinery Tonnage | ≥20T | Location pinΦ35 | |||||||
Technical Note: Every single module uses a strong Location pinΦ35 to ensure stability during heavy operations.
Why Should You Invest In A Modular Concrete Pile Cutter?
Choosing a high-quality concrete pile cutter saves you a lot of time and labor costs on the construction site. Traditional manual breaking takes hours and creates too much noise. Our advanced pile breaking machine changes the game completely.
Here are the main benefits of using this equipment:
- High Speed: It breaks one pile in just a few minutes, which is much faster than manual air jacks.
- Low Noise: The hydraulic system works quietly, making it perfect for city construction projects.
- Safe Operation: Workers control the machine from the excavator cabin, which keeps them away from falling concrete pieces.
- Clean Cut: It leaves a perfectly flat surface and keeps the inner steel rebar completely safe.

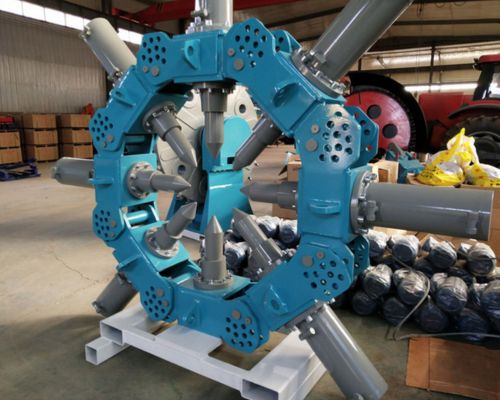

What Factors Decide The Final Hydraulic Pile Breaker Price?
When you plan your budget, you need to understand what changes the final cost of a hydraulic pile breaker. The overall price depends heavily on the scale of your project and the size of the concrete piles you need to cut.
- Number of Modules: A small setup with 4 modules for 400-600mm piles costs less than a large 18-module setup built for 2500mm piles.
- Excavator Requirements: Larger systems weigh up to 5940 KG and require a 30T-40T excavator, which affects your total setup setup cost.
- Hydraulic System Power: All our models require a minimum pump flow of 20L/min and deliver a massive 300KN max thrust. High-quality hydraulic cylinders add great value to the machine lifetime.
How To Operate A Concrete Pile Cutting Machine Safely?
Operating a concrete pile cutting machine is very straightforward, but operators must follow basic safety rules to get the best results. Proper handling extends the life of the machine and keeps your job site efficient.
- Check the Connections: Always check the Location pinΦ35 on each module before you start lifting the equipment.
- Align the Center: Lower the concrete pile breaker slowly over the pile. Make sure the cutting teeth align perfectly with the concrete surface.
- Control the Pressure: Start the hydraulic pump station and let the oil flow reach the required 20L/min. Apply pressure steadily until the concrete cracks.
- Move to the Next Section: Release the pressure, lift the machine slightly, and crush the next section until you reach the desired height.
How To Maintain Your Equipment For A Longer Service Life?
Regular maintenance prevents unexpected breakdowns and keeps your equipment running smoothly every day. Because this machine works in dusty, heavy-duty environments, a little daily care goes a long way.
- Daily Lubrication: Add grease to the joints and moving parts every day to reduce friction.
- Clean the Teeth: Remove concrete dust and small rocks from the crushing teeth after every shift.
- Check for Hydraulic Leaks: Inspect the hydraulic hoses and cylinders regularly to make sure there are no oil leaks.
- Tighten the Pins: Ensure all location pins are tight and secure before you attach the machine to your excavator.
If you need a reliable machine that offers great value for your money, YG is here to help. Contact our team today to get the exact configuration and detailed pricing for your next project.
