In today’s mining, road construction, and construction waste management sectors, mobile rock crushers have evolved from “supplementary equipment” to “core production assets.” With their rapid deployment and flexible configuration, they have helped countless projects shorten construction timelines and reduce costs. Widely used in the construction, mining, road construction, and recycling industries, these machines enable users to crush rock, concrete, and other materials directly on-site. If you are interested in portable rock crusher for sale, contact us for more information.
YG Portable Rock Crusher Specification
| Model | 800×800 | 800×1000 | 1000×1200 | 1200×1200 | 1200×1500 | 1400×1500 |
| Motor Power | 80kw×4G | 110kw×4G | 132kw×4G | 160kw×4G | 185kw×4G | 250kw×4G |
| Diesel Power | 195HP | 195HP | 260HP | 330HP | 330HP | 400HP |
| Hopper | 3500×1800×8mm | 3600×2200×8mm | 3600×2200×8mm | 3800×2200×8mm | 3800×2200×8mm | 4000×2400×10mm |
| Hammerhead Weight | 15kg | 15kg | 20kg | 36kg | 36kg | 55kg |
| Total Weight | 10t | 12.5t | 14t | 19t | 21t | 26t |
| Belt | 7×0.8m | 8×0.8m | 8×1m | 8×1m | 8×1m | 9×1m |
| Belt Conveyor Power | 5.5kw | 5.5kw | 7.5kw | 7.5kw | 7.5kw | 7.5kw |
| Tyre Model-Number | 110×8pcs | 110×8pcs | 110×8pcs | 1000×12pcs | 1100×12pcs | 110×12pcs |
| Sand Capacity | 30t | 45t | 55t | 65t | 80t | 100t |
| Stone Capacity | 50t | 70t | 80t | 90t | 120t | 180t |
| Overall Size | 102.83.5m | 112.83.5m | 11.52.83.5m | 1233.6m | 1233.6m | 133.23.7m |
Expert Advice: If your project site has a reliable power supply, prioritize electric-driven or dual-power models, as they can save significant fuel costs in the long run. If your worksites change frequently and are far from the power grid, focus on the compatibility between diesel engine power (HP) and electric motor power to ensure that power does not become a bottleneck for production capacity.
At a Glance of YG Portable Stone Crusher Configuration Features
The “mobile” nature of portable rock crusher for sale requires that their chassis, tires, and structural components undergo special reinforcement. Every piece of data in the specifications table is critical to the equipment’s survivability under complex operating conditions.
Mobile Crusher Machine Tires and Axles
- 800×1000 Model: Equipped with 8 tires of size 1100, with a total weight of 12.5 tons, making it suitable for towing and relocation on standard roads.
- 1200×1500 Model: Upgraded to 12 tires of size 1100, with a total weight of 21 tons. The increased number of tires not only distributes ground pressure but also ensures stability and safety on muddy and uneven work surfaces.
Portable Rock Crusher for Sale Overall Dimensions
The external dimensions of all models are kept within a range of approximately 11–13 meters in length, 3 meters in width, and 3.5–3.7 meters in height. This design allows the equipment to be transported via standard flatbed trailers on public roads without requiring an oversized transport permit, significantly reducing logistics and time costs associated with long-distance relocation.
Five Applications of YG Portable Rock Crusher for Sale

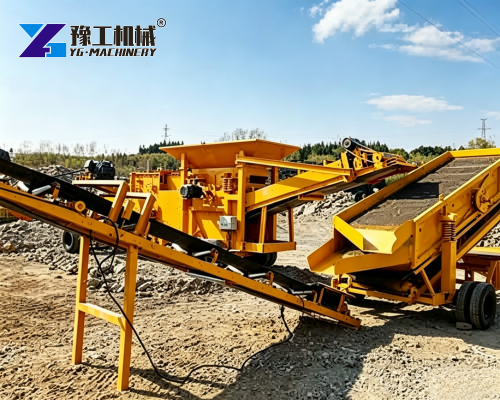

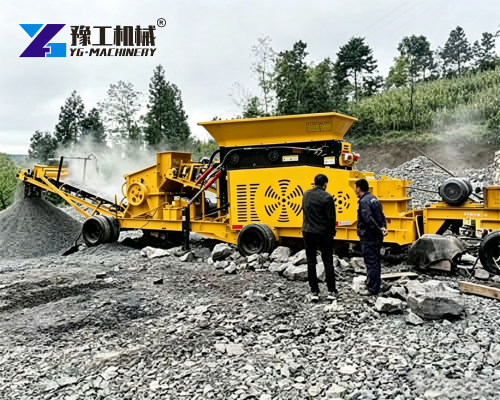

- Mining and Quarries: For the extraction of hard rocks such as granite and basalt, the equipment must offer high throughput and reliability to meet the demands of high-intensity continuous operation.
- Construction Waste Processing: On-site crushing of concrete blocks, bricks, and tiles to produce aggregate for road subbase. Mini track-mounted crushers are ideal for operation in narrow urban spaces and cause minimal ground disturbance.
- Road Infrastructure: On-site processing of tunnel spoil and roadbed excavated material into sand and gravel. YG portable crusher models with dual-power configurations can flexibly handle off-grid conditions in remote areas, significantly reducing transportation costs.
- Industrial Waste Recycling: Processing industrial waste such as steel slag and mine tailings. Emphasis is placed on equipment sealing and dust containment to minimize environmental impact within the facility.
- Landscape and Agriculture: This compact portable rock crusher for sale is designed to crush cobblestones and natural stone, making it ideal for landscape design and the installation of agricultural drainage layers. Its compact size allows it to easily access courtyards and farms for operation.
YG Portable Crusher Manufacturer
As a leading manufacturer of portable crushers, YG Machinery is dedicated to providing reliable, high-performance portable rock crushers for sale. Whether you need a compact unit for on-site crushing or a mobile solution for multi-site projects, our portable crushers are built to meet your needs. If you’re interested in our portable crushers, feel free to contact us for more details.
