A hydraulic rock splitter for sale is a powerful machine that breaks hard rock and concrete using hydraulic pressure. It works without explosives, loud noise, or strong vibration. This tool uses a simple wedge principle. You drill a hole in the rock, insert the splitting gun, and the hydraulic system pushes the wedges outward. The rock cracks from the inside within seconds.
This equipment is widely used in mining, quarrying, tunnel construction, and building demolition. It works well in city areas where blasting is banned. It produces low noise and zero flying debris. If you need a safe, fast, and silent rock-breaking method, a hydraulic rock splitter for sale from YG is your best choice.
Get a Quick Quote for YG Hydraulic Rock Splitter
YG Rock Splitters Parameters- OEM Support
YG offers three main models of hydraulic rock splitter for sale: YG-250, YG-350, and YG-450. Each model fits different project sizes and rock types.
| Model | YG-250 | YG-350 | YG-450 |
| Wedge Length(mm) | 250mm | 350mm | 450mm |
| Piston Stroke(mm) | 90/220mm | 90/220mm | 90/220mm |
| Drilling Depth(mm) | >500mm | >700mm | >900mm |
| Punching Diameter(mm) | 42mm | 46mm | 46mm |
| Crack Width(mm) | 10-20mm | 10-20mm | 10-20mm |
| Cleavage Time(s) | 10-15/s | 10-15/s | 10-15/s |
| Splitting Force(T) | 500t | 800t | 800t |
| Weight(kg) | 240kg | 250kg | 260kg |
These specifications help you choose the right hydraulic rock splitter for sale for your job. The longer the wedge, the deeper you can drill. The deeper the hole, the bigger the rock you can crack. YG also provides custom configurations to match your specific work conditions.
How Does a Hydraulic Splitter for Rock Work?
Understanding the working principle helps you operate your hydraulic splitter for rock more efficiently.
The machine uses the fact that rock has high compressive strength but low tensile strength. This means rock is hard to crush from the outside but easy to pull apart from the inside.
Working Steps:
- Drill a hole – Use a rock drill to create a hole of the correct diameter (42-55mm) and depth (>500mm).
- Insert the splitting gun – Place the gun into the hole. The gun contains a central wedge and two counter wedges.
- Apply hydraulic pressure – The pump station sends high-pressure oil to the cylinder. This pushes the central wedge forward .
- Wedges expand – The central wedge forces the two counter wedges outward. They press against the hole walls with huge force.
- Rock cracks – The rock splits along the drilling direction within 10-15 seconds.

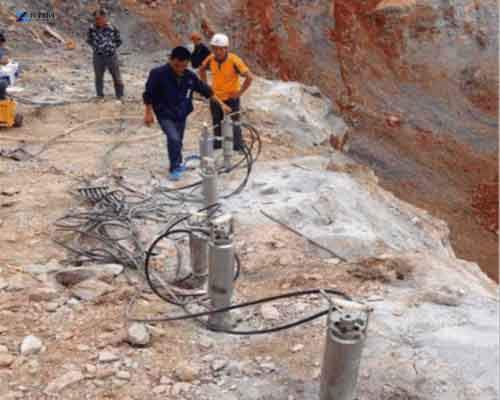

This method is simple and fast. One operator can handle multiple splitting guns at the same time using a multi-valve distributor. With a hydraulic rock splitter for sale, you can crack up to 50 rocks per hour, depending on your drill pattern .
What Makes a Good Hydraulic Concrete Splitter?
YG’s hydraulic concrete splitter is not just for natural rocks. It also works perfectly on reinforced concrete structures. A quality hydraulic concrete splitter should deliver consistent power and reliability.
Key Features to Look For:
- High splitting force – at least 500 tons for hard materials
- Fast cycle time – 10-15 seconds per split
- Low maintenance – durable wedges with special heat treatment
- Flexible power options – electric or diesel pump stations
- Multiple gun support – run 2-6 guns from one pump
The hydraulic concrete splitter from YG is ideal for projects where noise and vibration must be limited. This includes hospital renovations, school demolitions, and downtown construction sites.
Why Choose YG Hydraulic Rock Splitter for Sale?
YG Machinery is a professional manufacturer with decades of experience in rock-breaking equipment. Every hydraulic rock splitter for sale from YG undergoes strict quality control.
Key Advantages of YG Rock Splitters:
High Splitting Force: Our splitters deliver up to 800 tons of force. This breaks even the hardest granite and basalt.
Fast Cycle Time: Each split takes only 10-15 seconds. You can complete projects much faster than using jackhammers.
Low Noise & No Vibration: Work in noise-sensitive areas without complaints. No flyrock means safer job sites.
Multiple Power Options: Choose electric or diesel pump stations. Electric models work indoors. Diesel models work in remote sites .
Durable Construction: Our wedges use special heat treatment. They last longer and reduce your replacement costs.
Easy Operation: Simple controls mean less training time. One worker can manage multiple guns.
Flexible Configurations: We offer 2 to 6 splitting guns per pump station. More guns mean higher productivity.
Where to Use a Hydraulic Splitter for Rock
A hydraulic splitter for rock has many applications across different industries. Here are the most common uses:
Building and Foundation Work
- Break concrete walls, floors, and columns
- Remove old foundations and footings
- Excavate basements in tight city spaces
Mining and Quarrying
- Extract natural stone like granite and marble
- Split large boulders after blasting
- Work in areas where blasting is not allowed
Tunnel and Underground Projects
- Excavate rock for subway tunnels
- Enlarge existing tunnels
- Work in confined spaces with low clearance
Road and Bridge Construction
- Break concrete pavement
- Remove bridge piers and abutments
- Trench for utility lines
Underwater and Special Applications
- Split rocks underwater for port construction
- Work in heritage sites with strict rules
- Demolish structures in hospitals and schools
The equipment works in all these settings because it produces no vibration, dust, or flying debris .
Real-World Results: Save Time and Money
Many customers who bought a hydraulic rock splitter for sale from YG report huge savings. Here is what they experience:
- 50-70% faster than jackhammer breaking
- Up to 80% less noise and vibration
- Zero blasting permits needed in most cities
- No flyrock means no safety zones required
- Lower labor costs – fewer workers needed
- No dust means cleaner site and healthier workers
One customer in the USA used our splitter for a granite excavation. He finished the job 5 days early. He saved $15,000 in labor and equipment rental costs. Another customer in Saudi Arabia used our splitters for trenching. They completed 300 meters of trench in just one week.
Request YG Technical Support and Quote
How to Select the Right Hydraulic Rock Splitter
Choosing the correct hydraulic rock splitter for sale depends on your job needs. Here are key factors to consider:
1. Rock Type and Hardness
- Soft rock (limestone, sandstone): YG-250 is enough
- Hard rock (granite, basalt): YG-350 or YG-450 is better
- Very hard rock (quartzite): Choose the largest model
2. Project Scale
- Small projects (foundations, small demo): 2-3 splitting guns
- Medium projects (road works, tunneling): 4-5 guns
- Large projects (quarries, mines): 6 or more guns
3. Power Source Availability
- Sites with electricity: electric pump station
- Remote sites without power: diesel pump station
- Mixed sites: both options available
4. Drill Equipment You Have
- Check your drill hole diameter. It must match the splitter gun size.
- YG splitters accept 42mm, 46mm, or 55mm holes.
- Deeper drilling allows splitting larger rocks.
5. Job Site Restrictions
- Noise limits? YG splitters are quiet.
- Vibration limits? Our splitters are vibration-free.
- Space constraints? Compact splitter guns fit tight spots .
Safety Tips for Operating Hydraulic Rock Splitters
Using a hydraulic rock splitter for sale is generally safe. But you should follow these rules:
- Wear safety glasses – protect eyes from small rock chips
- Check hoses regularly – look for wear or leaks
- Release pressure before moving – always depressurize hoses
- Keep clear of splitting area – stand behind the safety zone
- Use correct hole depth – too shallow causes poor splitting
- Inspect wedges often – worn wedges reduce force
- Train operators well – know the controls before starting
FAQ
Q1: What is the splitting force of YG hydraulic rock splitter?
A: YG rock splitters offer 500 tons for model YG-250 and 800 tons for models YG-350 and YG-450. This force is enough to split granite, basalt, and reinforced concrete .
Q2: What power options are available for hydraulic rock splitter for sale?
A: YG offers both electric and diesel pump stations. Electric pumps work best for indoor or urban sites. Diesel pumps are ideal for remote mines or construction sites without power access .
Q3: How many splitting guns can one pump station run?
A: YG pump stations can run 2 to 6 splitting guns at the same time. The standard configuration for international customers is 4-5 guns. More guns mean higher production rates .
Q4: What hole size is needed for YG rock splitter?
A: YG-250 needs a 42mm hole. YG-350 and YG-450 need a 46mm hole. The drilling depth must be more than 500mm for YG-250, 700mm for YG-350, and 900mm for YG-450 .
Q5: How long does one split take?
A: Each split takes only 10-15 seconds. A full cycle includes inserting the gun, splitting the rock, and moving to the next hole. You can split 30-50 rocks per hour with proper setup .
About YG Machinery – Your Trusted Supplier
YG Machinery is a leading manufacturer of hydraulic rock splitters. We have over 20 years of experience in design, production, and export. Every machine is built to international quality standards.
Our factory uses advanced heat treatment for all wedges. This extends the life of each splitting gun. We also offer custom configurations to meet your project needs.
We ship worldwide with fast delivery. Our team provides technical support, installation guides, and after-sales service. We are committed to helping you get the most from your hydraulic rock splitter for sale.
Choose YG for quality, reliability, and value. Contact us today to get your product specifications and price list.
