Choosing the right drilling method is critical to controlling costs, speeding up schedules and delivering reliable geological data in mineral exploration. RC drilling and diamond drilling are the two most popular techniques for African and South American mining projects. RC drilling delivers fast, low-cost bulk sampling for early-stage regional screening, while diamond drilling provides precise core samples for deep ore body evaluation and reserve estimation. Pick the optimal solution to maximize your project ROI. YG provides reliable, cost-tailored drilling services to fit your exploration budget and targets.
What Is RC Drilling and How Does It Work?
RC (Reverse Circulation) drilling is a highly efficient, cost-effective method used in modern mineral exploration for early-stage site surveys and bulk sampling. Its core advantage lies in its dual-wall drill pipe design, which forces high-pressure air down the rod and flushes pure rock chips back up through an inner tube. This prevents contamination from the borehole wall, ensuring highly accurate geological samples.

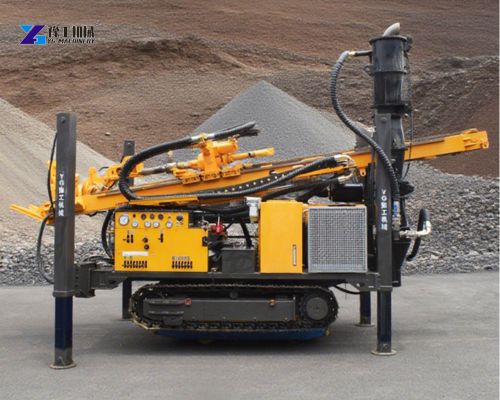

How the RC Rig Works
An RC drill rig consists of a drill bit, dual-wall drill pipes, an air compressor, and a sample collector. The continuous sampling process follows four clean steps:
- Air Injection: The compressor pumps high-pressure air down the outer gap between the double-layer drill pipes.
- Rock Crushing: The rotating drill bit crushes the underground rock into uniform chips.
- Sample Return: The high-pressure air forces these rock chips back up to the surface through the inner pipe.
- Collection: The sample collector filters and stores the clean chips, ready for immediate laboratory analysis.
Why it matters: By routing samples exclusively through the inner pipe, RC drilling eliminates outside contamination while maintaining fast, stable drilling speeds in shallow to medium depths.
What Is Diamond Drilling and Its Core Advantages?
Diamond drilling is a high-precision core drilling method essential for advanced exploration and ore body confirmation. Unlike methods that crush rock into chips, it uses a diamond-embedded drill bit to cut out intact, cylindrical rock cores. While slower and more expensive, its primary goal is gathering the most accurate underground geological data—such as detailed rock structures, layer thickness, and fracture conditions—that fragmented samples cannot provide.
Key Advantages
- Complete Core Samples: Collects intact rock cores that allow geologists to directly observe rock textures, mineral distribution, and structural changes for precise reserve calculations.
- Ultra-Deep Capacity: Reaches depths up to 200 meters, penetrating hard rock layers like granite and basalt that other drilling methods cannot handle.
- High Adaptability: Performs stably across complex geological environments, successfully retrieving high-quality samples from hard, broken, or deep ore zones.
RC Drilling Vs Diamond Drilling: Main Differences
Choosing between RC drilling and diamond drilling depends on project budget, exploration stage and data accuracy requirements. The two methods have obvious differences in core performance, which fit different exploration scenarios.
Sample Type and Usage
RC drilling provides small broken rock chips. These samples are mainly used for rapid geochemical analysis and preliminary mineral screening. They help teams quickly judge whether the site has mineral development value. Diamond drilling provides complete rock cores for in-depth geological structure analysis and precise ore body evaluation.
Construction Efficiency
RC drilling has simple operation and fast drilling speed. It is suitable for large-area and large-volume preliminary exploration work. Diamond drilling requires slow and precise cutting. Its construction progress is slow, so it is only used for key target area verification.
Project Cost
The per-meter cost of RC drilling is far lower. It is the best choice for budget-limited preliminary exploration. Diamond drilling needs expensive diamond drill bits and precise equipment. Its overall investment is high, only suitable for key projects requiring high precision.
Drilling Depth Range
RC drilling is suitable for shallow and medium-depth exploration within 500 meters. It meets the needs of most open-pit mine surveys. Diamond drilling supports ultra-deep drilling, perfectly matching deep underground mineral exploration work.
How To Choose Between RC Drilling And Diamond Drilling
Reasonable selection of drilling methods can balance project cost and exploration effect. For most mineral exploration projects, the two methods can be used in stages to maximize benefits.
Choose RC drilling if your project is in the early exploration stage. You need to survey large areas quickly, screen potential mineral sites and control project costs. It is also the first choice for open-pit mine grade control and conventional shallow geological sampling.
Choose diamond drilling if you have found potential ore-bearing areas. You need to confirm ore body scale, analyze rock structure details and calculate accurate mineral reserves. It is also necessary for deep exploration projects exceeding 500 meters and high-precision geological research work.
