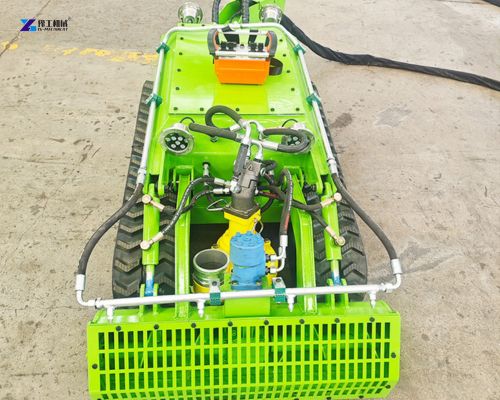

A sewer cleaning robot is a remote-controlled machine built to clean underground pipes without human entry. It uses crawler tracks to move through pipelines. A high-pressure pump removes sludge and debris. A wireless remote control lets operators stay above ground. Underwater LED lights provide clear vision inside dark pipes.
The robot includes a reeling system that manages hydraulic hoses. The standard hose length is sufficient for most municipal and industrial applications. The hydraulic system maintains steady pressure for reliable operation.
Key components of this sewer cleaning robot:
- Crawler chassis for stable movement on wet and slippery surfaces
- Hydraulic pump system with flow rates matching different job requirements
- Underwater LED lights for clear visibility in dark or deep-water conditions
- Wireless remote control for safe distance operation
- Reeling system for automatic hose storage and management
YG Series Sewer Cleaning Robot – Model Overview
The YG series offers multiple models. Each model is designed for a specific pipe width range. This allows you to select the right machine for your pipeline size.
| Model | YG-500 | YG-600 | YG-700 | YG-800 | YG-900 | YG-1200 |
| Robot dimensions | 1500*500*650mm | 1500*600*650mm | 1600*700*650mm | 1600*850*700mm | 1650*960*750mm | 1900*1200*750mm |
| Dredging width | 500mm | 600mm | 700mm | 800mm | 900mm | 1200mm |
| Track travel speed | 3-15m/s | 3-15m/s | 3-15m/s | 3-15m/s | 3-15m/s | 3-15m/s |
| Robot weight | 320kg | 350kg | 380kg | 400kg | 420kg | 500kg |
| Pump output diameter | 3inch | 3inch | 4inch | 4inch | 4inch | 4inch |
| Pump flow rate(cubic meters/ hour) | 100 m³ | 100m³ | 200m³ | 200m³ | 200m³ | 200m³ |
| Hydraulic station dimensions(mm) | 2200*1200*1700 | 2200*1200*1700 | 2200*1200*1700 | 2200*1200*1700 | 2200*1200*1700 | 2120*1240*1200 |
| Main motor power | 22kw | 22kw | 30kw | 30kw | 30kw | 45kw |
| Hydraulic system pressure | 0-16Mpa | |||||
| Particle size | 15mm | 15mm | 38mm | 38mm | 38mm | 60mm |
| Reeling system speed | 0-10r/min | |||||
| Hydraulic hoses | 50m (Standard configuration) | |||||
| Control system | Wireless remote control | |||||
| Lighting system | Underwater LED lights *2 | |||||
Common features across all YG models:
- Crawler travel speed adjustable for thorough cleaning
- Hydraulic system pressure suitable for heavy sludge removal
- Wireless remote control for safe operation
- Underwater LED lights for improved visibility
- Reeling system for hose management
Get YG Series Model Recommendations
How to Choose the Right Sewer Cleaning Robot Model
Choosing the correct sewer cleaning robot depends on your pipe width, sludge type, and operating conditions. The YG series offers options for different needs.
Selection factors to consider
- Pipe diameter – Match the robot’s dredging width to your pipe size. Smaller pipes need compact models. Larger pipes require wider robots for full coverage.
- Sludge consistency – Some jobs involve heavy sediment. Others have oily or greasy waste. Different pump configurations handle these variations.
- Operating distance – Standard hose lengths work for most projects. Longer distances may need custom setups.
- Power availability – Choose between electric or diesel-powered hydraulic stations based on your worksite.
Which Model Fits Your Job
- YG-500 (500mm) – For small municipal pipes and narrow drains
- YG-600 (600mm) – For standard urban sewer lines
- YG-700 (700mm) – For medium-sized industrial pipelines
- YG-800 (800mm) – For larger main sewers
- YG-900 (900mm) – For big trunk lines
- YG-1200 (1200mm) – For extra-large pipes and storm drains
Underwater Dredging Robot – Designed for Submerged Conditions
An underwater dredging robot must operate reliably in fully flooded pipes. The YG series is built for this environment. The crawler tracks provide stable movement even on slippery bottoms. The underwater LED lights help operators see clearly in zero-visibility water.
The hydraulic system delivers steady power to the pump and tracks. This ensures consistent performance in wet conditions. The pump output diameter is sized to move large volumes of sludge without clogging.
Why the YG Series Works Well Underwater?
- Sealed hydraulic components protect against water damage
- Crawler design prevents slipping on wet or sloped surfaces
- Bright LED lighting improves camera visibility in dark water
- Wireless control remains reliable even when the robot is fully submerged
Ask About Underwater Dredging Robot Models
Robotic Dredge – Powerful Pumping for Heavy Sediment
A robotic dredge needs strong pumping capacity to remove compacted sludge. The YG series delivers this with flow rates that match different job sizes. The pump removes sediment continuously while the robot moves through the pipe.
The pump can handle solid particles of various sizes. Smaller models work well with fine sediment. Larger models can pass bigger debris without clogging. This flexibility makes the YG series suitable for both municipal and industrial applications.
Benefits of the YG Robotic Dredge
- Removes compacted sludge in a single pass
- Reduces cleaning time compared to traditional methods
- Works in pipes of various widths from narrow to extra-large
- Handles different particle sizes without frequent clogging
Sludge Cleaning Robot – Built for Industrial Environments
A sludge cleaning robot must handle tough conditions in industrial settings. Chemical plants, food processing facilities, and power stations all need reliable sludge removal. The YG series is designed for these demanding environments.
The robot can break down oil, grease, and chemical residues. It operates in confined spaces where human entry is unsafe. The heavy-duty construction ensures long service life even with continuous use.
Where this Sludge Cleaning Robot is Most Useful
- Chemical plant wastewater lines with corrosive materials
- Food processing drainage containing organic waste and grease
- Paper mill sludge pipes with fibrous solids
- Power station cooling water systems with mineral deposits
Common Features Across All YG Models
Every sewer cleaning robot in the YG series shares these standard features:
- Wireless remote control – operator stays above ground at all times
- Underwater LED lights – clear view inside dark pipes
- Hydraulic hoses – standard length included with each unit
- Reeling system – automatic hose management
- Hydraulic system pressure – stable output for consistent performance
These shared features make training and maintenance simple. Operators learn one control system and can use any model in the series. Spare parts are interchangeable across most models, reducing inventory costs.
Safety Benefits of Using Robotic Cleaning Solutions
Safety is the primary reason to use a sewer cleaning robot. Manual sewer cleaning is one of the most dangerous jobs worldwide. Workers face toxic gases, low oxygen, and physical hazards.
Robots eliminate these risks entirely. Operators control the machine from above ground. The camera system provides clear visuals without exposing anyone to danger. The wireless remote control works from a safe distance.
Key safety advantages:
- Zero human entry into pipes or manholes
- Remote operation keeps workers out of hazardous zones
- LED lighting improves visibility and reduces errors
- Stable crawler tracks prevent accidents in slippery conditions
Real-World Applications for YG Series Sewer Cleaning Robots
Municipal Sewer Maintenance
Cities use YG series robots for routine sewer cleaning. The robots remove grease, sediment, and debris that cause blockages. Regular cleaning prevents flooding and reduces emergency repairs.
Industrial Wastewater Treatment
Factories choose YG robots for their wastewater lines. The robots clear chemical residues and organic waste. This keeps treatment systems running smoothly and prevents environmental violations.
Storm Drain Cleaning
Storm drains collect large amounts of sediment and debris. YG robots with larger dredging widths handle these jobs efficiently. The powerful pump removes heavy materials without clogging.
Sewage Pumping Stations
Pumping stations need regular sludge removal to maintain flow. YG robots can operate in these wet environments. The underwater lighting and camera system allow precise cleaning.
Request Application-Specific Recommendation
Packaging, Delivery, and Support
Each sewer cleaning robot is securely packed for international shipping. The robot body and hydraulic station are packaged separately to prevent damage. Standard delivery times are typical for heavy equipment of this type.
What is included with each unit:
- Robot body with crawler tracks
- Hydraulic station with motor
- Hydraulic hoses (standard length)
- Wireless remote control unit
- Underwater LED lights (2 units)
- Reeling system
- Operation manual in English
We provide warranty coverage on the main motor and hydraulic system. Technical support is available via email, phone, or video call. Spare parts are stocked for quick shipment.
