For a homeowner, a long power outage is more than just inconvenient. It means food spoiling in the refrigerator, heating or cooling systems shutting down, and security systems going offline. A water-cooled diesel generator is the most reliable, heavy-duty solution to protect your home. In this guide, we will help you understand why a liquid-cooled system in the 10KW to 30kW range is the best choice for modern household backup power.

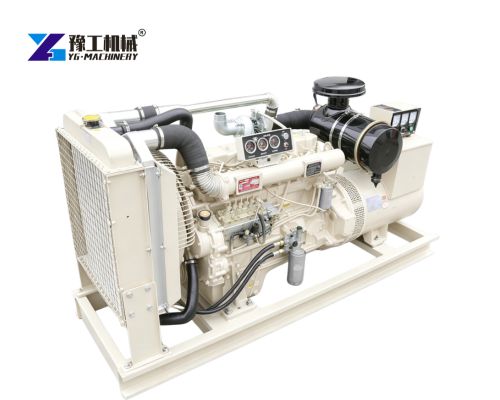

YG Hot-sale Water-Cooled Whole-House Generator Specifications
| Parameter | 10kW | 15kW | 20kW | 24kW | 30kW |
| Cylinders | 1 cylinder | 1 cylinder | 1 cylinder | 1 cylinder | 4 cylinders |
| Voltage | 400/230V | 400/230V | 400/230V | 400/230V | 400/230V |
| Frequency | 50Hz | 50Hz | 50Hz | 50Hz | 50Hz |
| Rotating Speed | 1500rpm | 1500rpm | 1500rpm | 1500rpm | 1500rpm |
| Bore × Stroke (mm) | 115×115 | 115×115 | 125×120 | 130×120 | 100×115 |
| Rated Current | 18A | 27A | 36A | 43.2A | 54A |
| Phase & Wiring | Three-phase four-wire | Three-phase four-wire | Three-phase four-wire | Three-phase four-wire | 3-Phase 4-Wire |
Is A Liquid-Cooled Generator Worth It?
When shopping for home backup power, you will see many cheap options. However, investing in a liquid cooled standby generator is the only way to get true peace of mind. Unlike portable units that run on loud, fast-spinning engines, these systems use a liquid coolant (water and antifreeze) to keep the engine at a stable temperature.
For a busy household, a water-cooled whole-house generator in the 10kW-30kW range is absolutely worth it due to these key family-friendly benefits:
- Runs All Essential Home Appliances: A 10kW to 30kW unit easily powers your central air conditioner, kitchen refrigerator, electric oven, water heater, and family computer systems at the same time.
- Super Quiet Operation: Because the engine is surrounded by liquid jackets and enclosed in our acoustic, weather-proof canopy, it runs at just 62-65 dB(A) at 7 meters. This is as quiet as a normal conversation, meaning your family and neighbors can sleep peacefully.
- Complete Safety and Auto-Start: Our home systems integrate with an Automatic Transfer Switch (ATS). When the municipal grid fails, the generator starts automatically in less than 10 seconds. You do not have to go outside in the rain to pull-start a motor.
- Unmatched Fuel Safety: Diesel fuel is much less flammable than petrol (gasoline) or propane, making it much safer to store in your backyard or garage tank.
Get Home Generator Pricing & Selection Guide
What Is The Difference Between Air-Cooled And Water Cooled Diesel Generators?
Before you install a backup system in your backyard, you must understand how these two systems compare for daily home use.
| Household Feature | Air-Cooled Generators (Small Portable) | Water Cooled Diesel Generators (10kW-40kW) |
|---|---|---|
| Power Capacity | 2kW – 8kW (Not enough for AC/Pumps) | 10kW – 40kW (Full home coverage) |
| Noise Level | Loud (75dB+), sharp engine vibration | Quiet (62-65dB), smooth running sound |
| Continuous Run | 4 to 6 hours max (Must rest to cool down) | 24/7 continuous run during long storms |
| Engine Lifespan | 1,000 to 2,000 hours | 15,000+ hours (Lasts for decades) |

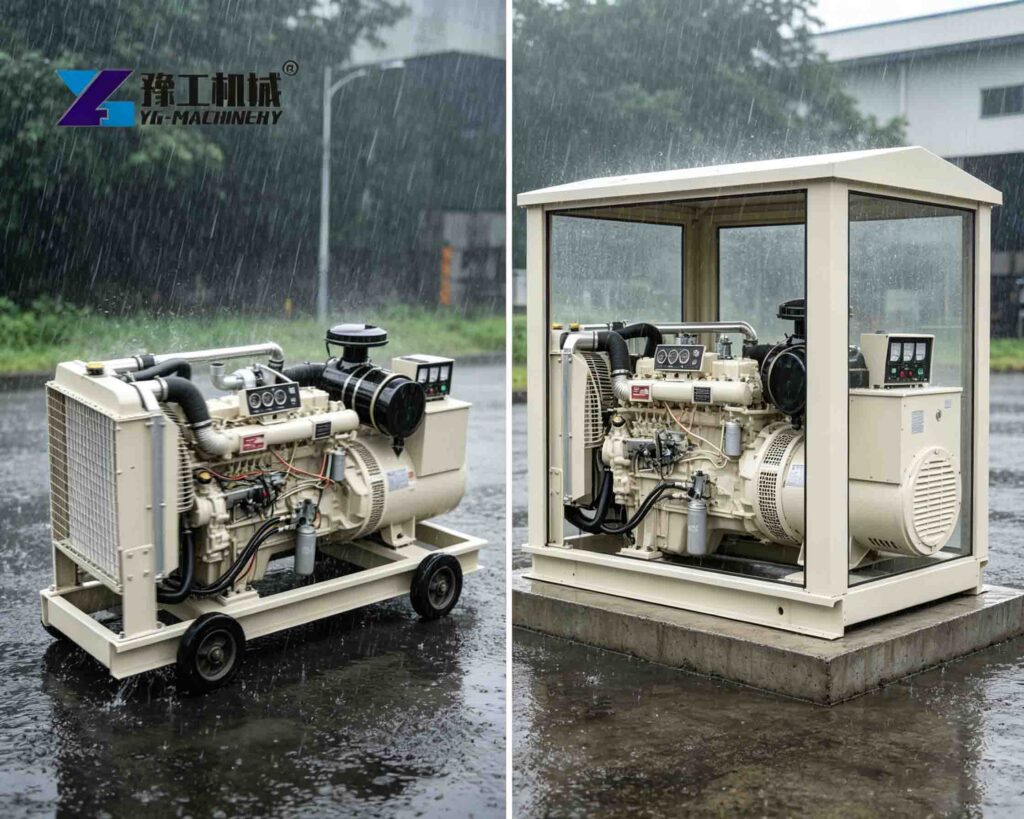

| Weather Protection | Needs dry cover, cannot run in heavy rain | Heavy-duty canopy, waterproof and rustproof |
Power Delivery and Family Life
An air-cooled unit will struggle and trip its breaker if you turn on the microwave while the air conditioner is running. A water cooled diesel generator has a heavy-duty, slow-running engine (1500 rpm or 1800 rpm). It provides stable, clean electricity (pure sine wave) that protects sensitive family electronics like laptops, smart TVs, and home security systems.
Lifespan and Long-Term Value
Air-cooled engines wear out quickly because they run hot. Our liquid cooled generators are built like car engines. They are liquid-cooled, heavily insulated, and designed to last for 20 to 30 years of occasional home emergency use.
Ask YG Expert: Which Size Do I Need for My House?
Cost-Benefit Of Liquid-Cooled Generators
While a liquid cooled standby generator costs more upfront than a portable petrol unit, the safety and financial benefits for your family are substantial.
1. Zero Property Damage
A single long winter power outage can freeze your water pipes, causing thousands of dollars in water damage. A reliable backup power system keeps your home warm, dry, and safe, protecting your valuable property investment.
2. Low Fuel Consumption and Easy Maintenance
Because our 10KW-30KW engines are highly efficient, they burn very little diesel. For a standard 24-hour blackout, you will spend far less on fuel compared to inefficient, smaller gasoline engines. Maintenance is simple: just check the oil level and coolant once a year, just like your family car.
3. Increased Home Resale Value

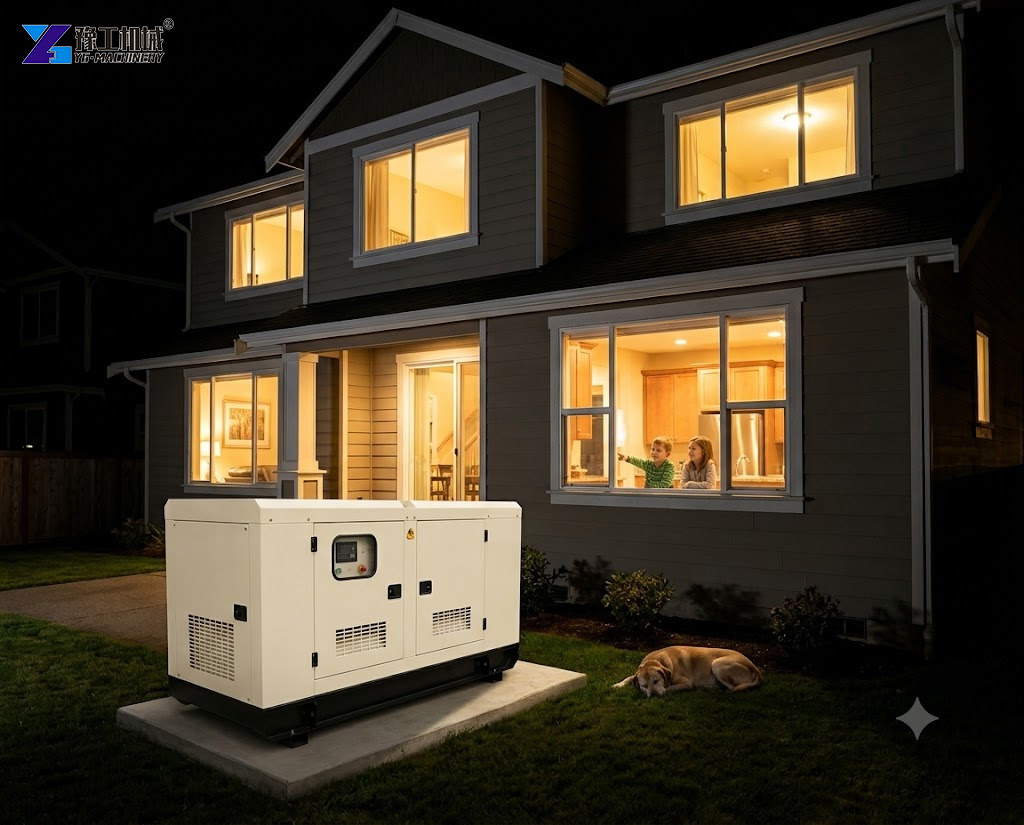

A professionally installed water cooled whole house generator increases the market value of your property. Buyers love seeing a premium, ready-to-use backup power system already wired into the house’s electrical panel.
Request a Custom Home Installation Quote
Alternatives
Here is how our liquid-cooled diesel systems compare to other common home backup methods:
- Portable Gasoline Generators: Cheaper to buy, but very loud, have short run times, and require you to store dangerous, highly-flammable petrol in your garage.
- Natural Gas / LPG Standby Generators: A good alternative if you have a local natural gas line. However, natural gas units often lose power efficiency over time, and a major earthquake or storm can disrupt the gas lines completely.
- Home Battery Storage (Solar Wall): Silent and green, but extremely expensive. A battery system that can run a whole home air conditioner for 24 hours can cost up to 4 times more than our diesel systems.
Get Factory-Direct MOQ & Home Delivery Details
Household Specifications And Easy Purchase Terms
We make it easy and safe for homeowners and residential property developers to buy directly from our factory:
- Perfect Home Sizes: Available in 10kW, 15kW, 20kW, and 30kW models (single-phase or three phase to match your home grid).
- Ultra-Silent Canopy: Weather-proof, rust-proof, and key-locked for child safety.
- Smart Control: Easy-to-use digital screen that shows fuel level, battery status, and voltage. Supports mobile phone app monitoring.
- Minimum Order Quantity (MOQ): 1 Unit. We support individual homeowners and local residential electricians.
- Packing and Delivery: Safely packed in a heavy-duty plywood crate to ensure it arrives at your driveway in perfect, brand-new condition.
- After-Sales Support: Easy-to-find replacement filters and 24/7 video installation support for your local electrician.
