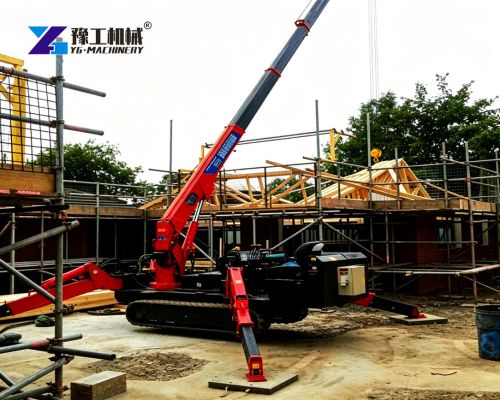

YG Machinery recently completed a successful deal of a high-quality mini spider crane to a client in Singapore. The Singapore customer needed an efficient and reliable lifting machine for indoor and narrow space installation work. They wanted a heavy-duty crane, but they had a strict budget limit. YG Machinery analyzed their exact lifting needs and provided a customized solution.
We helped them choose our advanced 5-ton capacity model with an extra 2-meter main boom extension. This smart option perfectly replaced their original expensive 8-ton plan. It saved a lot of money for the client while fully satisfying all their lifting parameters. The equipment arrived safely in Singapore and started working immediately, winning high praise from the customer.
Get A Free Quote For Your Project Today
Project Background And Customer Applications In Singapore

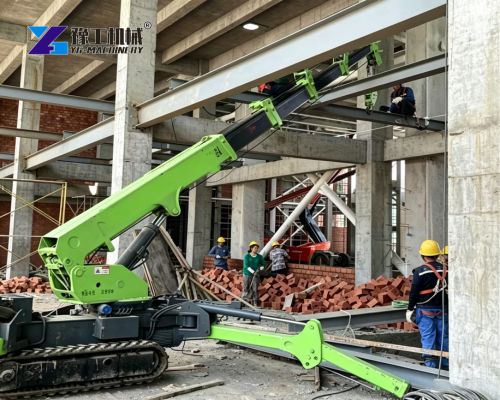

The urban development in Singapore requires modern construction machinery to work in highly crowded environments. Our customer operates a growing engineering installation business that handles glass facade installations, steel structure positioning, and indoor machinery maintenance. They faced specific project challenges that traditional large cranes could not solve:
- The work sites are often located inside narrow commercial corridors, tight basements, and backyard residential areas where big trucks cannot enter.
- The ground surfaces in Singapore indoor projects have strict floor weight load restrictions, preventing heavy machinery from driving inside.
- The client frequently handles materials that require precise positioning, meaning the crane must provide smooth control during winch operations.
- The materials they lift are not extremely heavy, but they need enough vertical reach to install parts onto high ceilings and second-story structures.
After using our small crawler crane for three weeks, the customer sent us wonderful operational feedback. They reported that the compact design allows the machine to pass through standard double doors easily. The rubber tracks protect the expensive indoor floor tiles from scratches. Most importantly, the crane operates with extreme stability on its adjustable outriggers, making their daily lifting tasks much safer and faster than before.
Contact YG Experts For The Best Crane Solution
Why Singapore Customers Choose YG Mini Spider Crane
Choosing the right machinery partner involves checking both product value and technical support. The Singapore customer selected our tracked mini crane over other international brands because of several distinct advantages:
- Perfect Budget Optimization: The client originally thought they had to buy a massive 8-ton crane to get enough boom length, which exceeded their financial budget. YG engineers calculated the actual lifting load weights and offered the YG-5t model plus a 2-meter boom extension. This saved them more than 30% in purchase costs.

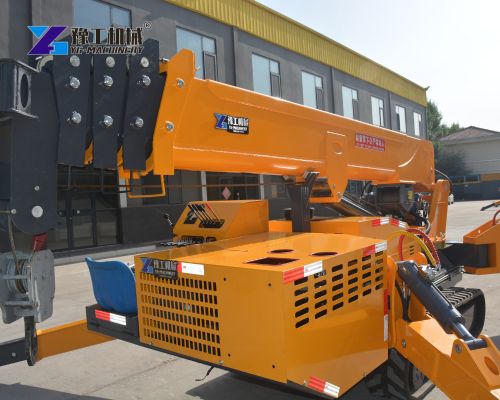

- Premium Component Quality: We use high-strength pentagonal structure steel for the lifting boom sections, ensuring excellent resistance to bending and shaking.
- Flexible Operating System: Our machine provides both manual control and an optional remote control system, which allows operators to stand at a safe distance with a clear view of the materials.
- Fast Worldwide Shipping: YG has strong logistics connections to the Singapore port, ensuring safe packaging, clear customs clearance documents, and very short delivery times.
Check The Latest Tracked Mini Crane Prices
YG Provides High Quality Mini Spider Crane Specifications
YG Machinery manufactures a complete series of compact cranes to fit different lifting requirements. We focus on premium structural materials, durable hydraulic systems, and precise safety overload valves. Below are the detailed engineering parameters of our popular models, including the 5t model bought by the Singapore client:
| Specification | 3t capacity | 5t capacity | 8t capacity |
| Maximum Working Radius | 8.83m × 0.15t | 14m × 0.5t | 16.5m |
| Maximum Above-Ground Head | 9.9m × 0.7t | 16.8m | 18m |
| Winch Hook Speed | 0-8m/min (4 rope) | 12m/min (4 rope) | 12m/min (4 rope) |
| Wire Rope Diameter | φ8mm × 45m | φ11mm × 80m | φ11mm × 80m |
| Boom Type | 5-section, pentagonal | 5-section, pentagonal | 5-section, pentagonal |
| Boom Length / Time | 3.1m – 9.2m / 20sec | 12.3m / 54sec | 12.3m / 54sec |
| Boom Angle / Time | 0° to 78° / 13sec | 0° to 78° / 13sec | 0° to 78° / 13sec |
| Slew Angle / Speed | 360° continuous / 60sec | 360° continuous / 38sec | 360° continuous / 38sec |
| Walking Way & Speed | Hydraulic / 0-2.5km/h | Hydraulic / 0-2.5km/h | Hydraulic / 0-2.5km/h |
| Grade Ability | 25° (36%) | 25° (36%) | 25° (36%) |
| Operation Characteristics | Manual + Remote Control | Manual + Remote Control | Manual + Remote Control |
| Transport Dimensions (L*W*H) | 2950 * 980 * 1560 mm | 5000 * 1500 * 1900 mm | 5000 * 1600 * 2180 mm |
| Total Machine Weight | 2700 kg | 6200 kg | 7200 kg |

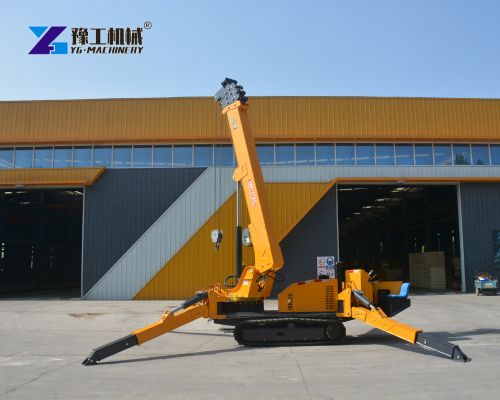

Our 5-ton model features a transport size of 5000mm length, 1500mm width, and 1900mm height. This size allows it to move smoothly through tight construction gates. The hydraulic walking system handles slopes up to 25 degrees easily, making it perfect for tough outdoor ground conditions. With the special pentagonal boom structure, the crane maintains a balanced lifting force, reducing structural wear during long working hours.
Download Technical Specification Catalogue
YG Thoughtful Services For International Clients
At YG Machinery, we believe that selling the crane is only the first step of our relationship. We provide a full package of professional services to guarantee that every international client can run their equipment without any trouble:
- Pre-Sale Technical Consultation: Our engineering experts look closely at your workspace measurements, maximum material weight, and budget lines to match the most cost-effective machinery setup.
- Strict Factory Inspection: Every crane undergoes intense load-bearing testing, continuous slewing trials, and remote control system checks before loading into shipping containers.
- Complete User Manuals and Videos: We deliver detailed English operational guides, safety instructions, and step-by-step video tutorials to help your operators learn quickly.
- Lifetime Online Technical Assistance: Our after-sales response team remains online 24/7 to solve operational questions, provide maintenance tips, and arrange quick delivery of original spare parts.
The Singapore client mentioned that our active communication and fast responses gave them great confidence. They felt fully supported throughout the entire process, from making the initial deposit to operating the machine on-site in Singapore.
