A small spider crane is built for lifting jobs where a conventional crane cannot easily enter. In the Top 8 Applications of small spider crane in Construction, indoor renovation, glass installation, rooftop work, steel erection, HVAC handling, utilities, building maintenance, and landscaping are especially common. YG models range from 3 to 8 tons, with working radii up to 16.5 m and lifting heights up to 18 m, depending on the model. Its compact crawler chassis and extendable outriggers make it practical for confined construction sites.
Request Small Spider Crane Pricing
Small Spider Crane Specifications: How to Choose the Right Model
Choosing a crane based only on its maximum lifting capacity can lead to the wrong purchase.
You should compare the load, working radius, lifting height, access width, machine weight, and operating environment together.
| Model | Rated Capacity | Max. Working Radius | Max. Above-Ground Head | Weight |
| YG-3 | 3 t | 8.83 m* | 9.9 m* | 2,700 kg |
| YG-5 | 5 t | 14 m* | 16.8 m | 6,200 kg |
| YG-8 | 8 t | 16.5 m | 18 m | 7,200 kg |
*YG’s published specifications show different load conditions for some YG-3 radius and height figures, so buyers should request the complete load chart for the actual lifting condition.
As a simple starting point:
- 3-ton model: indoor construction, glass work, maintenance, and lighter equipment
- 5-ton model: steel structures, commercial construction, and heavier equipment
- 8-ton model: heavier industrial and structural lifting applications
Request Small Spider Crane Pricing
1. Small Spider Crane for Indoor Construction
Indoor construction is one of the most useful applications for a small spider crane.
Shopping malls, factories, warehouses, hotels, and large commercial buildings often have limited access. A traditional mobile crane may simply be too large to enter the building.
A mini spider crane can move through relatively narrow access points and can be transported between floors when site conditions allow. YG’s 3-ton model weighs about 2,700 kg, making it considerably easier to handle in indoor projects than many conventional cranes.
Typical indoor lifting jobs include:
- Steel beams and frames
- Glass panels
- HVAC equipment
- Pumps and motors
- Building materials
- Machinery replacement
Get a Small Spider Crane Quote

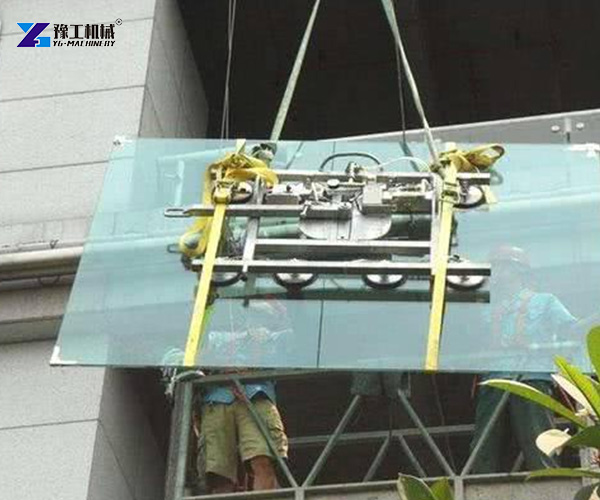

2. Mini Spider Crane for Glass and Curtain Wall Installation
Glass installation requires more than lifting capacity. Contractors also need accurate positioning, stable support, and sufficient working reach.
A mini spider crane can lift large glass panels to the required position while operating in areas where larger lifting equipment cannot be placed.
For example, YG’s 3-ton model has a maximum operating radius listed at 10.5 m, while its boom can extend from 3.1 m to 9.2 m. Optional equipment such as a hydraulic fly jib can also be configured for specific projects.
For overseas buyers, check the following before ordering:
- Glass panel weight
- Required lifting height
- Horizontal working radius
- Entrance width
- Required glass lifting attachment
Ask YG About Glass Installation Configuration

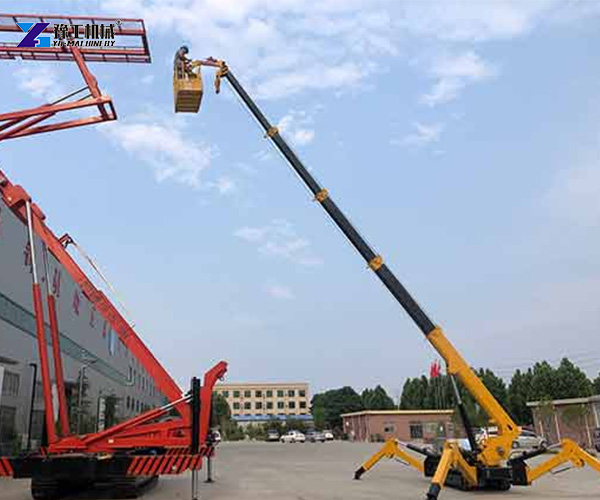

3. Mobile Spider Crane for Rooftop Construction
Rooftop projects often involve heavy components that cannot be moved safely by hand.
A mobile spider crane can be used for lifting air-conditioning units, solar equipment, steel components, generators, and other construction materials to elevated locations.
The key is not simply choosing the crane with the highest rated capacity. You need to check the load chart at the required working radius.
For example, the YG-5 is rated at 5 tons, with a listed maximum working radius of 14 m and maximum above-ground head of 16.8 m.
Before rooftop installation, confirm:
- Roof load capacity
- Crane operating position
- Outrigger space
- Load weight
- Lifting radius
- Wind conditions
Request Small Spider Crane Pricing

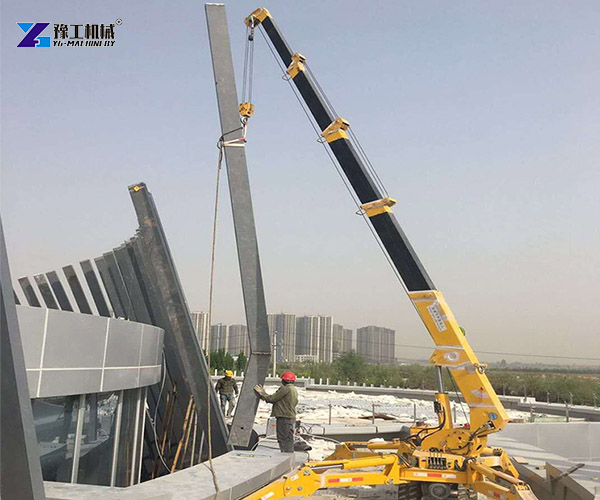

4. Small Spider Crane for Steel Structure Installation
Steel structure installation is another practical application.
Construction contractors may need to position steel columns, beams, frames, and other components inside factories or on restricted construction sites.
A small spider crane is useful because its telescopic boom provides both vertical lifting and horizontal reach. Its crawler chassis also allows it to reposition between lifting points.
For heavier steel components, buyers can consider larger models. YG currently lists 3-ton, 5-ton, and 8-ton crawler spider crane models. The YG-8 reaches a listed maximum working radius of 16.5 m and maximum above-ground head of 18 m.
The important point is to select the model according to the actual load chart, rather than the nominal tonnage alone.
Request a Model Recommendation
5. Mini Spider Crane for HVAC and Mechanical Equipment
Replacing or installing mechanical equipment can be difficult when the equipment is located inside an existing building.
Chillers, pumps, motors, generators, ventilation units, and other components may be too heavy for manual handling but impossible to reach with a standard crane.
A mini spider crane can position these components through doors, corridors, production areas, or other restricted spaces.
This makes it useful for both new construction and equipment replacement projects.
For maintenance contractors, the same crane can potentially be reused across multiple jobs instead of being dedicated to one construction project.
Request Small Spider Crane Pricing
6. Mobile Spider Crane for Electrical and Utility Work
Electrical and utility construction often takes place in areas with limited working space.
A mobile spider crane can assist with lifting transformers, utility equipment, communication components, and other heavy items.
YG’s 3-ton spider crane is specifically listed for utility and telecommunications applications, including lifting and installing utility poles, transformers, and telecommunications equipment.
For these projects, buyers should pay particular attention to:
- Ground conditions
- Outrigger positioning
- Required lifting radius
- Equipment weight
- Remote-control requirements
Remote operation can also help the operator maintain a better view of the load and surrounding work area when properly configured.
Request Small Spider Crane Pricing

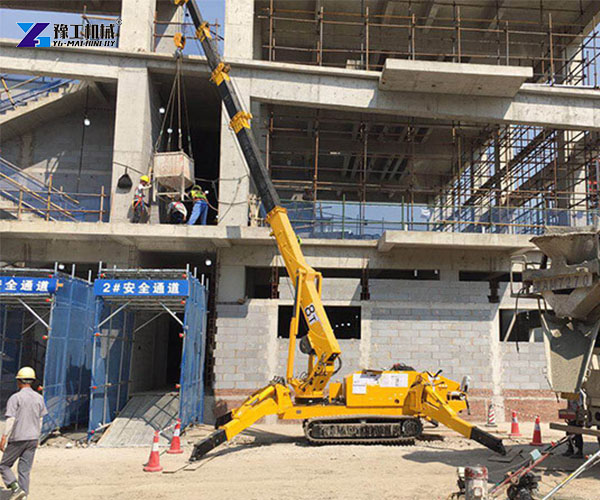

7. Small Spider Crane for Building Maintenance
Not every crane job is part of new construction.
Existing buildings regularly require facade repairs, glass replacement, roof maintenance, equipment replacement, and structural restoration.
This is where a small spider crane can be particularly useful. Its compact footprint can reduce the amount of space required for lifting operations compared with larger crane equipment.
YG describes its crawler spider crane as suitable for confined spaces and uneven terrain, with hydraulic crawler travel and extendable outriggers for lifting stability.
For maintenance contractors, portability and setup time can be just as important as lifting capacity.
Get a Factory Quote for Your Maintenance Project
8. Mini Spider Crane for Landscaping and Confined Sites
Landscaping projects may involve lifting stone, sculptures, large plants, decorative structures, or other heavy materials.
Many residential gardens, courtyards, parks, and restricted urban sites have narrow entrances and limited space for conventional cranes.
A mini spider crane can travel into these areas and position loads with its telescopic boom.
The crawler design is also useful when the working surface is uneven, although the site must still be checked carefully for ground bearing capacity and stability before operation. YG lists a gradeability of up to 25° (36%) for its crawler spider crane models.
